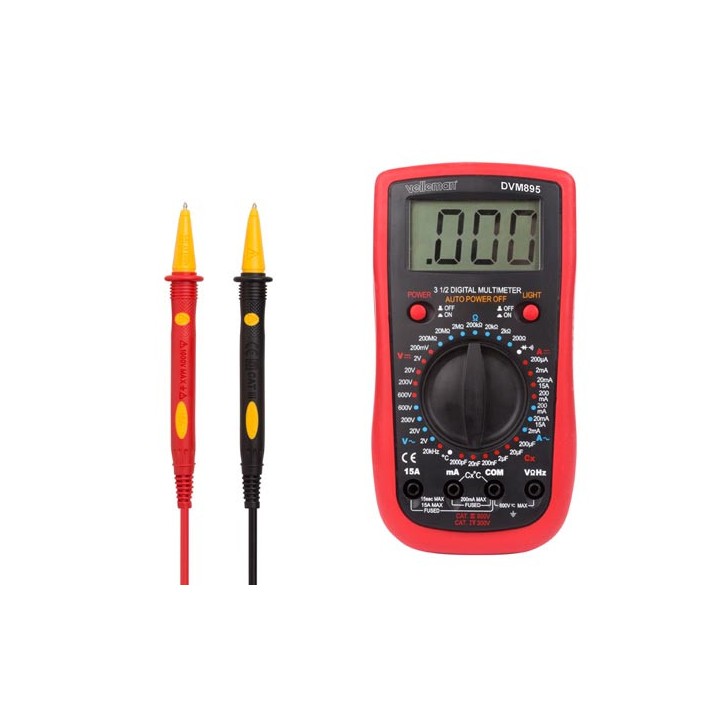

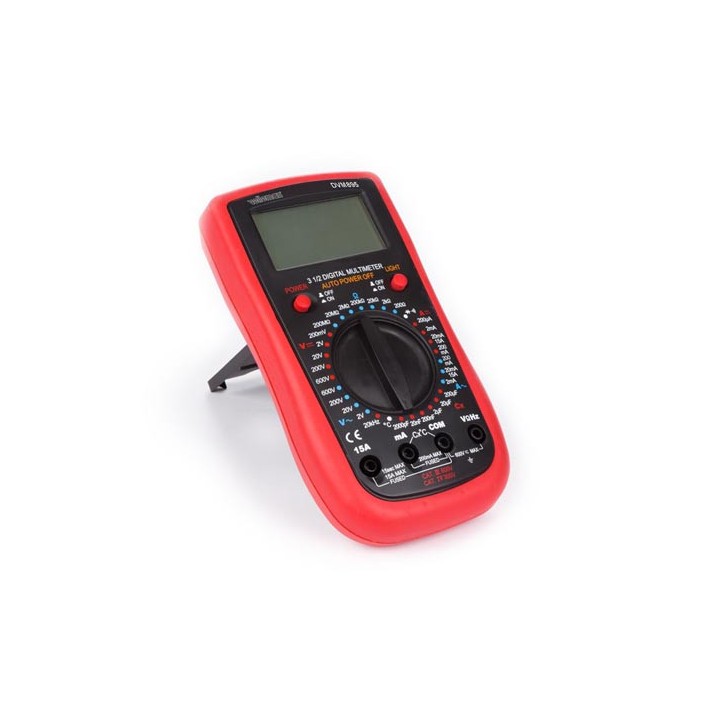

DIGITAL MULTIMETER - CAT. III 600V / CAT IV 300V - 1999 POINTS DVM895 automatic polarity indication
Multimeter digital lcd 3½ voltage current resistance temperature capacitance frequency measurement of diodes
Characteristics
CAT III 600V / CAT IV 300V
automatic polarity indication
automatic zero adjustment
voltage measurements: 600 VAC and 600 VDC max.
current measurements: DC 15 A and AC 15 A max.
resistance measurements: 200 MOhm max.
capacity measurements: 200 μF max.
thermocouple measuring range type K: -50 ° C to 800 ° C
frequency measurements: 20 kHz

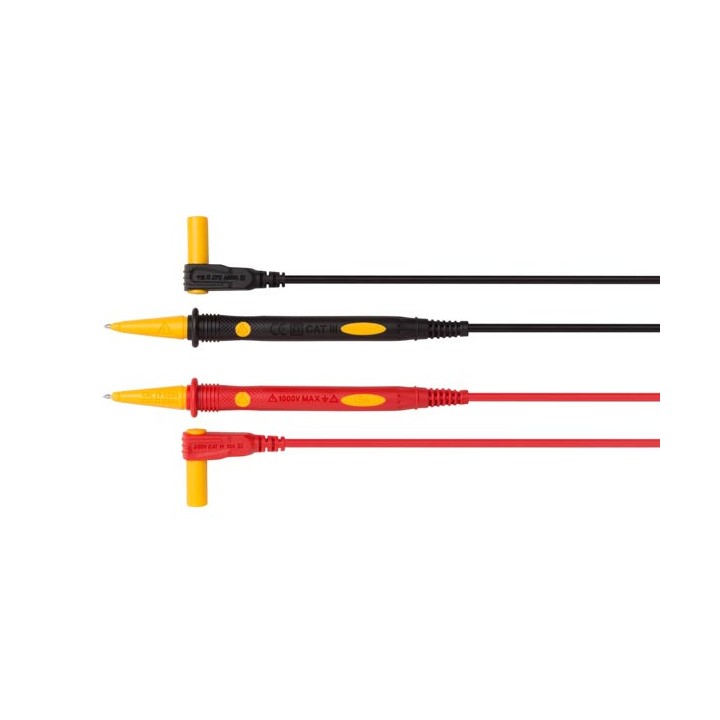

with separate test leads (incl.): TLM72: PVC MEASURING CORD SET - CAT IV 600 V - 15 A - 18 AWG - LENGTH 75 cm
degree of pollution 2
Specifications
DC voltage: 0-200mV / 2V / 20V / 200V / 600V
basic accuracy: ± (0.5% of reading + 2 digits), ± (0.8% of reading + 2 digits) for 600 V range
input impedance: 10 MOhm
input max .: 600 V
overload protection: 600V DC or AC rms
AC voltage: 0-2V / 20V / 200V / 600V
basic accuracy: ± (0.8% of reading + 3 digits), ± (1.2% of reading + 3 digits) for 600 V range
input impedance: 1MB for 2V range, 10MB for other ranges
frequency range: 40-500 Hz
Max input: 600 V DC or AC rms
DC current: 200 μA / 2 mA / 20 mA / 200 mA / 15 A
basic accuracy: ± (1.2% of reading + 2 digits), ± (1.5% of reading + 2 digits) for 200mA range, ± (2.0% of reading + 3 digits) for 15A range
overload protection: fuse 500 mA / 600 V, 15 A / 600 V
AC current: 2 mA / 20 mA / 200 mA / 15 A
basic accuracy: ± (1.5% of reading + 3 digits), ± (2.0% of reading + 3 digits) for 200mA range, ± (2.5% of reading + 5 digits) for 15A range
overload protection: fuse of 500 mA / 600 V, 15 A / 600 V
frequency range: 40-500 Hz
resistance: 0-200 Ohm / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm / 20 MOhm / 200 MOhm
basic accuracy: ± (1.0% of reading + 3 digits) for 200 Ohm range, ± (1.0% of reading + 2 digits) for range of 2 KOhm to 2 Mohm, ± (1.5% of reading + 3 digits) for 20 MOhm range, ± (5.0% of reading + 5 digits) for 200 MOhm range
overload protection: 600 VDC for AC rms
capacity: 2000 pF / 20 nF / 200 nF / 2 μF / 200 μF
basic accuracy: ± (2.5% of reading + 10 digits) for 2000 pF range, ± (2.5% of reading + 5 digits) for range of 20nF to 20 μF, ± (5.0% of reading + 10 digits) ) for 200 μF range
overload protection: 500 mA / 600 V fuse
temperature: -50-150 ° C / 150-800 ° C
basic accuracy: ± (3 ° C + 3 digits) for range of -50-150 ° C, ± (3% + 3 digits) for range of 150-800 ° C
overload protection: 500 mA / 600 V fuse
NiCr-NiSi sensor
K thermocouple probe: included
frequency: 20 kHz
basic accuracy: ± (2.0% of reading + 5 digits)
overload protection: 600 VDC or AC rms
sensitivity: sine wave 0.5 V rms
battery test: no
continuity buzzer: built-in buzzer retains when resistance is less than 50 Ohm
test voltage: ± 3 V
diode measurement: measures the direct voltage of the diodes
test voltage: ± 3 V (DC reverse voltage)
off-beach indication: yes
buzzer of continuity: yes
diode test: yes
low battery indication: yes
max display: 3 1/2
LCD display:
dimensions: 62 x 36 mm
figures: max. 1999
range selection: manual
data retention: no
backlight: yes
dimensions: 190 x 100 x 40 mm
weight (with battery): 300 g
power supply: 9V 6F22 (incl.)
automatic shutdown: yes
service environment:
temperature: 0 ° C to 40 ° C (32 to 104 ° F)
humidity: <80% (non-condensing)
storage environment:
temperature: -20 ° C to 60 ° C (-4 to 140 ° F)
humidity: <90% (non-condensing)
fuse:
F0.5 A / 600 V 5 x 20 mm
F15A / 600 V 5 x 20 mm
measuring probe: CAT III 1000V / CAT IV 600V, 15A, L = 75cm
IP rating: IP20
