Features * 6 000 counts LCD display with automatic polarity indication and settings information
* memory function for MIN/MAX values
* automatic or manual range
Dimensions: 85x180x45mm. Weight: 680gr Features
* 6 000 counts LCD display with automatic polarity indication and settings information
* memory function for MIN/MAX values
* automatic or manual range selection
* data hold function
* continuity and diode test
* optical standard RS232C/USB interface for PC connection
* white backlight
* relative measurement mode for all ranges except frequency
* comes with WindowsXP software, optical USB cable, thermocouple, battery, IEC1010 measuring cables and user manual
Specifications
* DC voltage: 0,6V / 6 / 60 / 600 / 1000V
o basic accuracy: ±( 0,5% of reading + 8 digits) for 0.6V range , ±(0.8%+5digits) for 6/60/600V range , ±(1%+10digits) for 1000V range
o input impedance: > 10Mohm
o maximum input: 1000V
* AC voltage: 0,6V / 6 / 60 / 600 / 700V
o basic accuracy: ±( 3% of reading + 3 digits) for 0.6V range , ±(1%+3digits) for 6/60/600V range , ±(1,5%+3digits) for 700V range
o input impedance: > 10Mohm
o frequency range: 40-400Hz
o maximum input: 700V
* DC current: 600uA / 6m / 60m / 600m / 6A / 10A
o basic accuracy: ±( 1,5% of reading + 3 digits) for 600u / 6mA range , ±(1,8%+5digits) for 60/600mA range , ±(2%+5digits) for 6/10A range
o overload protection: 10A/600V-fuse for 10A-range , 750mA/600V fuse for other ranges
* AC current: 600uA / 6m / 60m / 600m / 6A / 10A
o basic accuracy: ±( 1,8% of reading + 5 digits) for 600u / 6mA range , ±(2%+8digits) for 60/600mA range , ±(3%+8digits) for 6/10A range
o overload protection: 10A/600V-fuse for 10A-range , 750mA/600V fuse for other ranges
* resistance: 600 / 6k / 60k / 600k / 6M / 60M
o basic accuracy: ±( 0,5% of reading + 3 digits) for 600 Ohm range , ±(0,5%+2digits) for 6K...6M range , ±(1,5%+3digits) for 60Mohm range
o overload protection: 250Vdc or 250Vrms
* capacitance: 60nF/ 600nF / 6uF / 60uF / 300uF
o accuracy: ±( 3% of reading + 20 digits) for 60 nF range , ±(3%+10digits) for 600nF...60uF range , ±(5%+10digits) for 300 uF range
* inductance: -
o accuracy: -
* frequency: 99.99Hz / 999.9Hz / 9.999kHz / 99.99 kHz / 999.9 kHz
o basic accuracy: ±( 0,1% of reading + 3 digits)
o overload protection: 250V dc or 250V ac rms
* temperature: -55°C to 1000°C
o basic accuracy: -55°C to 0°C : ±( 5% of reading + 4 digits) . 0 to 400°C : ±(2%+3digits). 400 to 1000°C : ±(2% of reading)
* overrange: yes 'OL'
* continuity buzzer: yes
* transistor test: no
* diode test: yes
* low-battery indication: yes
* maximum display: 3 5/6
* LCD display size: -
* ranging mode: auto / manual
* data hold: yes
* backlight: yes
* dimensions: 85 x 180 x 45mm
* weight (with battery): ±300g
* power supply: 9V battery (incl.)
* packing: -

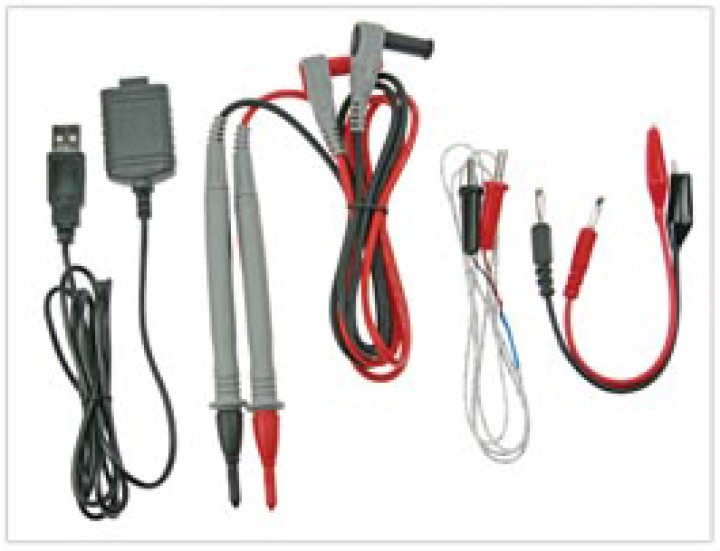

* accessories: user manual / test leads / battery / optical USB cable / PC-link software / K-type thermocouple
* auto power-off: selectable
