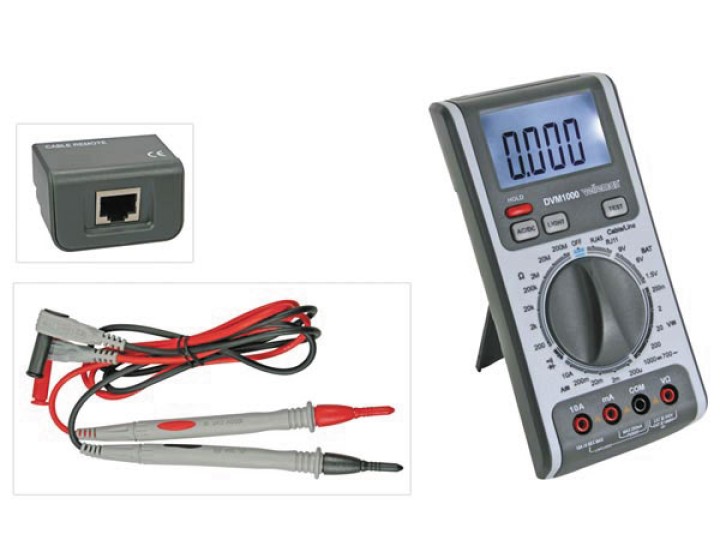

3 in 1 multimeter cable line tester

Features

the digital 3 in 1 multitester combines the functions of a multimeter, a phone line tester and a network cable tester
2 000 counts LCD display with automatic polarity indication
data hold function
continuity and diode test
white backlight
battery test: 1.5 / 6 / 9V
telephone line test
network cable test (RJ45)
Important safety information

Specifications

DC voltage: 0,2V / 2 / 20 / 200 / 1000V
basic accuracy: ±( 0.8% of rdg + 2 digits) , ±(1.2% + 3digits) for 1000V range
input impedance: > 10Mohm
maximum input: 1000V
AC voltage: 0,2V / 2 / 20 / 200 / 700V
basic accuracy: ±( 1,2% of reading + 3 digits) for 0.6V range , ±(0,8%+3digits) for 2/20/200V range , ±(1,2%+5digits) for 700V range
input impedance: > 10Mohm
frequency range: 40-400Hz
maximum input: 700V
DC current: 200uA / 2m / 20m / 200m / 10A
basic accuracy: ±( 0,8% of reading + 3 digits) for 200u / 2mA / 20mA range , ±(1,5%+2digits) for 200mA range , ±(2%+5digits) for 10A range
overload protection: 200mA/250V fuse for all ranges except 10A
AC current: 200uA / 2m / 20m / 200m / 10A
basic accuracy: ±( 2% of reading + 3 digits) for 200u / 2mA / 20mA range , ±(1,8%+3digits) for 200mA range , ±(3%+5digits) for 10A range
overload protection: 200mA/250V fuse for all ranges except 10A
resistance: 200 / 2k / 20k / 200k / 2M / 20M / 200M
basic accuracy: ±( 0,8% of reading + 3 digits) for 200 Ohm range , ±(0,8%+2digits) for 2K...20M range , ±(5%+10digits) for 200Mohm range
overload protection: 250Vdc or 250Vrms
capacitance: -
accuracy: -
inductance: -
accuracy: -
frequency: -
basic accuracy: -
overload protection: -
temperature: -
basic accuracy: -
overrange: yes '1.'
continuity buzzer: yes
transistor test: no
diode test: yes
low-battery indication: yes
maximum display: 1999
LCD display size: 15mm
ranging mode: manual
data hold: yes
backlight: yes
dimensions: 85 x 185 x 45mm
weight (with battery): ±360g
power supply: 9V battery (incl.)
packing: -
accessories: user manual / test leads / battery / remote box for cable testing
auto power-off: no
