REF : CD830
Features
* automatic polarity function
* low-battery indication
* transistor and diode test
* voltage measurements: AC 750V and DC...

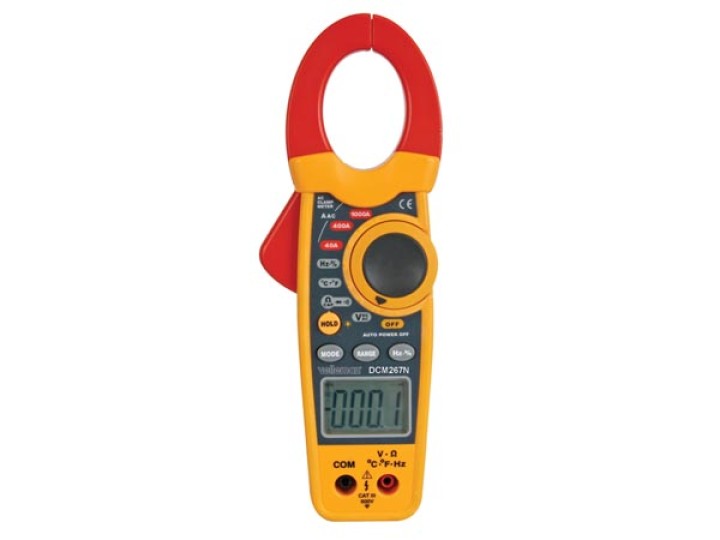

REF : DCM267N
Features * LCD display with automatic polarity indication * data-hold function * DCV (max. 600V) and ACV (max. 600V) measurements * ACA (max. 1000A) current measurements * m
Emplacement : R2E6()R2E1
Features
* LCD display with automatic polarity indication
* data-hold function
* DCV (max. 600V) and ACV (max. 600V) measurements
* ACA (max. 1000A) current measurements
* max. O for conductor: 30mm
* resistance measurements: max. 40Mohm
* frequency measurements: max. 10MHz
* temperature measurements: -50°C to 1,000°C
* diode test, continuity test and backlight
* K-type thermocouple measuring range: from -20°C to 1000°C
* optional probes (not incl.): SONDE890, SONDE8264
* duty cycle measurements: 0.5 to 99% @ pulse width of 100µs to 100ms
* capacitance measurement: max. 100µF
* safety: indoor use only (overvoltage Cat. II 600V)
* Important safety information
Specifications
* DC voltage: 0.4/4/40/400/600V
o basic accuracy: ±(1.5% of rdg + 3 digits) / ±(0.8% of rdg + 3 digits) for 0.4V range / ±(2.0% of rdg + 3 digits) for 600V range
o input impedance: 7.8Mohm
o maximum input: 600V
* AC voltage: 0.4/4/40/400/600V
o basic accuracy: ±(1.8% of rdg + 5 digits) / ±(0.8% of rdg + 20 digits) for 0.4V range / ±(2.5% of rdg + 5 digits) for 600V range
o input impedance: 7.8Mohm
o frequency range: 50-60Hz
o maximum input: 600V
* DC current: -
o basic accuracy: -
o overload protection: -
* AC current: 40/400/1000A (max. line voltage 240V)
o basic accuracy: ±(2.5% of rdg + 10 digits) for 40A range / ±(2.5% of rdg + 5 digits) for 400A range / ±(3.0% of rdg + 4 digits) for 1000A range
o overload protection: -
* resistance: 400/4K/40K/400K/4M/40M
o basic accuracy: ±(1.0% of rdg + 4 digits) for 400ohm range / ±(1.5% of rdg + 2 digits) for 4K~400K range / ±(2.5% of rdg + 3 digits) for 4M range / ±(3.5% of rdg + 5 digits) for 40M range
o overload protection: 15s max. 250V (all ranges)
* capacitance: 40n/400n/4µ/40µ/100µF
o accuracy: ±(5.0% of rdg + 100 digits) for 40nF range / ±(3.0% of rdg + 5 digits) for 400nF range / ±(3.5% of rdg + 5 digits) for 4µ~40µF range / ±(5.0% of rdg + 5 digits) for 100µF range
* inductance: -
o accuracy: -
* frequency: 5.000Hz/50.00Hz/500.0Hz/5.000KHz/50.00KHz/500.0KHz/5MHz/10.00MHz
o basic accuracy: ±(1.2% of rdg + 2 digits) / ±(1.5% of rdg + 5 digits) for 5Hz range / ±(1.5% of rdg + 10 digits) for 5MHz~10MHz range
o overload protection: 15s max. 250V (all ranges)
* temperature: -50°C-1,000°C
o basic accuracy: ±(3.0% of rdg + 5°C)
* overrange: yes 'OL'
* continuity buzzer: yes
* transistor test: -
* diode test: yes
* low-battery indication: yes
* maximum display: 3999
* LCD display size: 22 x 35 mm
* ranging mode: auto/manual
* data hold: yes
* backlight: yes
* dimensions: 229 x 80 x 49mm
* weight: ±303g
* power supply: 1 x 9V battery (incl.)
* packaging: box
* accessories: manual / test leads / thermocouple / battery / carrying case
* auto power-off: yes
