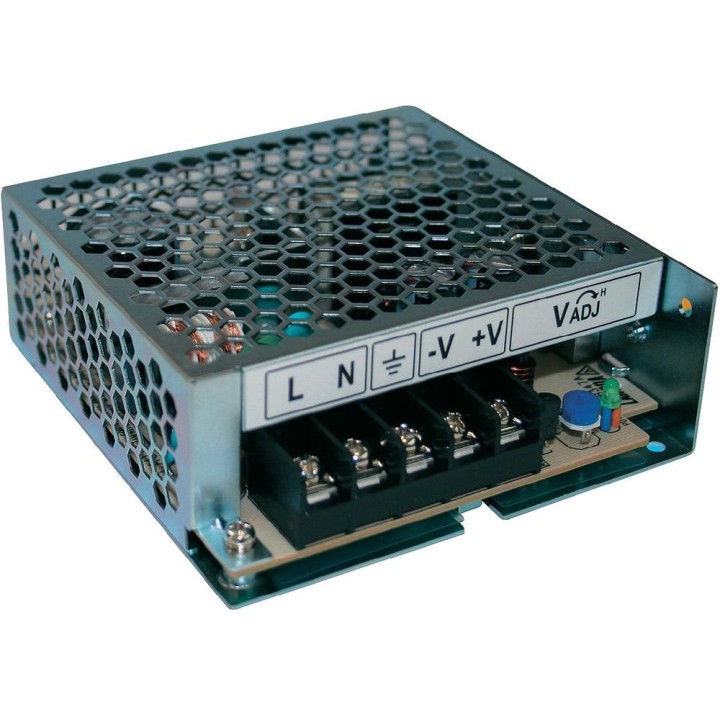

Supply 110v 220v 50w 5v 1a 2a 3a 4a 5a 6a 7a 8a 9a 10a rs-frame 50-5 Closed use pro velleman - 1

Supply 110v 220v 50w 5v 1a 2a 3a 4a 5a 6a 7a 8a 9a 10a rs-frame 50-5 Closed use pro

REF : RS505

€18.52
features universal / full range AC input protections: short circuit / overload / over voltage natural convection LED power indicator lapping test 100% resistant t

Volume discounts

5
€17.59
10
€16.67
20
€14.82
: 2 Items

Emplacement : --()R13H3


features

universal / full range AC input
protections: short circuit / overload / over voltage
natural convection
LED power indicator
lapping test 100%
resistant to temperatures up to 105 ° C through the electrolytic capacitors
supports 300 VAC inputs for 5 seconds
High operating temperature up to 70 ° C
resistant to 5 G vibration test
Startup consumption <0.5 W
high efficiency, long life, high reliability
3 years warranty
FOR PROFESSIONAL USE
This appliance must be installed by a qualified technician.

specifications

exit:
DC voltage: 5V
Rated current: 10 A
current range: 0 ~ 10 A
rated power: 50 W
ripple & noise (max.): 80 mVp-p
voltage adjustment range: 4.75 ~ 5.5 V
voltage tolerance: ± 2.0%
line regulation: ± 0.5%
load regulation: ± 1.0%
start time, rise 500 ms, 30 ms / 230 VAC 1200 ms, 30 ms / 115 VAC at full load
holding time (typ.) 60 ms / 14 ms 230VAC / 115VAC at full load
entrance:
voltage range: 88 ~ 264 VAC 125 ~ 373 VDC (supports 300 VAC input for 5 seconds)
frequency range: 47 ~ 63 Hz
efficiency (typ.): 83%
AC current (typ.): 1.3 A / 115 VAC 0.8 A / 230 VAC
inrush current (typ.): 33 A / 230 VAC (cold start)
leakage current: <2 mA / 240 VAC
protection:
overload:
nominal output power 110 ~ 150%
protection type: Hiccup mode, auto recovery after the failure is resolved
surge:
5.75 ~ 6.75 V
protection type: Hiccup mode, auto recovery after the failure is resolved
environment:
Temperature: -25 ~ + 70 ° C (see "derating curve")
Moisture service: 20 - 90% RH non-condensing
storage temperature, humidity: -40 ~ + 85 ° C, 10 ~ 95% RH
temperature coefficient: ± 0.03% / ° C (0 ~ 50 ° C)
Vibration: 10 ~ 500 Hz, 5 G 12 min. / 1 cycle, period for 60 minutes. along the axes X, Y, Z
Safety & EMC:
Safety Standards: complies with IEC60950-1 standards, TUV EN60950-1
Isolation Voltage: I / PO / P: 3KVCA I / P-FG: 1.5KVCA O / P-FG: 0.5KVCA
Insulation resistance: I / PO / P, I / P-FG, O / P-FG: 100M Ohms / 500VDC / 25 ° C / 70% RH
Emission EMC complies with EN55022 (CISPR 22) Class B, EN61000-3-2, -3
EMC immunity: complies with EN61000-4-2 standards, 3, 4, 5, 6, 8.11; EN61000-6-2 (EN50082-2), heavy industrial environment criterion A
other:
MTBF: 228 KHRS min. MIL-HDBK-217 F (25 ° C)
dimensions (L x W x H): 99 * 97 * 36 mm (L * W * H)
Packaging: 0.41 kg; 45 pcs / 19.5 kg / 0.9 Nfld
velleman
RS505
2 Items
