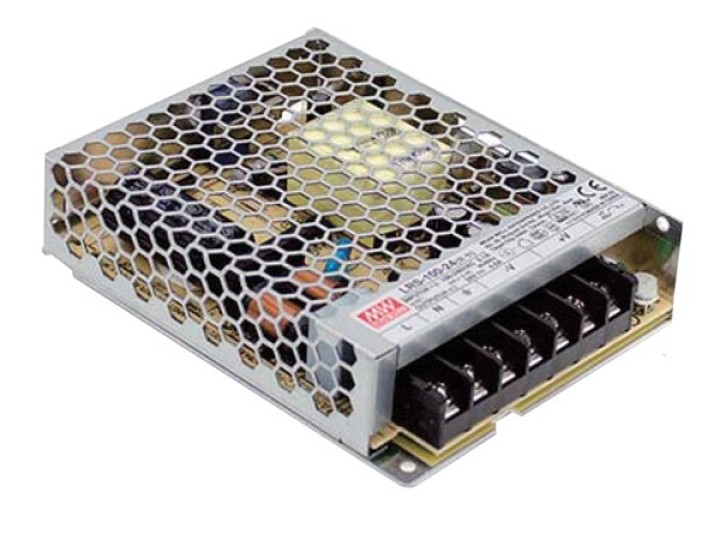

Switch mode power supplies 110v 220v 100w 12v 8.5a rs-100-12 compliant 5a 6a 7a 8a 230v 240v

Name: Switch mode power supplies 110v 220v 100w 12v 8.5a rs-100-12 compliant 5a 6a 7a 8a 230v 240v
Brand: velleman
SKU: RS10012
Price: 27.82 EUR
Availability: InStock

REF : RS10012

€27.82

Characterist

Volume discounts

€26.43

€25.04

€22.26

Quantity

Add to wishlist

Add to compare

In stock : 5 Items

Emplacement : -()R5A4

Characteristics

    universal AC input / full range
    cooling: natural convection
    LED power indicator
    pretested on 100% of the power
    Supports 300 VAC inputs for 5 seconds
    suitable for high operating temperatures up to 70 ° C
    in accordance with the 5G vibration test
    empty consumption <0.3 W
    high efficiency, extended life, high reliability
    3 years warranty
    protections: short circuit / overload / overvoltage
    compact and low profile 1U
    operating altitude max. 5000 m
    terminal block cover not included
    professional use only
    This appliance must be installed by a qualified technician.

Specifications

    exit:
        DC voltage: 12 V
        rated current: 8.5 A
        current range: 0-8.5 A
        rated power: 102 W
        ripple & noise (max.): 120 mVp-p
        Voltage adjustment range: 10.2-13.8V
        voltage tolerance: ± 1.0%
        line regulation: ± 0.5%
        load regulation: ± 0.5%
        start time, rise time:
            500 ms, 20 ms / 230 VAC
            1200 ms, 30 ms / 115 VAC at maximum load
        holding time (typ.):
            100 ms / 230 VAC
            18 ms / 115 VAC at maximum load
    Entrance:
        voltage range:
            88-264 VAC
            125-373 VDC
            Resistant to 300 VAC voltage surge for 5 seconds
        frequency range: 47-63 Hz
        yield (typ.): 88%
        AC current (typ.):
            1.9 A / 115 VAC
            1.2 A / 230 VAC
        inrush current (typ.): 50 A / 230 VAC cold start
        leakage current: <0.75 mA / 240 VAC
    protection:
        overload:
            110-150% of the rated output power
            protection type: hiccup mode, automatic recovery once the fault is resolved
        overvoltage:
            13.8-16.2 V
            protection type: hiccup mode, automatic recovery once the fault is resolved
    environment:
        operating temperature: -30 ° C to +70 ° C
        operating humidity: 20 - 90% RH without condensation
        storage: from -40 ° C to + 85 ° C, 10 - 95% RH
        thermal coefficient: ± 0.03% / ° C (0-50 ° C)
        vibration: 10-500 Hz, 5G 10 min / 1 cycle, for 60 min along the X-, Y-, Z axes
    safety & EMC:
        safety standards: UL60950-1 compliant, TUeV EN60950-1
        insulation voltage:
            input to output: 3.75 kVCA
            input to earth: 2 kVCA
            output to earth: 1.25 kVCA
        insulation resistance: input to output, input to earth, output to earth: 100 Mohm / 500 VDC / 25 ° C / 70% RH
        EMC emission: in accordance with EN55022 (CISPR22) Class B; EN61000-3-2, -3
        EMC immunity: in accordance with EN61000-4-2, 3, 4, 5, 6, 8,11; EN61000-6-2 (EN50082-2), Heavy Industrial Environment, Criterion A
    other:
        MTBF: 720.600 hr min. MIL-HDBK-217F (25 ° C)
        dimensions (W x W x H): 129 x 97 x 30 mm
        weight: 0.34 kg

Packaging information
Type of packaging: Box
Barcode (EAN-13): 5410329676995
