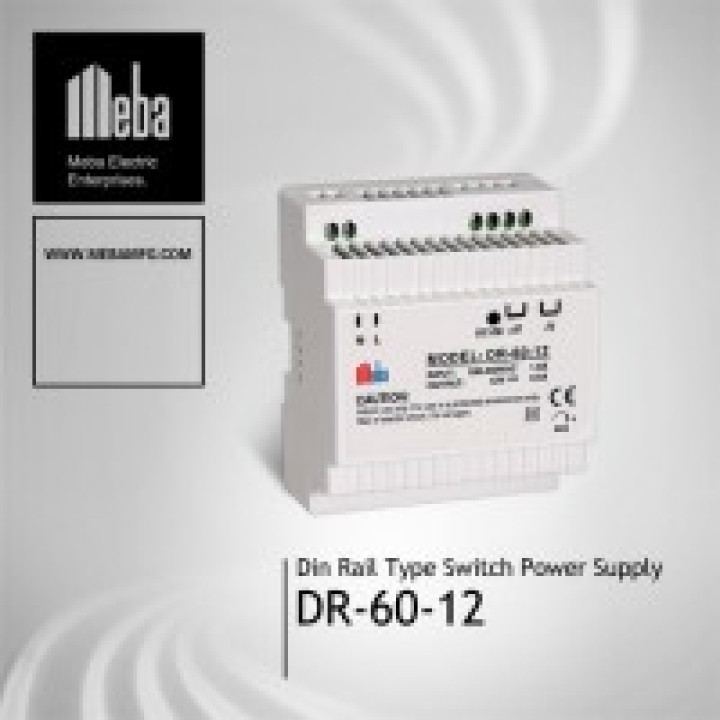

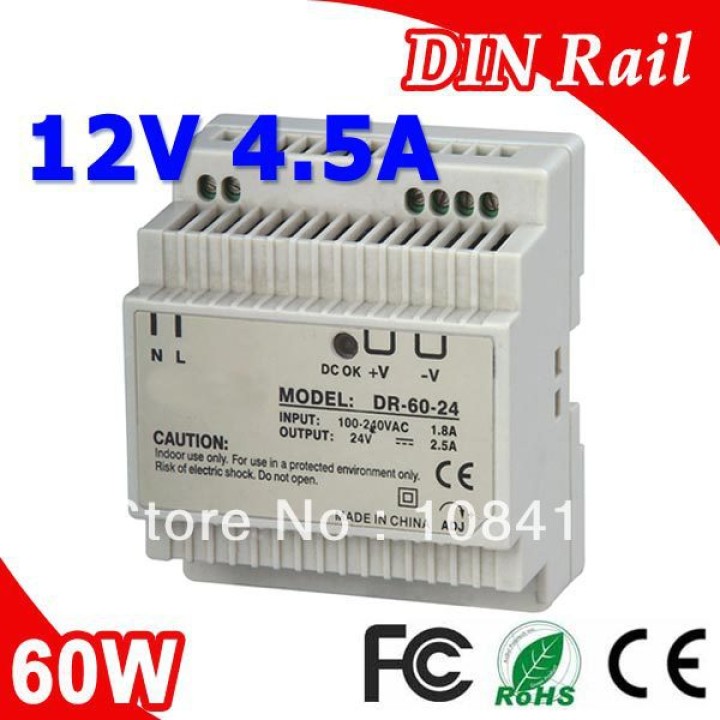

60w single output industrial din rail power supply 12v 4.5a for professional use only dr-60-12

Features

universal AC input / full range
protection against: short circuit / overload / overvoltage
cooling: free air convection
can be installed on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
isolation class II
LED indicator for power on
100 % full load burn-in test
3 years warranty
FOR PROFESSIONAL USE
This device must be installed by a qualified person.

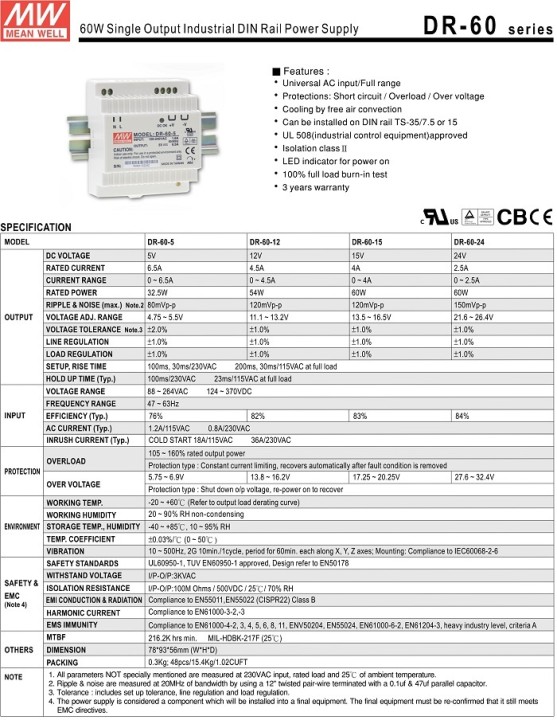

Specifications

output:
DC voltage: 12 V
rated current: 4.5 A
current range: 0-4.5 A
rated power: 54 W
ripple & noise (max.): 120 mVp-p
voltage adj. range: 11.1-13.2 V
voltage tolerance: ± 1.0 %
line regulation: ± 1.0 %
load regulation: ± 1.0 %
setup, rise time: 100 ms, 30 ms / 230 VAC 200 ms, 30 ms / 115 VAC at full load
hold up time (typ.): 100 ms / 230 VAC 23 ms / 115 VAC at full load
input:
voltage range: 88-264 VAC 124-370 VDC
frequency range: 47-63 Hz
efficiency (typ.): 82 %
AC current (typ.): 1.2 A / 115 VAC 0.8 A / 230 VAC
inrush current (typ.): cold start 18 A / 115 VAC 36 A / 230 VAC
protection:
overload:
105-160 % rated output power
protection type: constant current limiting, recovers automatically after fault condition is removed
overvoltage:
13.8-16.2 V
protection type: shut down output voltage, re-power on to recover
environment:
operating temperature: -20 to +60 °C
operating humidity: 20-90 % RH non-condensing
storage: -40 to +85 °C, 10-95 % RH
temperature coefficient: ± 0.03 %/°C (0-50 °C)
vibration: 10-500 Hz, 2G 10min/1cycle, period for 60 min each along X, Y, Z axes; mounting: compliance to IEC60068-2-6
safety & EMC:
safety standards: UL60950-1, TUV EN60950-1 approved, design refer to EN50178
withstand voltage: input to output: 3 kVAC
isolation resistance: input to output: 100 Mohm / 500 VDC / 25 °C / 70 % RH
EMC emission: compliance to EN55011, EN55022 (CISPR22) Class B, EN61000-3-2,-3
EMC immunity: compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
others:
MTBF: min. 216,200 h, MIL-HDBK-217F (25 °C )

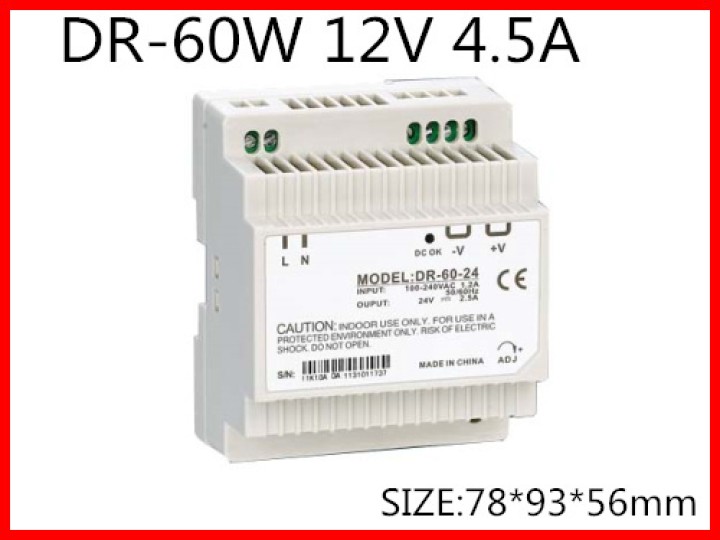

dimensions (L x W x H): 78 x 93 x 56 mm
packing: 0.3 kg; 48 pcs / 15.4 kg / 1.02 ft³
FOR PROFESSIONAL USE ONLY
This device must be installed by a qualified person
