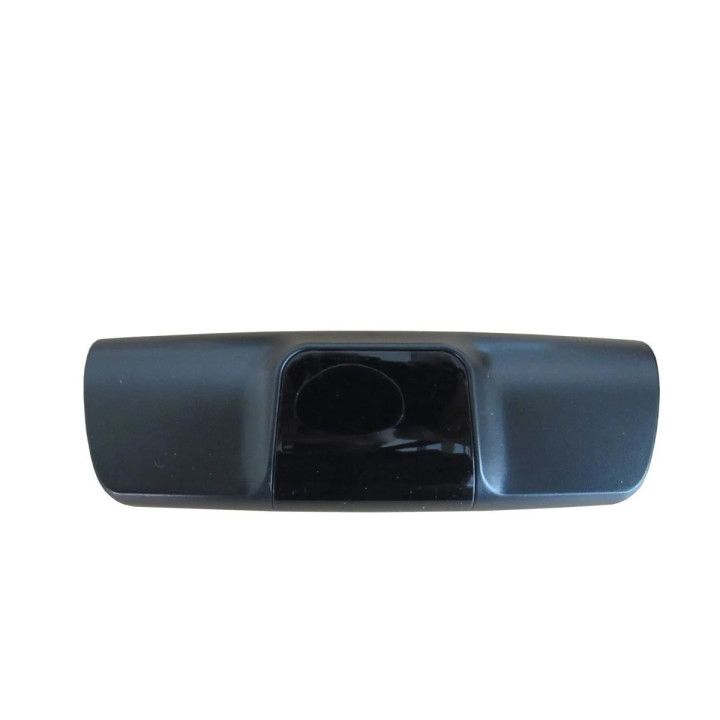

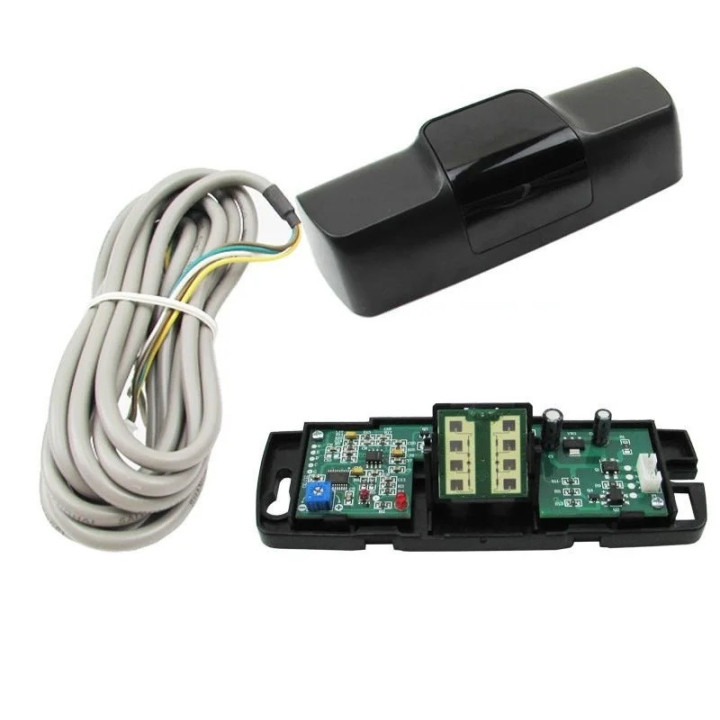

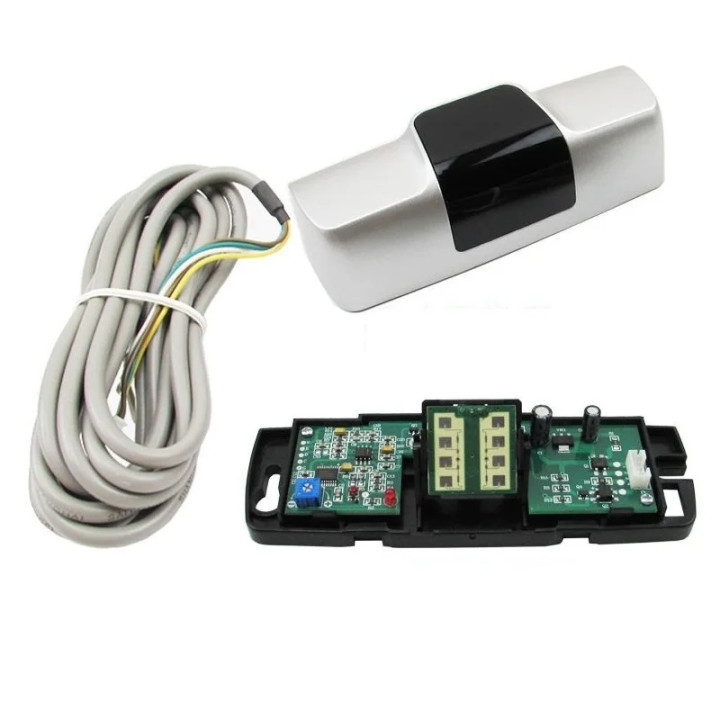

Radar Sensor Motion Microwave Universal 24.125GHz Sliding Glass Door Automatic Record

Radar Sensor Motion Microwave Universal 24.125GHz Sliding Glass Door Automatic Record
Market Glass Door Radar Activation Automatic Sensor, Microwave Sensor, Motion Presence Sensor
PIR Motion Detector, Exit Infrared Detector for Automatic Opening Exit, Door Access Control
Universal Inductive Door Sensor, Automatic Door Opening, Microwave Probe, 24G Record RIC-290 AIR-290 AIS 290
Description
This is a universal microwave motion detector. It is widely used in automatic doors, elevators in public places like supermarkets, ATMs, airports, etc. It is manufactured with sophisticated motion tracking function
24.125GHz microwave sensor technology
Adjustable settings to optimize the sensor for all automatic door applications
Adjustable sensor detection area by right-left, up-down direction
Note: The relay does not output any signal. When the device detects the door opener, the device outputs an NC signal.

Technical principle: microwave/microwave processor
Transmission frequency: 24.125GHz
Transmission power: <20dBm EIRP
Transmission frequency density: <5mW/㎡
Maximum mounting height: 3M
Tilt: vertical 0 °- 90 °, horizontal -30 °- + 30 °
Detection range (mounting height2.2m): 4m (W) * 2m (D)
Detection mode: Motion
Minimum detection speed: 5 cm/s (according to the longitudinal axis of the sensor)
Power supply voltage: 12V - 24V AC/DC + 30%-10%
Power frequency: 50-60Hz
Power consumption: <2W (VA)
Relay output (without initial potential)
Maximum contact voltage: 42V A -60V DC
Maximum current of contact: 1A (resistance)
Maximum switching power: 30W (DC) /60
