Detector bivolumetric 8m dt-7225 alarm detector 12vdc double technology electronic

Volumetrics are in a way the eyes and ears of your alarm system. There are several different detection techniques: Passive infrared detector (PIR): this type of detector senses all warm body movements. The detector transmit infrared rays and triggers the alarm when one or more of these beams are broken.
• Hyperfrequency: this detection technique is the most efficient. An hyperfrequency sensor can pick up, using radar waves, any moving body whether cold or hot.
• Double technology detectors, thus called because they combine radar hyperfrequencies and PIRs.

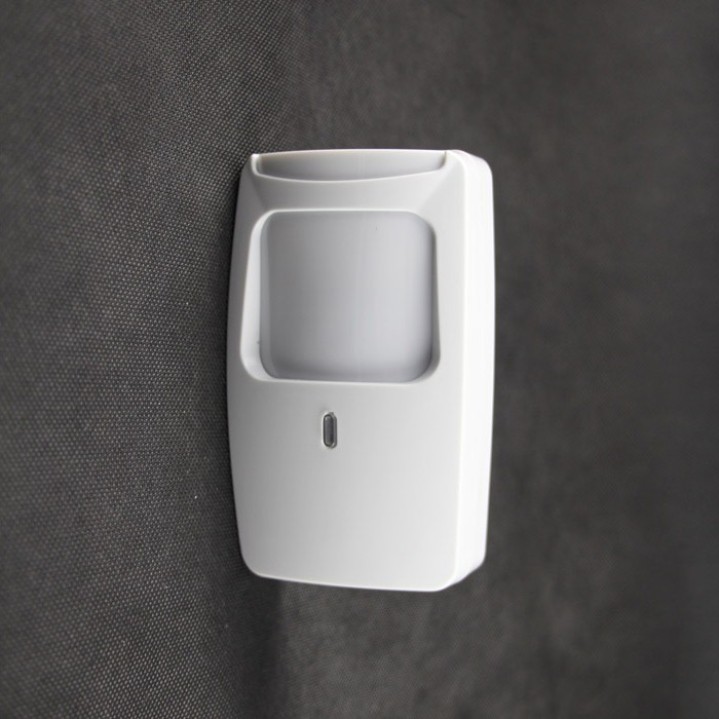

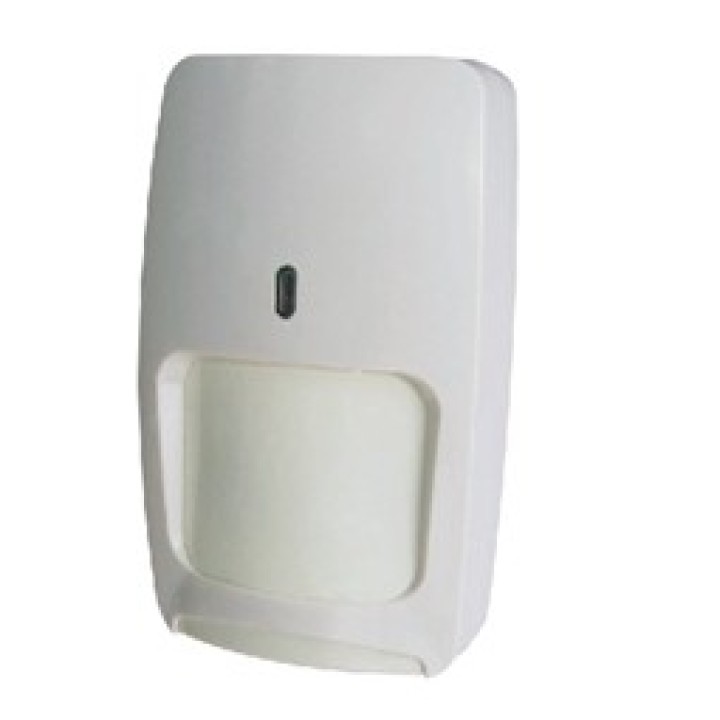

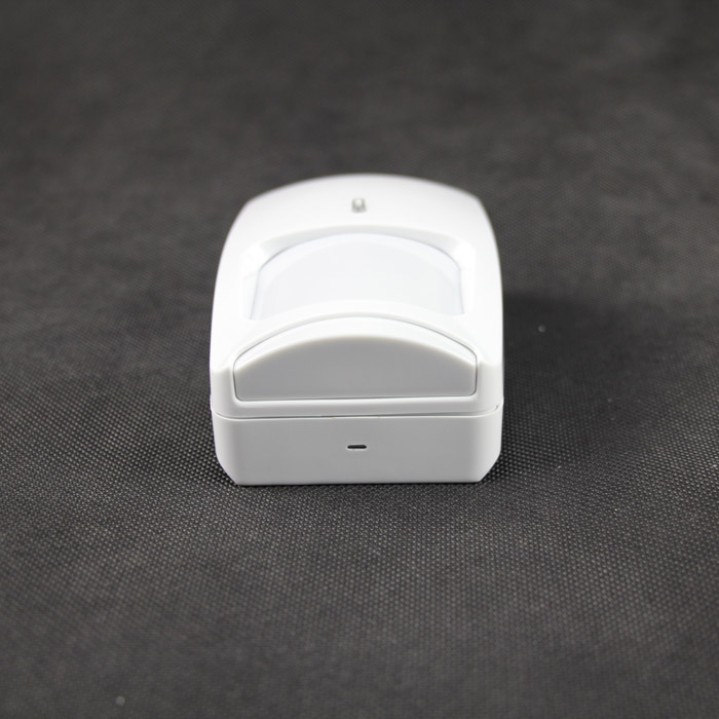

High tech. detector, the BIVO8 is designed to protect dwellings and small shops. The combination of hyperfrequencies and PIR eliminates all risk of false alarms. Adjustable hyperfrequency range and infrared pulse count makes the BIVO8 very reliable. 2 LEDs give status and simplify adjustments. A temperature compensation system (by thermistance) makes it additionally reliable. Surveillance can be carried out up at a distance of 8m. Hyperfrequency: 10,595GHz. Anti tamper and alarm outputs on NC contacts. HONEYWELL DT-7225 Dual-PIR-MW-Intelligence-Detector

Product Description:
Using K-Band microwave technology and Uniform Sensitivity Optics.The DT-7225 motion sensor provides reliable protection in a simple installation configuration that requires no adjustments.
Features:
Fast and Simple Installation Without Adjustments.
Superb Detection Through K-band technology.
Sturdy, Attractive Housing.

Specification
Model DT-7225
Range : 25’ x 30’ (7.6 m x 9 m)
Alarm Relay : Energized Form A500 mA, 30 VDC
Power Requirements : 7.5 - 16VDC 25mA
AC Ripple: 3V peak-to-peak at 12VDC nominal
Frequencies : 24.125GHz (K-Band)
PIR White Light Immunity : 6500 LUX typical
RFI Immunity : 30V/m, 10MHz - 1000MHz
Operating Temperature :14° to 131° F (-10° to 55° C) 5% - 95% relative humidity (noncondensing)
PIR Fields of View
22 long range edges
12 intermediate edges
6 lower edges
4 look-down edges
Dimensions : 4.685” x 2.795” x 1.654” (11.9 cm x 7.1 cm x 4.2 cm)
Sensitivity : 2-4 steps within field of view
Accessories
SMB-10 Swivel Mount Bracket
