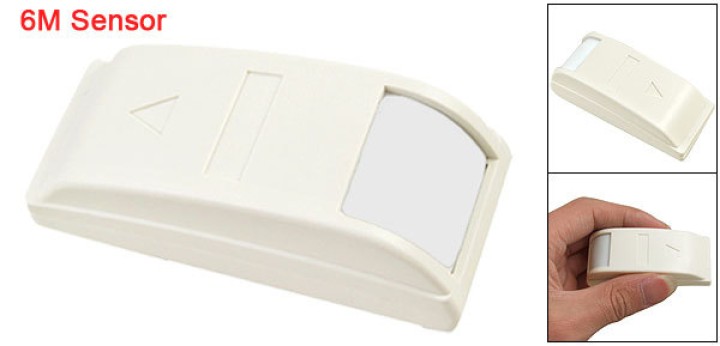

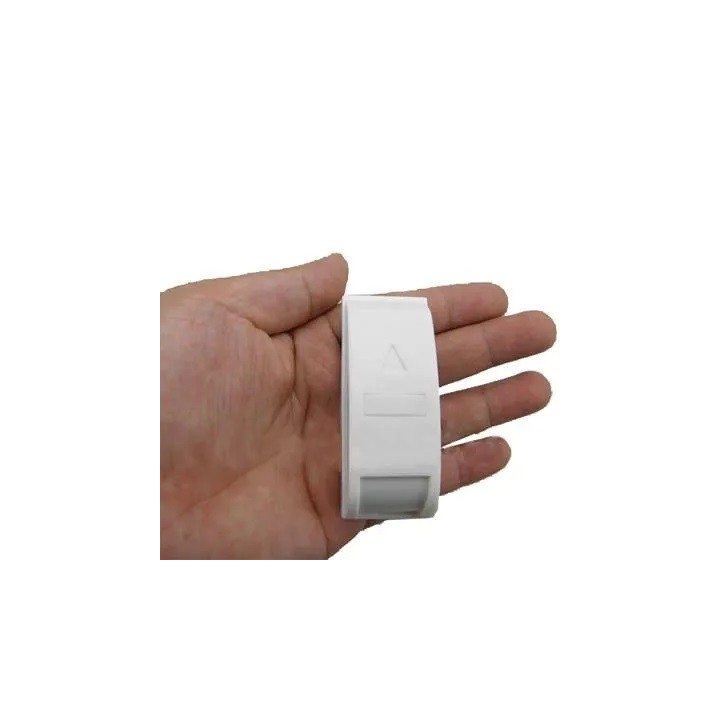

PA-461 Wired Passive Infrared Curtain PIR Motion Detector Sensor Alarm

The PA-461 is the smallest and most elegant digital curtain-pattern PIR detector using advanced digital True Motion Detection Technology. Once motion signal is received, it compares and analyses the signal with the true motion signal in database memory and ignores extraneous noises in order to eliminate false alarm. Detailed coverage patterns and mounting alternatives are given in Figures 2 through 6 below.
Table for protection of window, door, balcony and ceiling
 Hot spots:

    Fire Protection: ABS plastic housing
    PIR type: Curtain PIR

Specifications:

    Wired or wireless: wired PIR
    Operating Voltage: 10-16VDC (NOT included)
    PIR type: Curtain PIR
    Number of curtain beam: 2 beams
    Coverage area: 3.6mx6m
    Alarm output: N.C.
    Tamprer switch: N.C.
    Fire Protection: ABS plastic housing
    Detector: Dual –element low noise Pyroelectric sensor
    Operating Temperature:-10 ° C to 50 ° C
    Storage Temperature:-20 ° C to 60 ° C
    RFI protection: 200V/m to 1000MHz

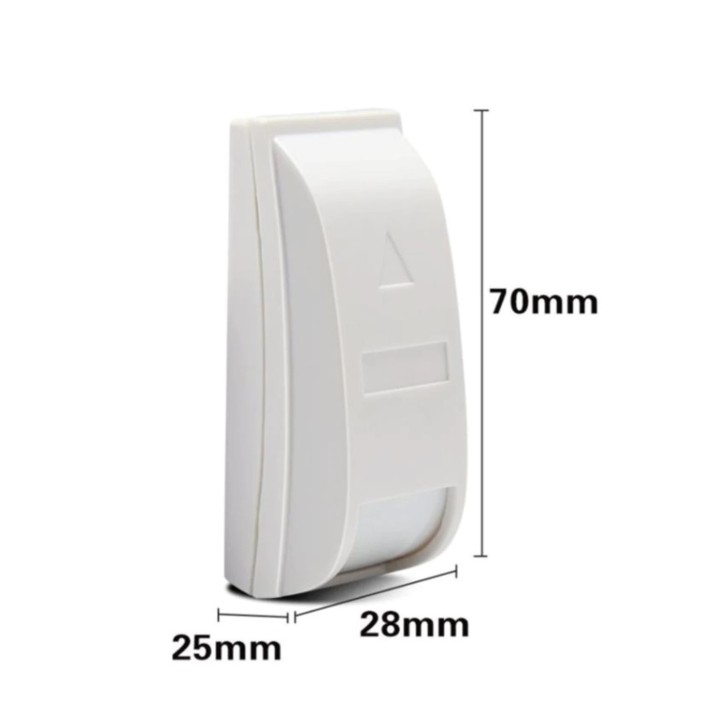

    Size: 7x2.8x2.3cm
    Weight: 21g
    Color: White

Note: The range and coverage area should be checked at least once a year . to assure proper continuous functioning , the user should be instructed to perform a walk test at the far end of the coverage pattern to assure an alarm signal prior to each time the alarm system is armed
Package include:

    1 x PA-461 PIR Detector
    1 x User Manual
