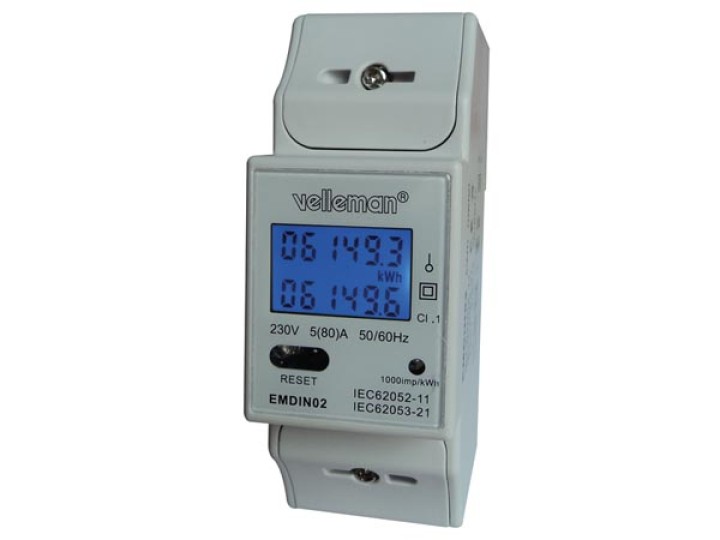

Kwh meter single phase 80a din rail mounting 2 modules emdin02 velleman - 1

Kwh meter single phase 80a din rail mounting 2 modules emdin02

REF : EMDIN02

€58.25
This electrical energy meter (kWh) phase DIN rail is a new generation of single-phase electronic energy meters, using techniques microelectronic circuits high integration (LSI), digital techniques and

Volume discounts

5
€55.34
10
€52.43
20
€46.60
: 8 Items

Emplacement : R3C6()R3C3


This electrical energy meter (kWh) phase DIN rail is a new generation of single-phase electronic energy meters, using techniques microelectronic circuits high integration (LSI), digital techniques and advanced techniques CMS. The meter meets the technical requirements of class 1, class 2 and IEC62052-11, IEC62053-21. It is used to measure active energy consumption accurately and directly from the ac phase (50/60 Hz).
characteristic

     LCD (with blue backlight)
     pulse output
     LED indicator

specifications

     voltage: 230 V
     Current: 5 (80) A
     Accuracy class: 1.0
     Frequency 50/60 Hz
     Display mode: LCD 5 +1 digits = 99999.9 kWh
     power consumption: <0.4 W = (8 VA)
     Temperature range: -20 to 65 ° C
     LED indicator: 1 flashing / pulsing
     pulse output 1000 imp / kWh
         voltage: 12 to 27 V
         current: 27 mA
         pulse width: 90 ms
velleman
EMDIN02
8 Items
