Indicator of the distribution of consumption for single-phase meter installation

- Measures the number of kWh consumed by a portion of an electrical installation : heating, hot water , heat pumps , lighting, appliances
- Equally suitable qu'électromécanique with electronic counter ,
- The 2 types of accumulations per tariff period :
. A cumulative consumption since commissioning of the product ( non-erasable )
. Cumulative from the last reset , erase , measuring the consumption of a heating season
- The calculation of the average maximum power reached can reveal the need to install a shedder or verify the adequacy of the contract power consumption with

functions
Indicator to measure the number of kWh consumed by heating, hot water or other use
- Compatible with electronic or electromechanical meter
- Display totals by tariff periods
- Display of maximum power reached
- Double counter ( permanent , a bootable)

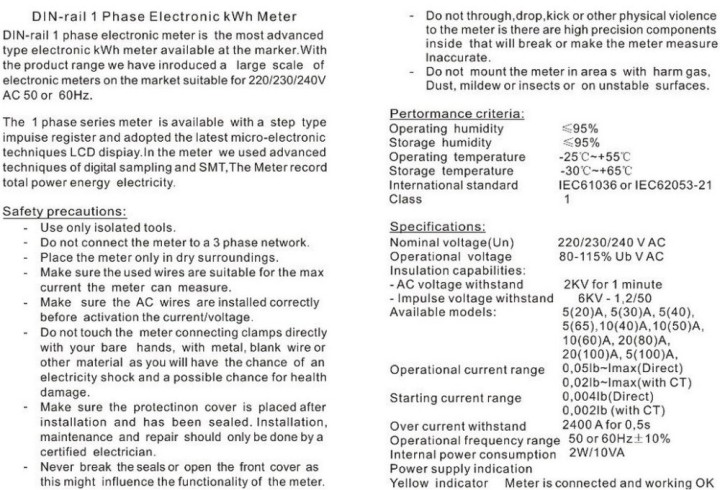

This electrical energy meter (kWh) single phase DIN rail is a new generation of electronic energy meters single phase , using microelectronic techniques, highly integrated circuits (LSI) , advanced digital technology and SMT techniques. The meter meets the technical requirements of Class 1, Class 2 and IEC62052 -11, IEC62053 -21. It is used to measure active energy accurately and direct consumption from single phase AC networks (50/60 Hz).

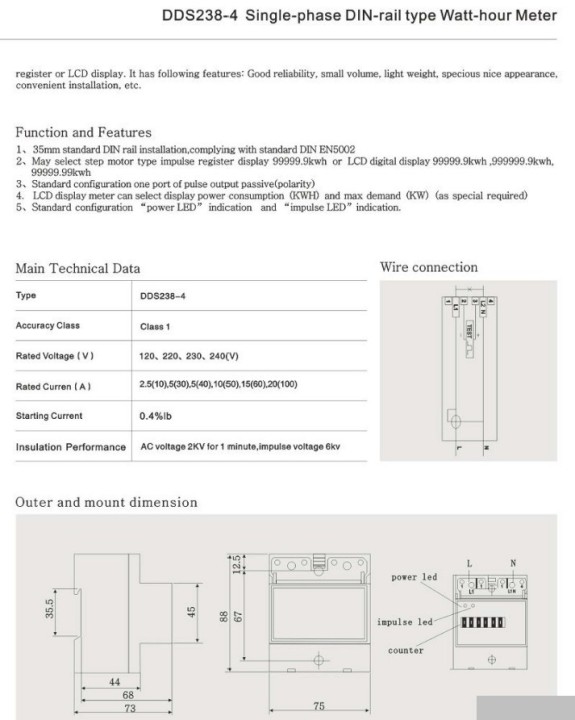

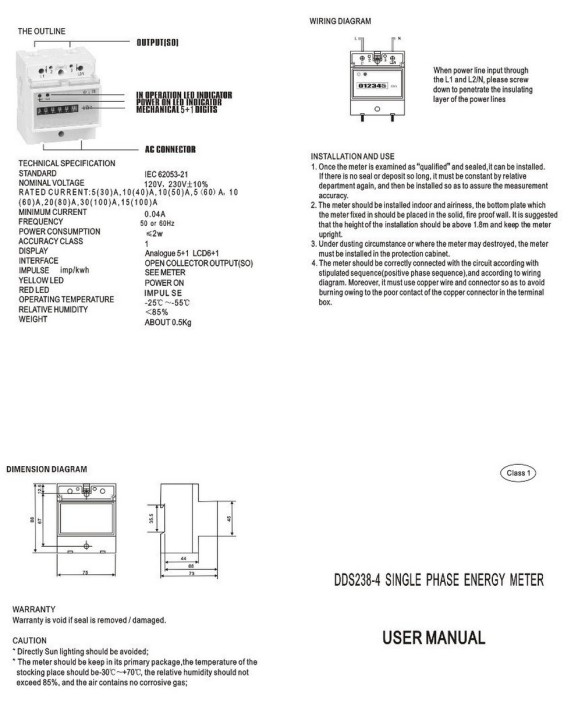

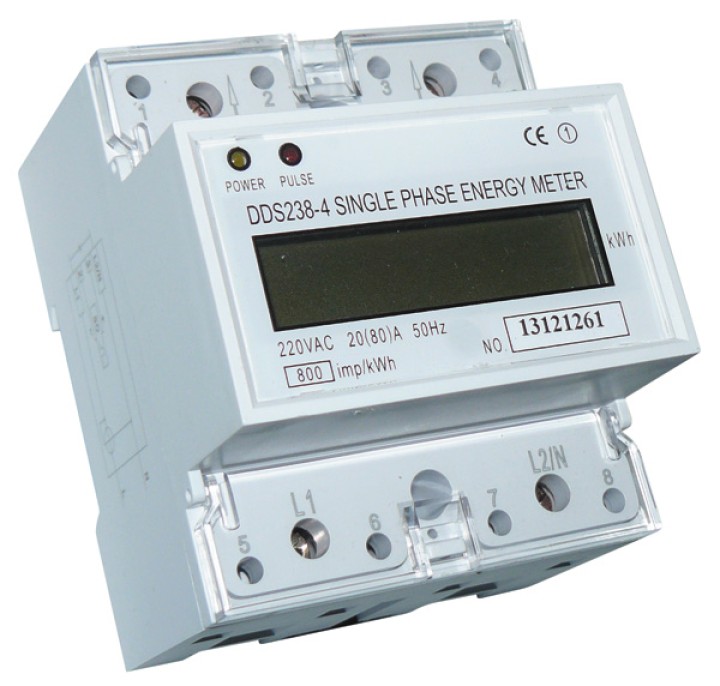

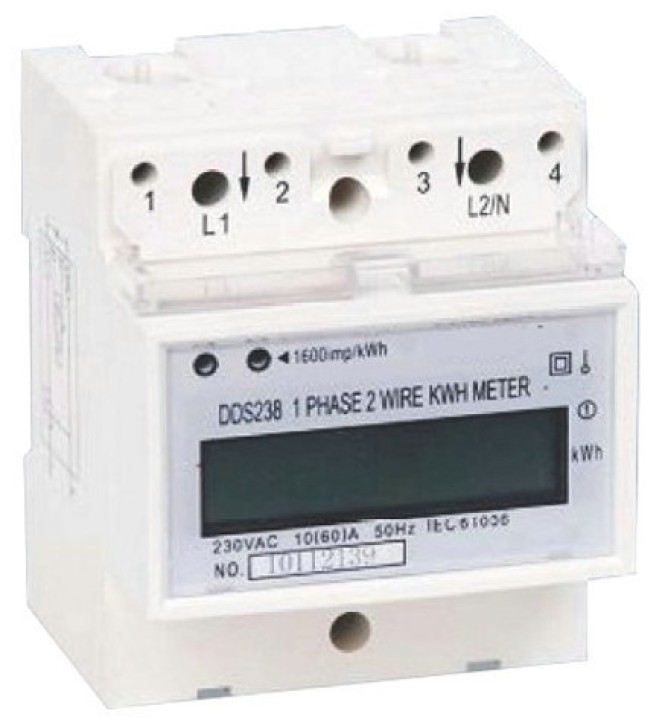

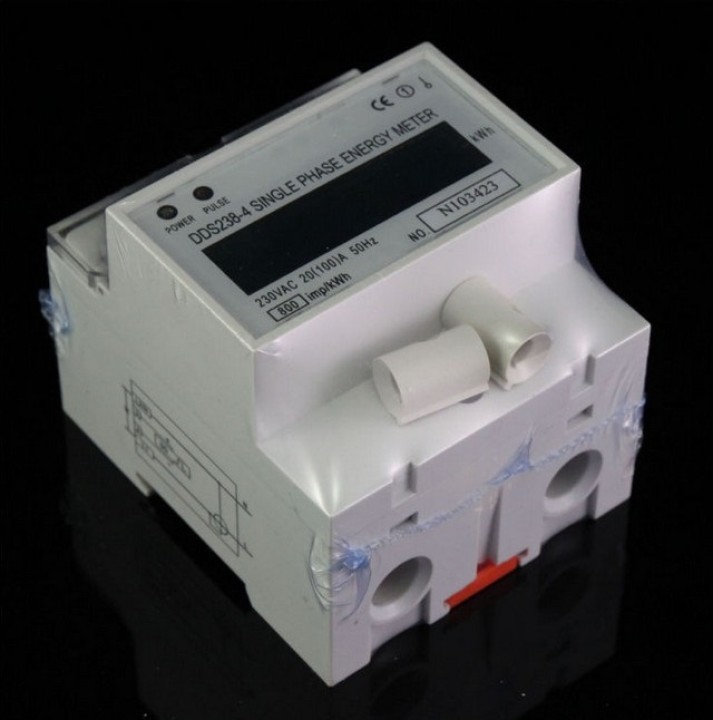

Type DDS238 -4 single-phase rail mounting energy used to measure active energy consumption on two network son AC power meter !
The size is only 4 modules similar to the bulk of a switch !
Specifications:
1.Voltage 220V + - 10% 50HZ
2 . Base current is 20A
3.Max current is 100A
4 . Starting current is 80mA
5 . Impluse put 1600imp/kWh
6 . LCD 6 is one ( dicimal a ) , can also be two display 5

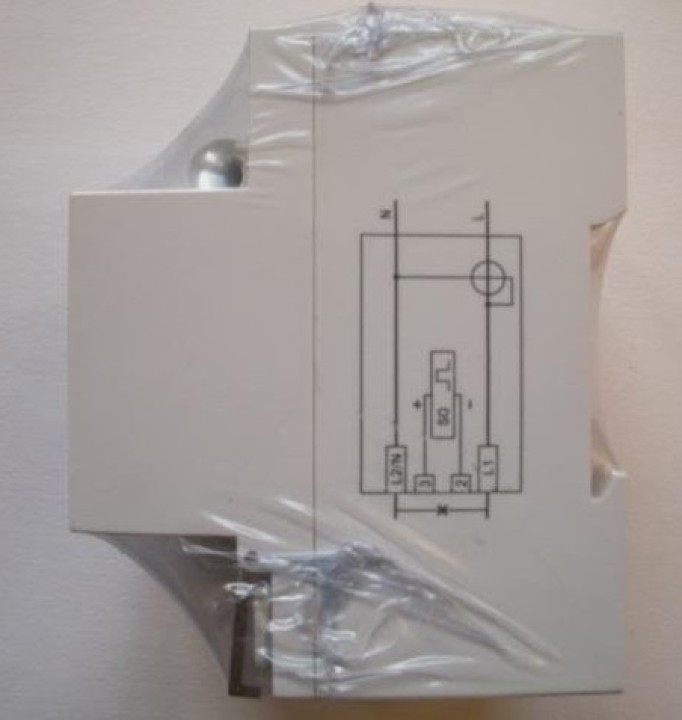

7.wire connection is L N! 4 terminal connection

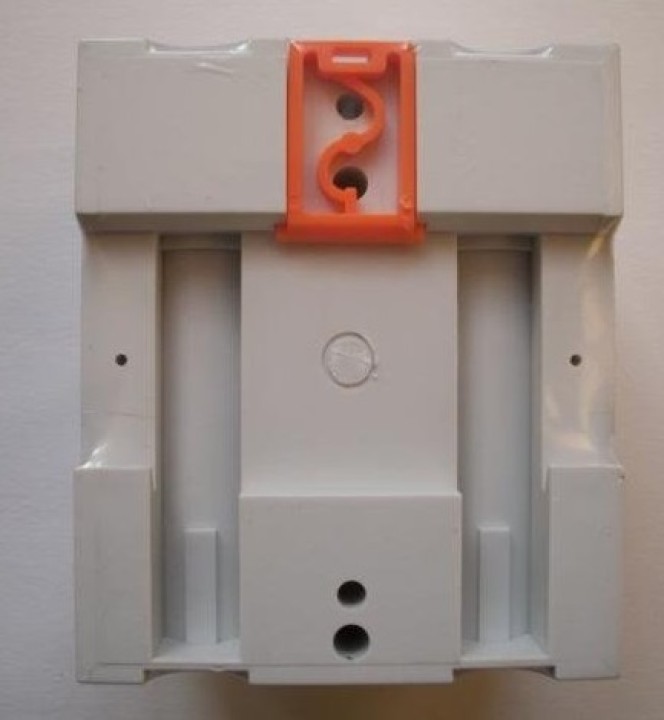

8.installed DIN rail , the meter is only 4 module width 75mm
9 specific counter is + 1%
