This electrical energy meter (kWh) phase DIN rail is a new generation of single-phase electronic energy meters, using techniques microelectronic circuits high integration (LSI), digital techniqu

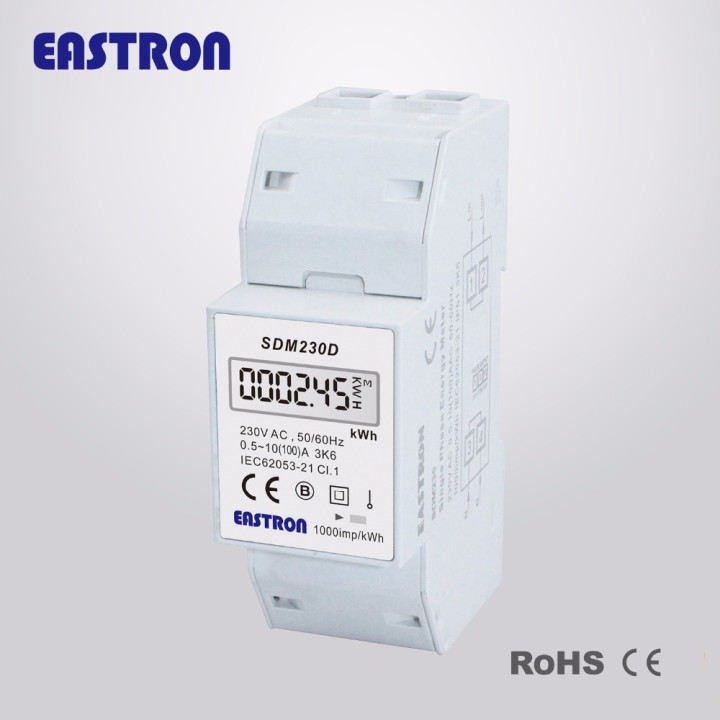

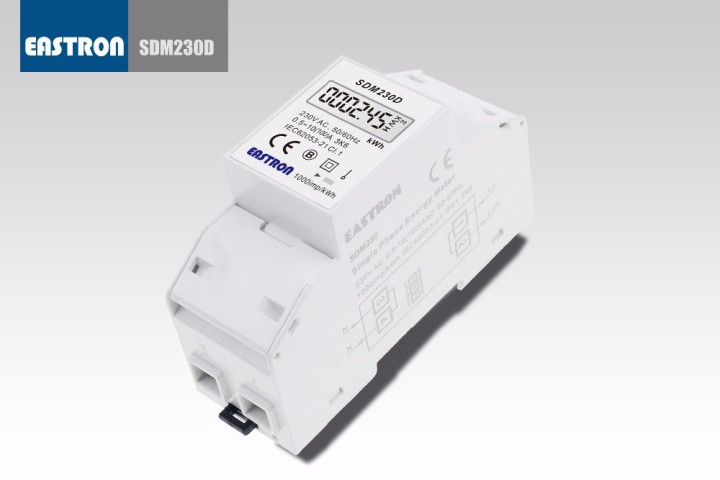

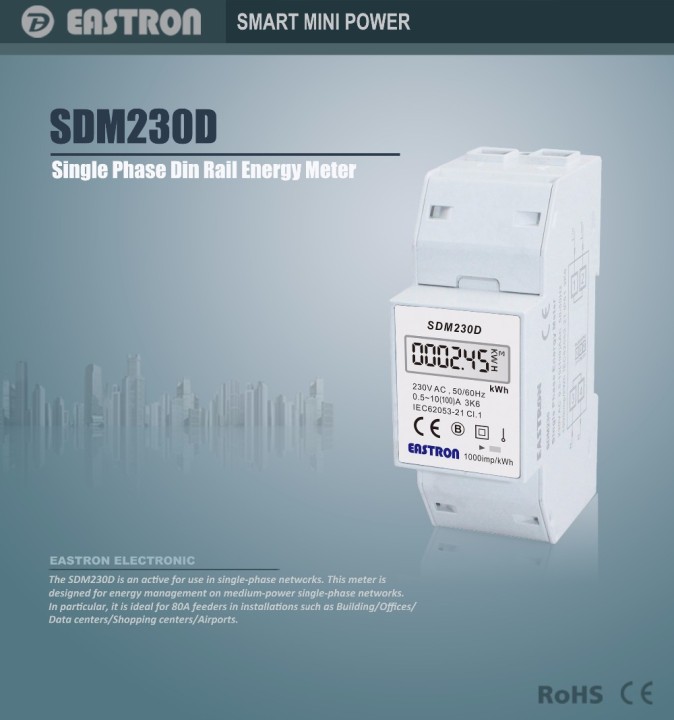

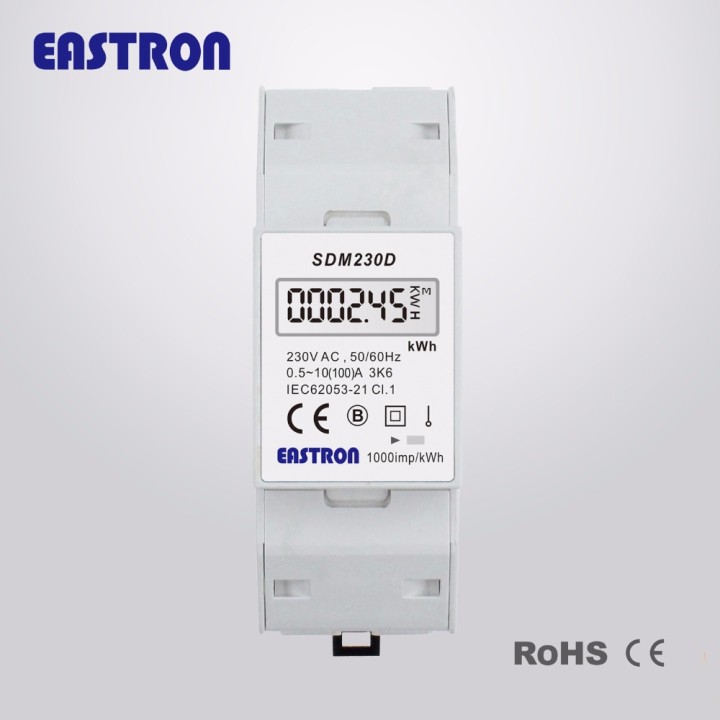

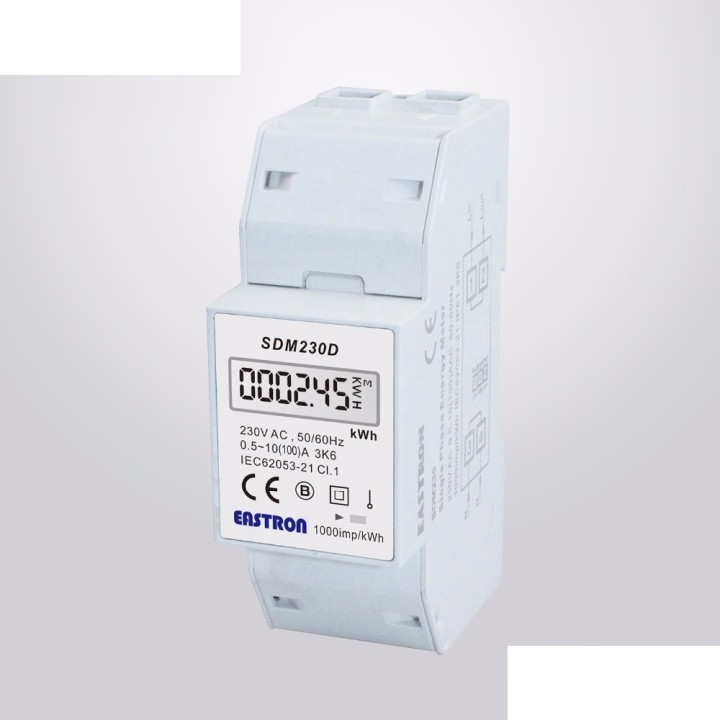

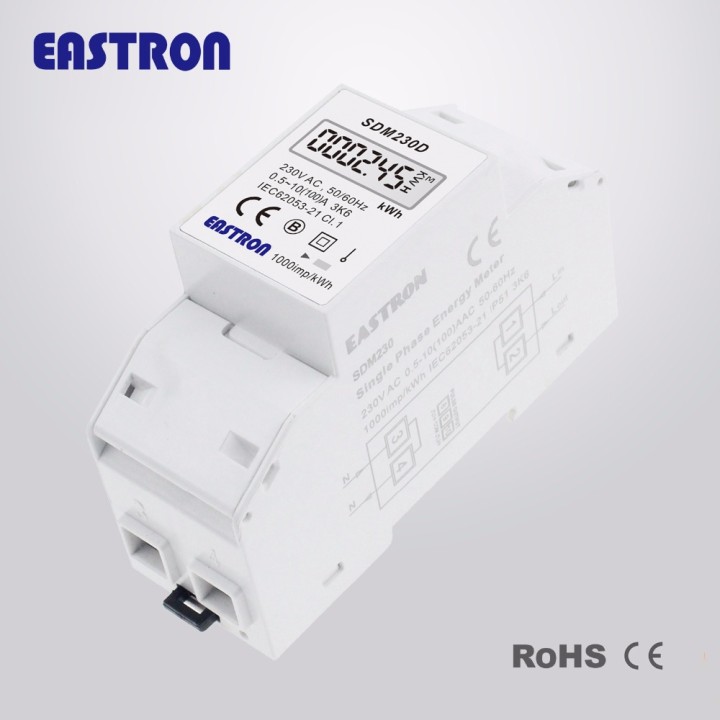

Kwh meter single phase 80a din rail mounting 2 modules emdin02
REF : EMDIN02W
€49.92
This electrical energy meter (kWh) phase DIN rail is a new generation of single-phase electronic energy meters, using techniques microelectronic circuits high integration (LSI), digital techniqu
: 28 Items
Emplacement : -()R1A2
Security policy
Delivery policy
Terms of Sales
This electrical energy meter (kWh) phase DIN rail is a new generation of single-phase electronic energy meters, using techniques microelectronic circuits high integration (LSI), digital techniques and advanced techniques CMS. The meter meets the technical requirements of class 1, class 2 and IEC62052-11, IEC62053-21. It is used to measure active energy consumption accurately and directly from the ac phase (50/60 Hz).
characteristic
LCD
pulse output
LED indicator

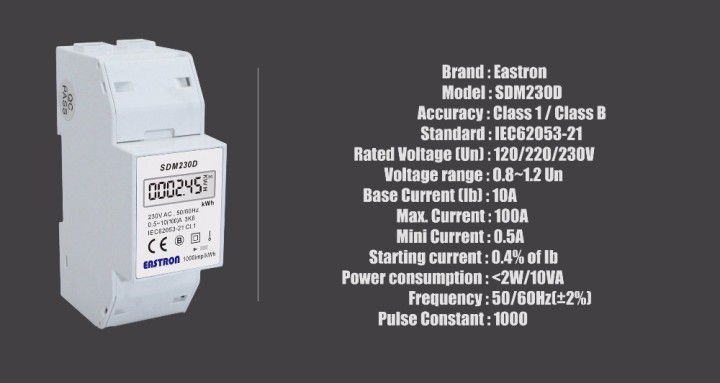

specifications
voltage: 230 V
Current: 5 (80) A
Accuracy class: 1.0
Frequency 50/60 Hz
Display mode: LCD 5 +1 digits = 99999.9 kWh
power consumption: <0.4 W = (8 VA)
Temperature range: -20 to 65 ° C
LED indicator: 1 flashing / pulsing
pulse output 1000 imp / kWh
voltage: 12 to 27 V
current: 27 mA
pulse width: 90 ms
