This electrical energy meter (kWh) phase DIN rail is a new generation of single-phase electronic energy meters, using techniques microelectronic circuits high integration (LSI), digital techniques and

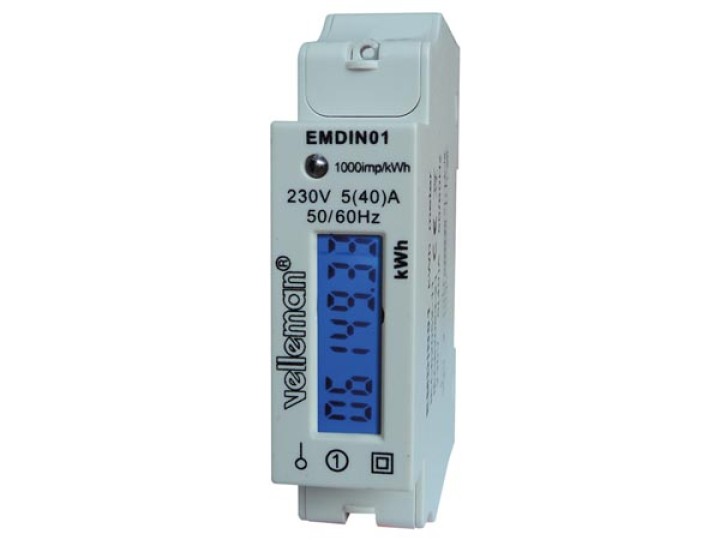

Kwh meter single phase din rail mount - 1 module emdin01
REF : EMDIN01
€29.34
This electrical energy meter (kWh) phase DIN rail is a new generation of single-phase electronic energy meters, using techniques microelectronic circuits high integration (LSI), digital techniques and
: 29 Items
Emplacement : R2C6()R2C5
Security policy
Delivery policy
Terms of Sales
This electrical energy meter (kWh) phase DIN rail is a new generation of single-phase electronic energy meters, using techniques microelectronic circuits high integration (LSI), digital techniques and advanced techniques CMS. The meter meets the technical requirements of class 1, class 2 and IEC62052-11, IEC62053-21. It is used to measure active energy consumption accurately and directly from the ac phase (50/60 Hz).
characteristic
LCD (with blue backlight)
pulse output
LED indicator
specifications
voltage: 230 V
Current: 5 (40) A
Accuracy class: 1.0
Frequency 50/60 Hz
Display mode: LCD 5 +2 digits = 99999.99 kWh
power consumption: <0.4 W = (8 VA)
Temperature range: -20 to 65 ° C
LED indicator: 1 flashing / pulsing
pulse output 1000 imp / kWh
voltage: 12 to 27 V
current: 27 mA
pulse width: 90 ms
