Miniature slide-switch has to be on this 1p 0.2 h251b velleman - 3

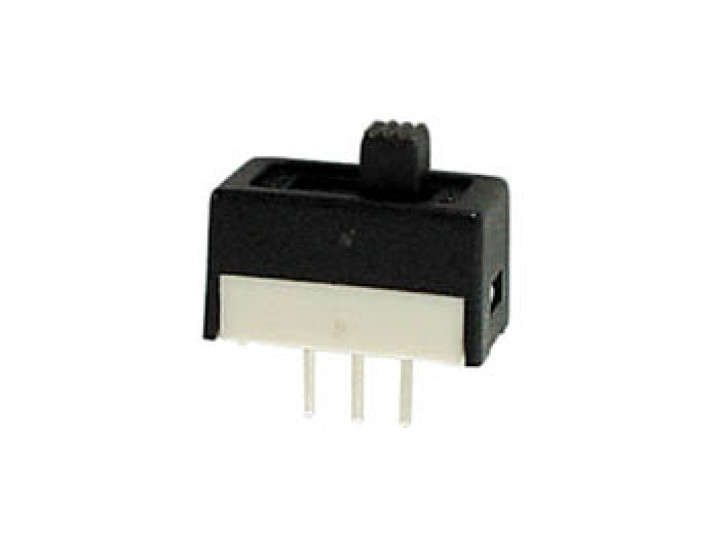

Miniature slide-switch has to be on this 1p 0.2 h251b

REF : H251B

€4.16
€3.12 Save 25%
specifications not: 5.08 " switching position: Left: on environment: none right: we contacts: 6A with resistive load of 120Vac or 28Vdc

Volume discounts

2 3 4 5
€3.12 €2.63 €2.29 €2.00
Quantity

The minimum purchase order quantity for the product is 2.

: 17 Items

Emplacement : -()CH



Security policy



Delivery policy



Terms of Sales

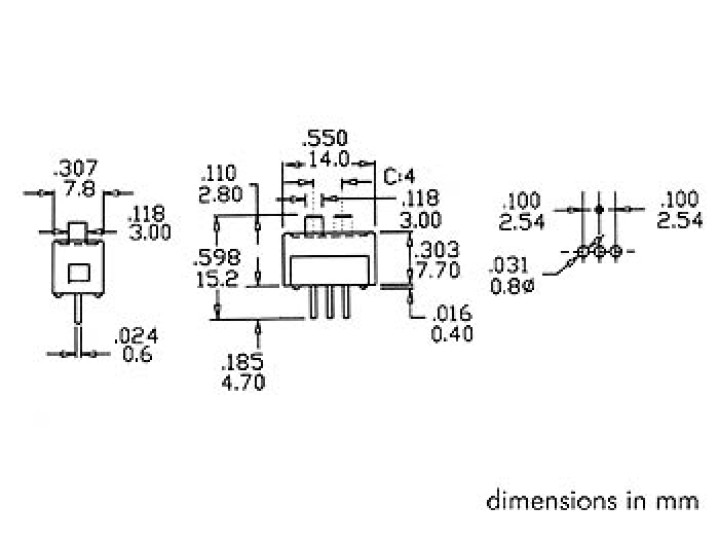

specifications

not: 5.08 "
switching position:
Left: on
environment: none
right: we
contacts:
6A with resistive load of 120Vac or 28Vdc
2A with resistive load 250VAC
Mechanical life: 2000 operations
Resistance: 1000Mohm below 500V
dielectric strength:
between contacts: 1000Vrms
between the contacts and the mass 2000Veff 50Hz
Working temperature: -40 ° C to +85 ° C
breaking: 2A silver contacts: 250V
Minimum load:. 100mA 10V silver contacts
initial contact resistance:
Money: <10mohm
Gold: 50mohm
velleman
H251B
17 Items

Specific References

EAN13
5410329267889
