• -25%
Miniature pcb slide switch 1p on-on 0.1' velleman - 3

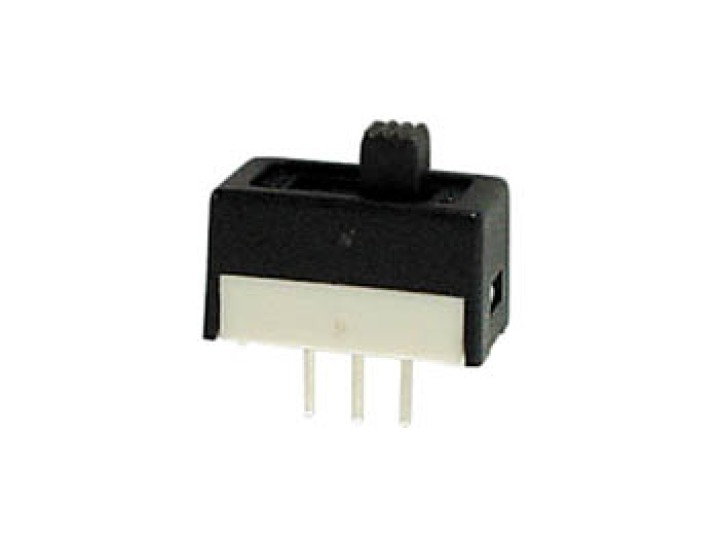

Miniature pcb slide switch 1p on-on 0.1'

REF : H251A

€4.16
€3.12 Save 25%
Specifications pin spacing: 0.1" / 2.54mm switching position: left: on middle: none right: on contact rating: 6A with resistive load of 120Vac or 2

Volume discounts

2 3 4 5
€3.12 €2.63 €2.29 €2.00
Quantity

The minimum purchase order quantity for the product is 2.

: 13 Items

Emplacement : -()VAL5



Security policy



Delivery policy



Terms of Sales


Specifications

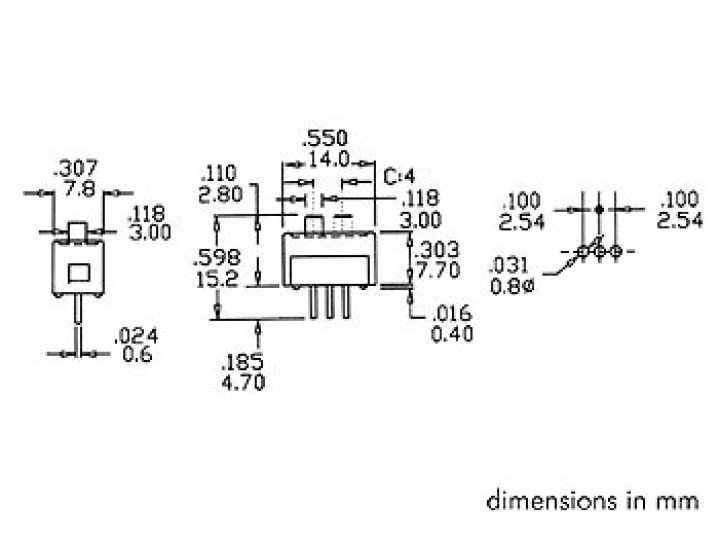

pin spacing: 0.1" / 2.54mm
switching position:
left: on
middle: none
right: on
contact rating:
6A with resistive load of 120Vac or 28Vdc
2A with resistive load of 250Vac
mechanical life: 2000 operations
insulation resistance: 1000Mohm under 500V
dielectric strength:
between contacts: 1000Veff
between contacts and neutral point: 2000Veff 50Hz
operating temperature: -40°C to +85°C
breaking capacity: silver contacts 2A / 250V
minimum load: silver contacts 100mA 10V
initial contact resistance:
silver: <10mohm
gold: 50mohm
velleman
H251A
13 Items

Specific References

EAN13
5410329267872
