Specifications switching position: left: on (TERM. COMM. : 2-1, 5-4) middle: none right: on (TERM. COMM. : 2-3, 5-6) contact rating: 6

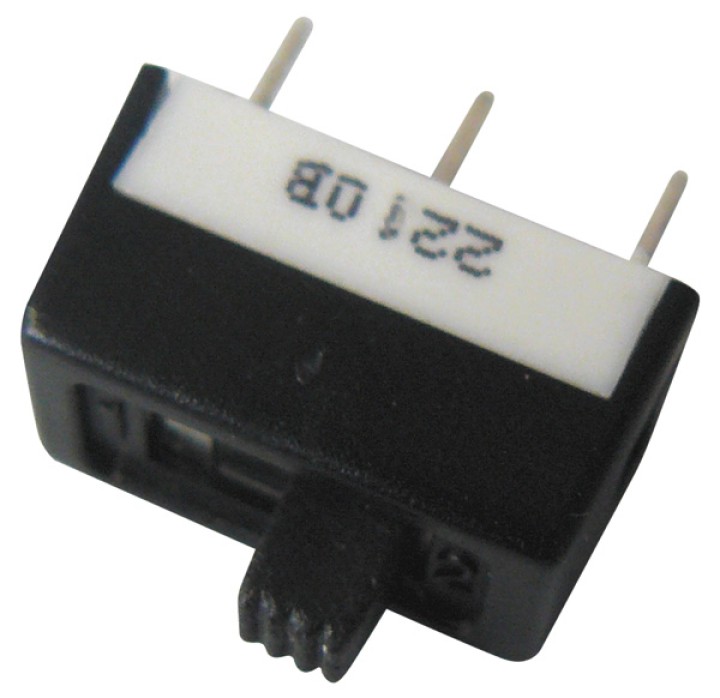

Slide switch 2p on on
REF : TS11
€3.48
€2.61 Save 25%
Specifications switching position: left: on (TERM. COMM. : 2-1, 5-4) middle: none right: on (TERM. COMM. : 2-3, 5-6) contact rating: 6
: 24 Items
Emplacement : -()VAL5
Security policy
Delivery policy
Terms of Sales
Specifications
switching position:
left: on
(TERM. COMM. : 2-1, 5-4)
middle: none
right: on
(TERM. COMM. : 2-3, 5-6)
contact rating:
6A with resistive load of 120Vac or 28Vdc
2A with resistive load of 250Vac
electrical life: 30000 actuations at full load
contact resistance: initially max. 10mohm
insulation resistance: min. 1000Mohm
dielectric strength: 1000Vrms at sea level
operating temperature: -30°C to +85°C
materials:
case: diallyl phthalate (DAP)
slide handle: nylon
housing: stainless steel
contacts: coin silver, silver-plated
centre contacts and terminals: brass, silver-plated
