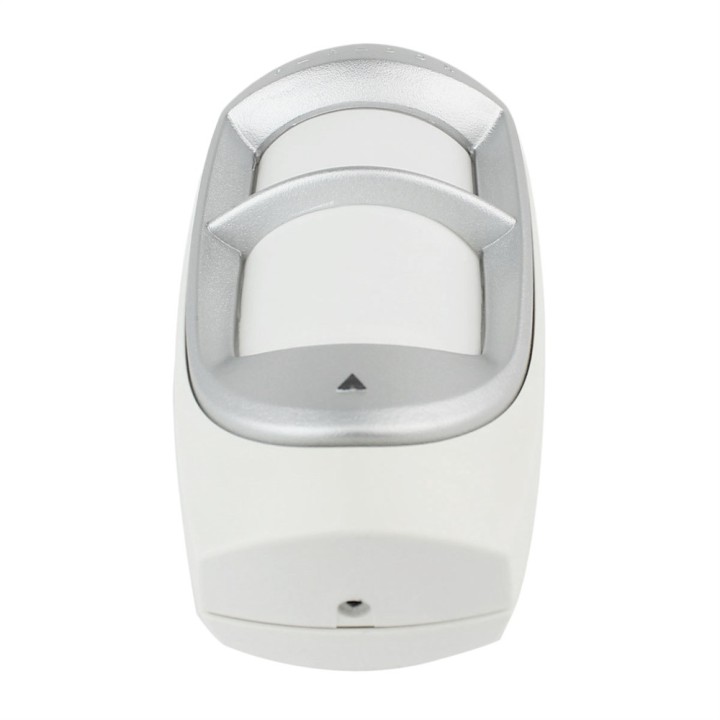

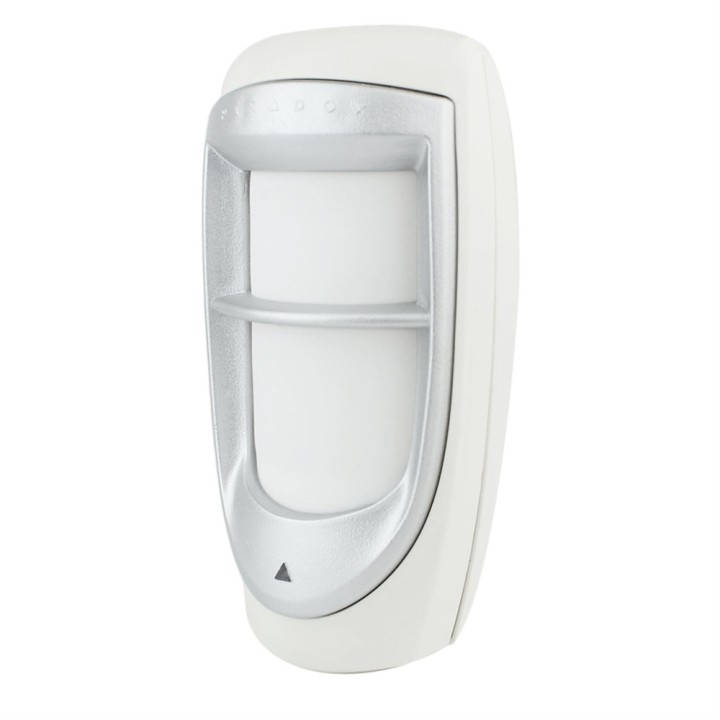

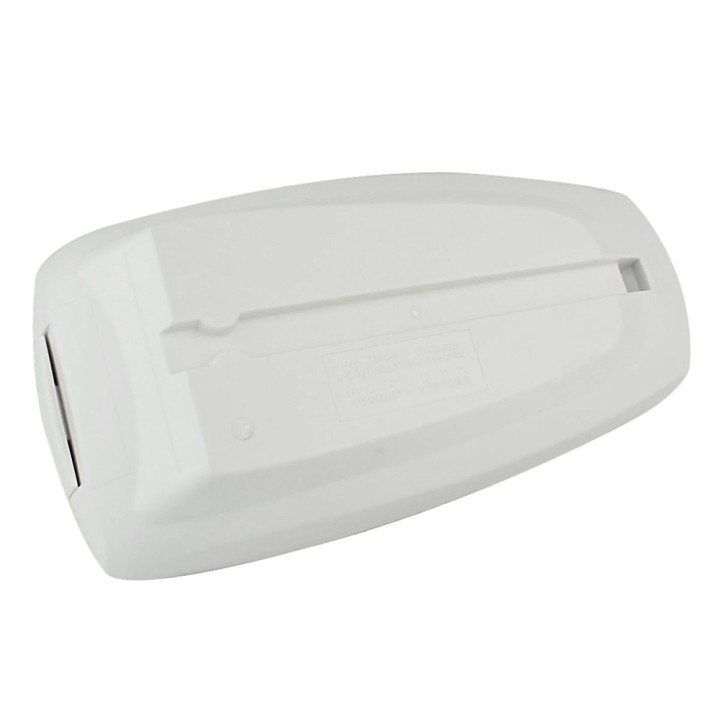

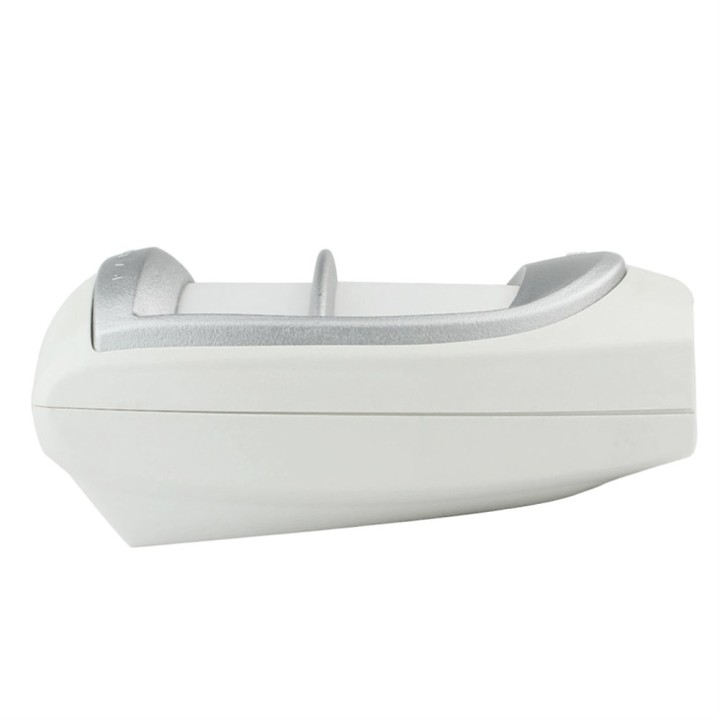

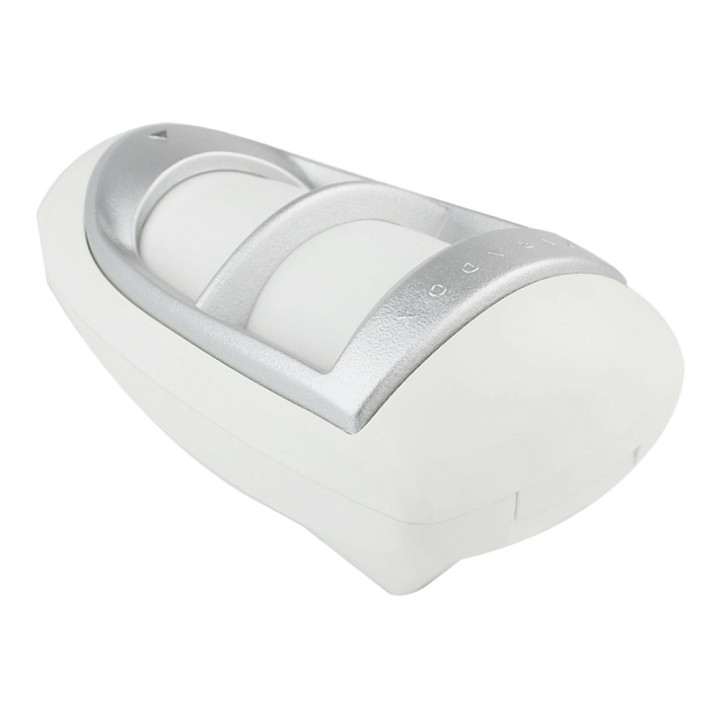

Weather Proof Outdoor Dual PIR detector / Motion Sensor with True Motion Recognization & Pet-immune Function

Brief Introduction

DG-85 is a kind of PIR intrusion detector integrating the most advanced securtiy technology. It adopts 2 dual PIR sensors wtih high accuracy, intelligent digital chip, advanced, of tware technology, which can help it to make an accurate judgment of true intruder or other interfernce that can cause wrong alarm. And it is with function of automatic memory of environmental change, which can avoid wrong alarm caused by hot & cold air, operation machine interference. It can prevent effectively the interference caused by a 25kg past or 10 cats, insect, mouse, birds etc. Its super filter can be used indoor and outdoor. This has clear various interference that common PIR detector can't overcome; and put an end to wrong alarm and miss alarm. DG-85 has two different working modes: bus mode and relay mode, can be used for all kinds of control panels on the market.


Specifications
Input Voltage: 9 to 16V DC
Current Drain: 30mA 12V DC
Detecting Range: 11.6m * 11.6m
Detecting Angle: 90 degree

Alarm output: NC > 100MA/28V DC
Anti white light resistance: >20000LUX
Installation height: 2m to 2.7m

Tamper switch: NC. 100mA/20V DC
PIR Section: Lens Date
No. Of curtain Beams (11+11+9) * 2= 62
Tripping Indication:
Indicator lights for about 10 to 30 seconds

Anti-EMI/RFI: 10V/m (10MHz - 1000MHz)
Motion test: 0.2m/s -3.5m/s (0.6ft-11ft)

Environmental:
Operating Temp: -10 to 50 centi-grade
Humidity: 5% to 95%(RH)
Storage Temp: -20 to 60 centi-grade
Physical size: 176*85*69mm

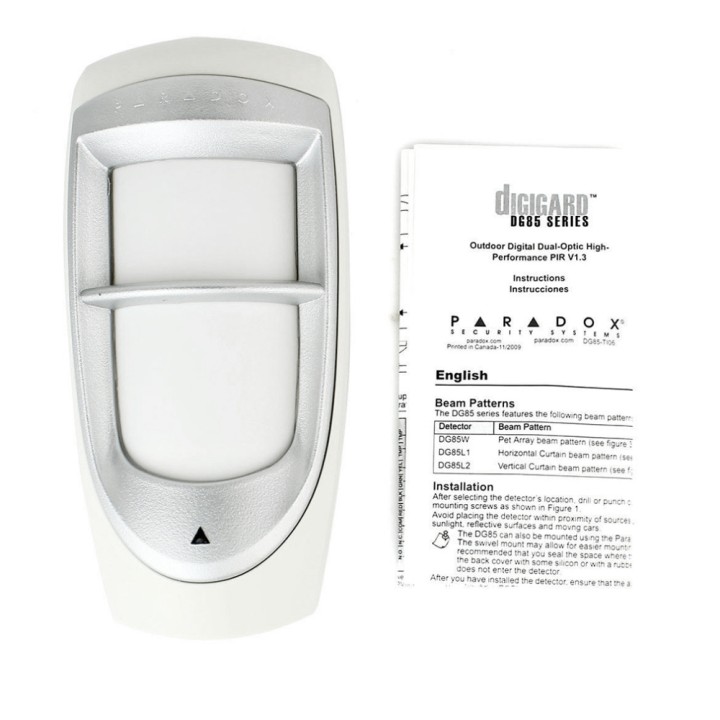

Package content:
1 x Wired PIR Detector
