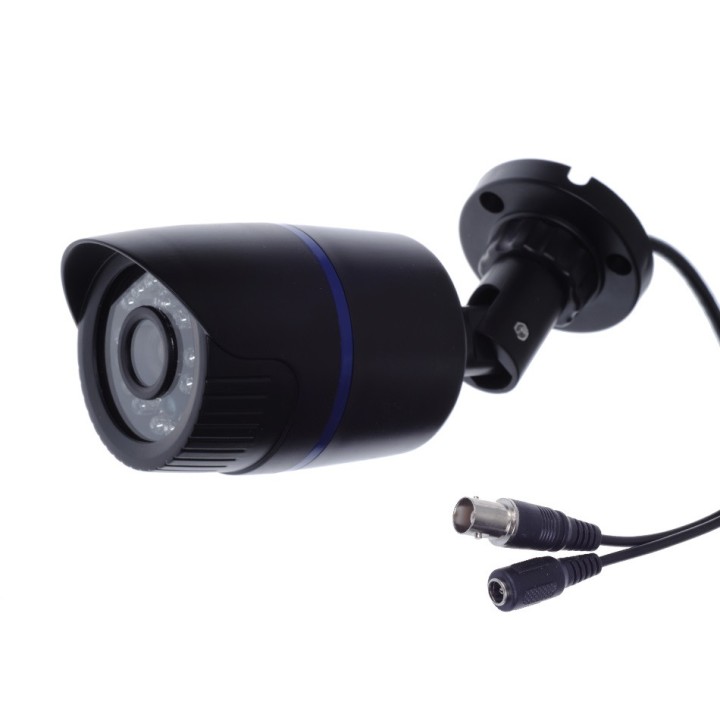

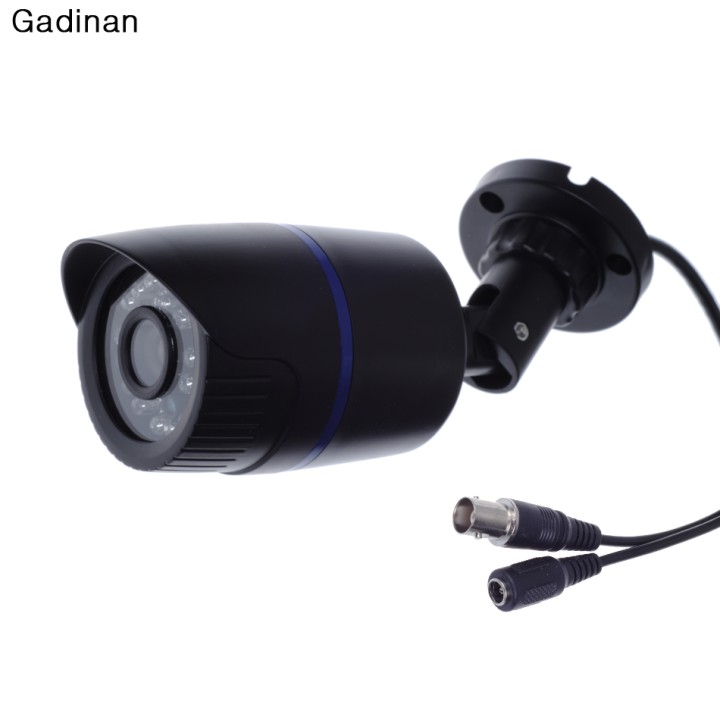

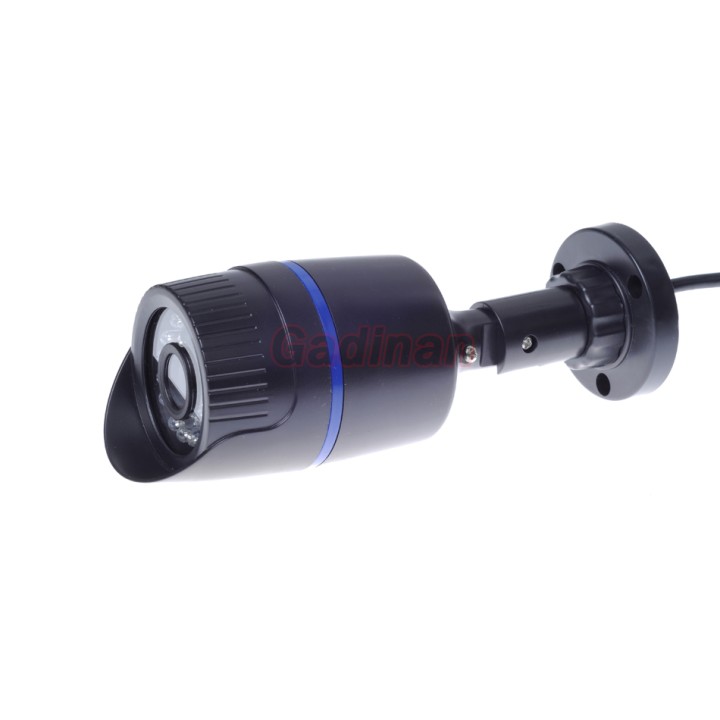

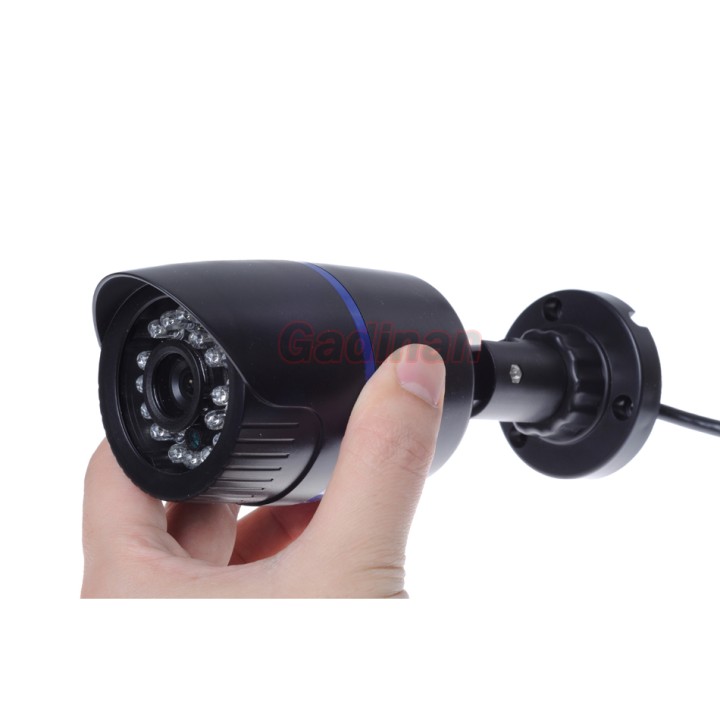

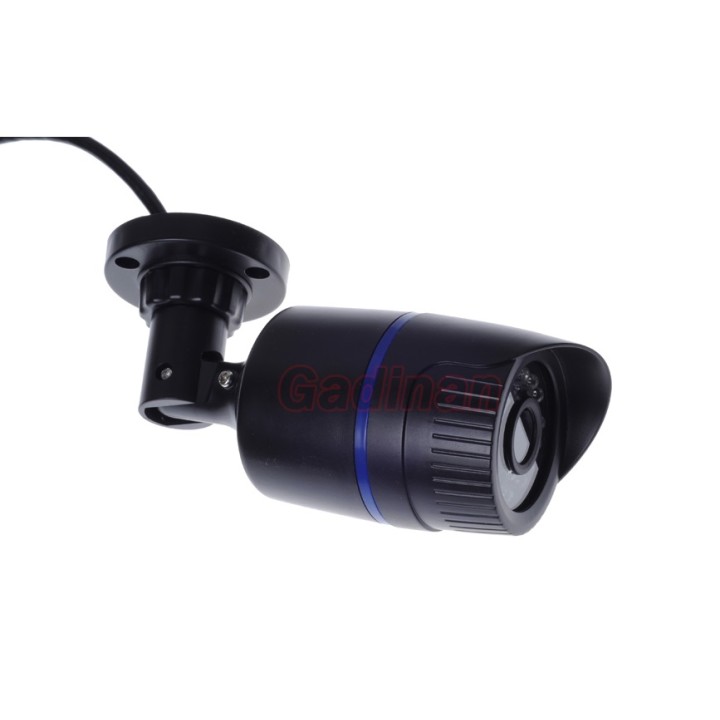

Camara video ccd color ir 1 3 estanca 24 led 700tvl vision nocturna infrarojo vigilancia

1/3' Sony CCD Sensor pickup device
Built-in 3.6mm Lens
Auto Gain Control (AGC)
Built-in auto gain control (AGC) circuit.
The color camera can get high definition picture in low Lux condition.
Auto Electronic Shutter (AES)
Built-in auto electronic shutter (AES) function.
The color camera's AES speed can get reach 1/100,000s.
Night-time Vision
Lux with IR LED ON. Aadopt Taiwan high quality IR LED,
having very goog night-vision effect.
24 high quality IR LED for 20 Meters distance
Waterproof design (IP66) for outdoor/indoor
Smart and Beautiful Design
Compact and light weight
Suitable for mounting on wall and ceiling
Simple and easy installation

Pick Up Element :1/3' SONY Color CCD
TV System : PAL/NTSC available
Lens : Built-in 3.6 mm
CCD Total Pixels : NTSC: 510 (H) x 492 (V)
PAL : 500 (H) x 582 (V)
Horizontal Resolution : 420TV Lines
S/N Ratio More than 48dB
Clock Frequency (MHZ) NTSC : 19.0699, PAL: 18.9375
Scanning System 2:1 interlace
Minimum Illumination 0.0 Lux (with IR LED ON)
Sync System Internal, Negative Sync.
Auto Electronic Shutter NTSC: 1/60~1/100,000 sec.
PAL: 1/50~1/100,000 sec.
Gamma Correction 0.45
IR Power On CDS Auto Control
IR Distance 20 Meters (with 24 Unit Infrared LED)
IR Status Under 10 Lux by CDS
Video Output Composite 1.0V p-p at 75 ohm
Auto Gain Control Auto
Water Resistance IP66
Operational Humidity within 95%RH
Operation Temperature -10 ? TO 45 ?
Supplied Voltage DC12V(+/-10%) / 300mA
Dimension 85mm x 58mm x 70mm
Weight Approx. 600g
