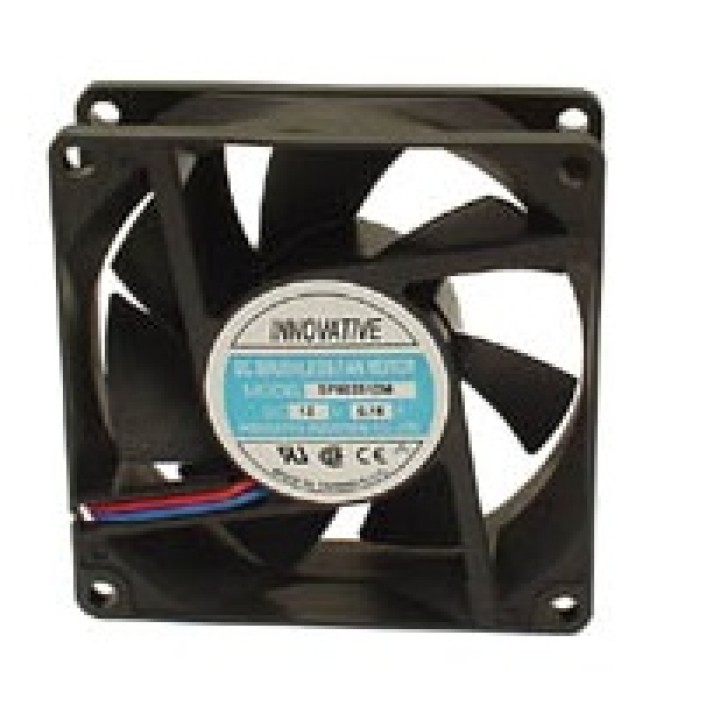

Electric ventilator 12vdc needle bearing ventilator, 80x80x25mm electric ventilators 80x80x25mm bss12 8lc electric ventilator 12 View larger

Electric ventilator 12vdc needle bearing ventilator, 80x80x25mm electric ventilators 80x80x25mm bss12 8lc electric ventilator 12

Specifications

  • type: SP802512M
  • size: 80 x 80 x 25mm
  • bearing: sleeve
  • rated voltage: 12Vdc
  • airflow: 27m³/hr

5,75 €

146 Items

Quantity
Price
5
5,46 €
10
5,18 €
20
4,60 €
50
4,31 €
100
4,03 €
200
3,74 €
500
3,45 €
1000
3,16 €

V1280

Description

type : SP802512M
size : 80 x 80 x 25mm
bearing : sleeve
rated voltage : 12Vdc
air flow : 27m³/hr
current : 0.16A
speed : 2800rpm
noise (at 1m) : 32dBA
connection : leads
construction : plastic housing and blades (to UL94V-0 rating)
operating temperature :
sleeve bearing : -10°C to +65°C
ball bearing : -30°C to +75°C
insulation resistance : 10Mohm min. at 500Vdc
dielectric strength : 5mA max. at 500Vac (one minute)
Specifications

* type: SP802512M
* size: 80 x 80 x 25mm
* bearing: sleeve
* rated voltage: 12Vdc
* airflow: 27m³/hr
* current: 0.16A
* speed: 2800rpm
* noise (at 1m): 32dBA
* connection: leads
* construction: plastic housing and blades (to UL94V-0 rating)
* operating temperature:
o sleeve bearing: -10°C to +65°C
o ball bearing: -30°C to +75°C
* insulation resistance: 10Mohm min. at 500Vdc
* dielectric strength: 5mA max. at 500Vac (one minute)
