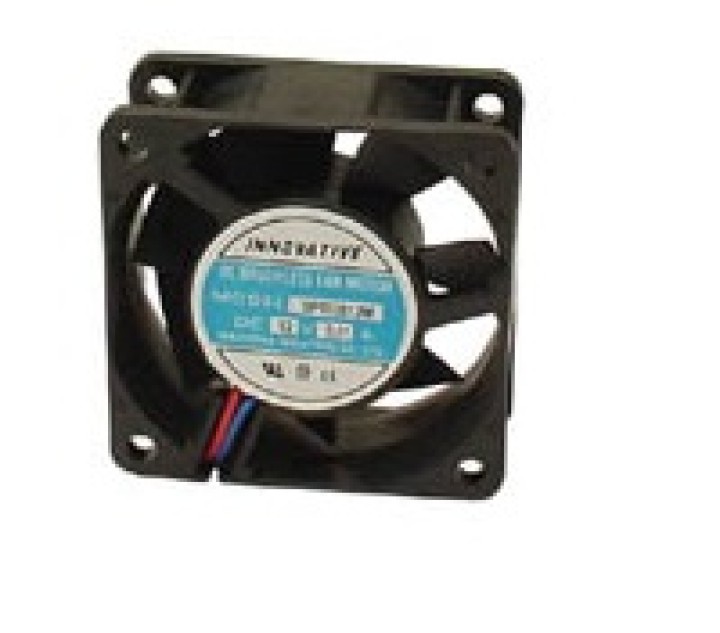

Electric ventilator 12vdc needle bearing ventilator, 60x60x25mm electric ventilators 12vdc needle bearing ventilators, 60x60x25m View larger

Electric ventilator 12vdc needle bearing ventilator, 60x60x25mm electric ventilators 12vdc needle bearing ventilators, 60x60x25m

Specifications

  • type: SP602512M
  • size: 60 x 60 x 25mm
  • bearing: sleeve
  • rated voltage: 12Vdc
  • airflow: 16m³/hr

4,96 €

93 Items

Quantity
Price
5
4,71 €
10
4,46 €
20
3,97 €
50
3,72 €
100
3,47 €
200
3,22 €
500
2,98 €
1000
2,73 €

V1260

Description

type : SP602512M
size : 60 x 60 x 25mm
bearing : sleeve
rated voltage : 12Vdc
air flow : 16m³/hr
current : 0.11A
speed : 3200rpm
noise (at 1m) : 25dBA
connection : leads
construction : plastic housing and blades (to UL94V-0 rating)
operating temperature :
sleeve bearing : -10°C to +65°C
ball bearing : -30°C to +75°C
insulation resistance : 10Mohm min. at 500Vdc
dielectric strength : 5mA max. at 500Vac (one minute)
Specifications

* type: SP602512M
* size: 60 x 60 x 25mm
* bearing: sleeve
* rated voltage: 12Vdc
* airflow: 16m³/hr
* current: 0.11A
* speed: 3200rpm
* noise (at 1m): 25dBA
* connection: leads
* construction: plastic housing and blades (to UL94V-0 rating)
* operating temperature:
o sleeve bearing: -10°C to +65°C
o ball bearing: -30°C to +75°C
* insulation resistance: 10Mohm min. at 500Vdc
* dielectric strength: 5mA max. at 500Vac (one minute)
