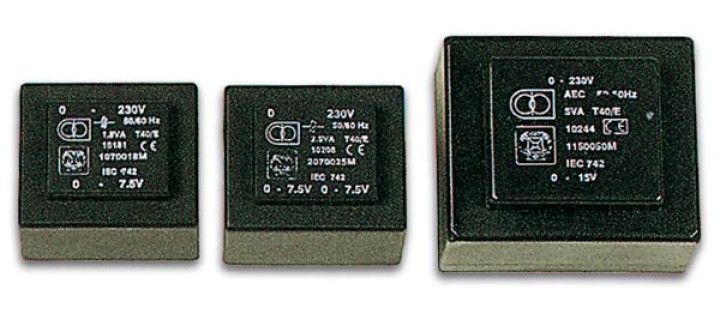

Molded mains transformer 220v power 3.8va 1 x 24v / 0.58a 1 x 230v transformer 1240038m
REF : 1240038M
€12.42
specifications voltage: 1 x 24V current: 1 x 0.158A Insulation resistance:> 5Mohm / 500Vdc dielectric strength:> 5kV min. designed for an ambient temperature of max. 40
: 3 Items
Emplacement : -()R3M4
Security policy
Delivery policy
Terms of Sales
specifications
voltage: 1 x 24V
current: 1 x 0.158A
Insulation resistance:> 5Mohm / 500Vdc
dielectric strength:> 5kV min.
designed for an ambient temperature of max. 40 ° C
material of thermal class E, max. 120 °
protection against short-circuits up to 3VA
possibility of thermal fuse protection
max. for class E: 95 ° C
Primary voltage: 230V ± 10%, 50/60Hz
secondary voltage tolerance: 7% - 3% at 230V and maximum load
means of welding power bath perfect wave
CE
creepage distances according to IEC742
figure:
1 * two bedrooms coil
2 *: primary winding
3 *: encapsulation epoxy resin
4 *: secondary winding
5 *: terminal lugs
6 *: polyamide
7 *: magnetic core
8 *: safety transformer
* 9: protected against short-circuits
10 *: primary voltage
11 *: power / temperature ratings
12 *: manufacturer's
13 *: order reference
14 *: authorization:
15 *: nominal secondary voltages
1240038M
3 Items
Data sheet
- Affaire
- Non
Specific References
- UPC
- 541032925883
- EAN13
- 5410329258832
