30VA transformer mold for mounting on printed circuit encap 1x18v tr / 1.667aei66

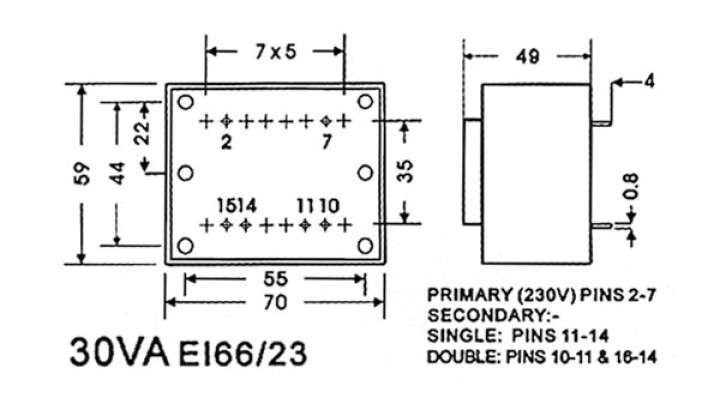

specification

voltage: 1 x 18V
Current: 1 x 1.667A
Insulation resistance:> 5Mohm / 500VDC
dielectric strength:> 5kV min.
designed for an ambient temperature of max. 40 ° C
materials thermal class E, max. 120 °
protection against short circuits to 3VA
possibility of thermal fuse protection
max. for class E: 95 ° C
Primary voltage: 230V ± 10%, 50 / 60Hz
secondary voltage tolerance: + 7% - 3% at 230V and maximum load
perfect solderability for wave bath
CE
creepage distances according IEC742

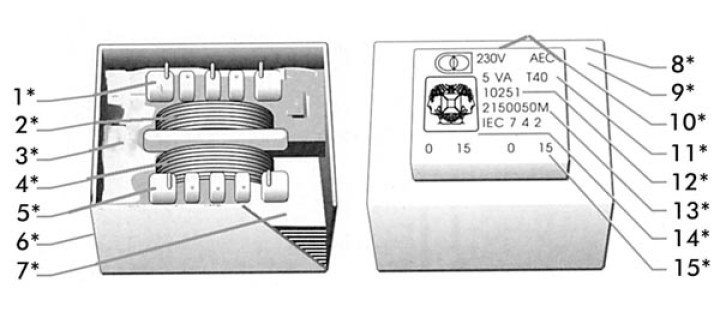

figure:
1 *: bobbin with two chambers
* 2: primary winding
3 *: encapsulation in epoxy resin
4 *: secondary winding
5 *: connection lugs
6 *: polyamide housing
7 *: magnetic core
8 *: safety transformer
* 9: protected against short-circuits
10 *: primary voltage
11 *: power / temperature ratings
* 12: Reference manufacturer
13 *: order reference
14 *: Agréation:
15 *: nominal output voltages
