Spécifications * tension: 1 x 12V * courant: 1 x 0.307A * résistance d'isolement: >5Mohm / 500Vcc * pouvoir diélectrique: >5kV min. * conçu pour une température ambiante de
Mould transformer 220v 3.8va 1 x 12v x 0.307 a electric transformer tension switch 230vac 12vac
REF : 1120038M
€8.25
Spécifications * tension: 1 x 12V * courant: 1 x 0.307A * résistance d'isolement: >5Mohm / 500Vcc * pouvoir diélectrique: >5kV min. * conçu pour une température ambiante de
: 18 Items
Emplacement : -()R3O2
Security policy
Delivery policy
Terms of Sales
specifications
* Voltage: 1 x 12V
* Current: 1 x 0.307A
* Insulation resistance:> 5Mohm / 500Vdc
* Dielectric strength:> 5kV min.
* Designed for an ambient temperature of max. 40 ° C
* Materials thermal class E, max. 120 °
* Protection against short-circuits up to 3VA
* Possibility of thermal fuse protection
* Max. for class E: 95 ° C
* Primary voltage: 230V ± 10%, 50/60Hz
* Secondary voltage tolerance: 7% - 3% at 230V and maximum load
* Means perfect solder bath wave power
* CE
* Distances according to IEC742 creep

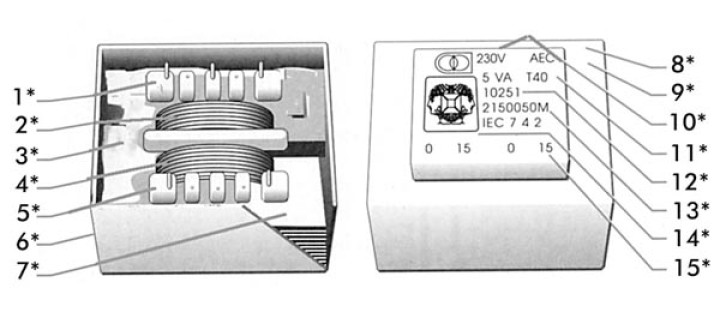

* Figure:
o 1 * two bedrooms coil
* No. 2: primary winding
o 3 *: encapsulation epoxy resin
o 4 *: secondary winding
o 5 *: terminal lugs
o 6 *: polyamide
o 7 *: magnetic core
o 8 *: safety transformer
o 9 *: protected against short-circuits
o 10 *: primary voltage
11 * o: power / temperature ratings
o 12 *: manufacturer's
o 13 *: order reference
o 14 *: authorization:
o 15 *: nominal secondary voltages
