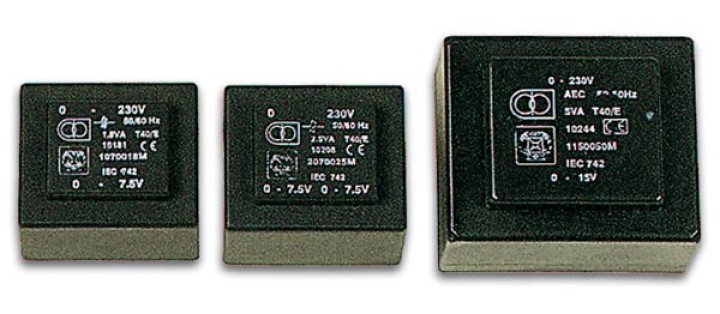

18VA transformer mold 1 x 18v / 1x 1.111a 1180180M

specifications

voltage: 1 x 18V
Current: 1 x 1.111A
power: 18VA
insulation resistance:> 5mohm / 500VDC
Dielectric strength:> 5kV min.
designed for an ambient temperature of max. 40 ° C.
materials thermal class E, max. 120 °
protection against short circuits up to 3VA
possibility of thermal fuse protection
max. for class E: 95 ° C
Primary voltage: 230V ± 10%, 50/60 Hz
secondary voltage tolerance: + 7% - 3% at 230V and maximum load
perfect solderability for wave bath
CE mark
creepage distances and clearances according to IEC742
figure:
1 *: bobbin with two bedrooms
* 2: primary winding
3 *: encapsulation in epoxy resin
4: Secondary winding
5 *: Terminal Lug
6 *: polyamide housing
7 *: magnetic core
8 *: safety transformer
* 9: protected against short-circuits
10 *: input voltage
11 *: power / temperature ratings
12 *: manufacturer's reference
13 *: order reference
14 *: Agréation:
15 *: Nominal output voltages
