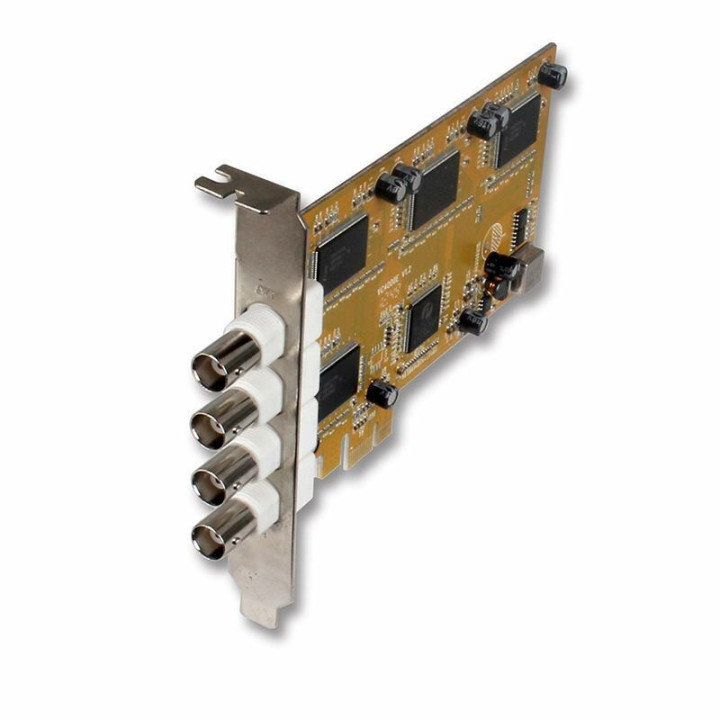

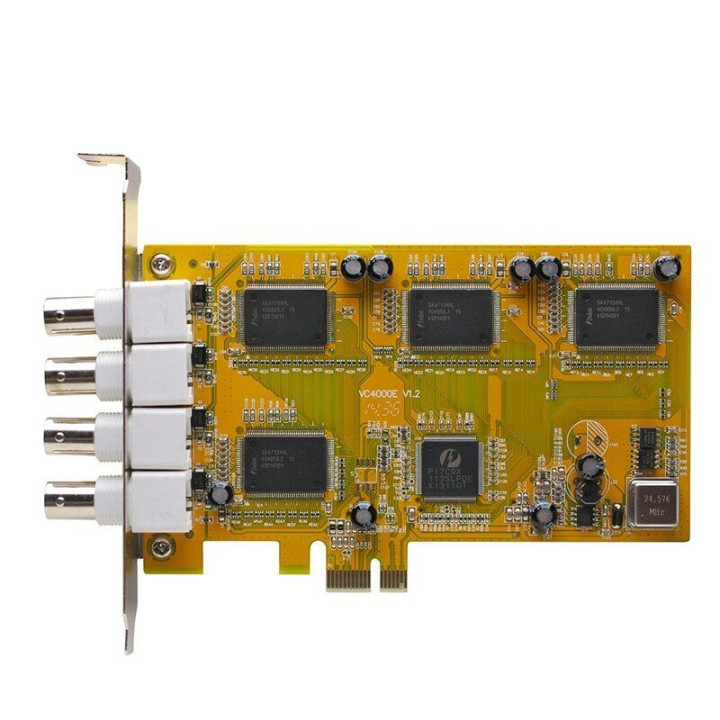

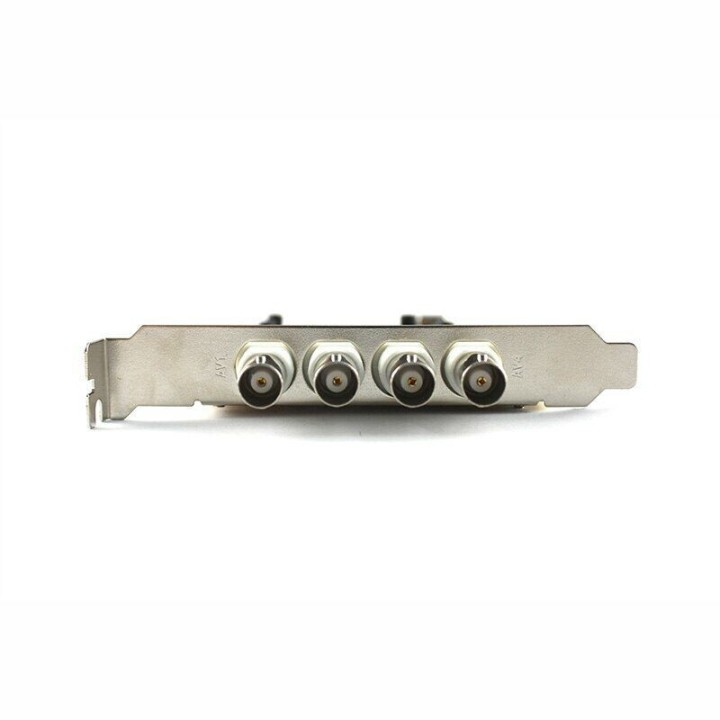

4 Channel PCI Video Capture Card 4 Port BNC Development Kit Medical Image Capture Monitor SDK VC4000

4 Channel PCI Video Capture Card 4 Port BNC Development Kit Medical Image Capture Monitor SDK Saa7134HL Chip PI7C8agglomA VC4000
VC4000 supports WINXP and WIN7 32-bit systems.
This card is a four-way real-time channel, used to cooperate with parking lots or use with medical equipment.
Other monitoring functions of this card:
Display resolution during monitoring: 1440*900, the latest version, supports mobile phone monitoring!
◆ Interface: PCI slot
◆ PNP support, support for Windows 2000/XP/Win7 32
◆ Supports one machine with multiple cards, one card with four channels, supports PAL/NTSC, and all channels work at the same time without interfering with each other.
◆ Software video codec:
Support MPEG 4 sample profile codec
Compression rate: 64K-2Mbps
Frame rate 1-30 frames/sec optional
CIF MPEG 4 Video Recorder Support
◆ Provide MPEG4 compression engine, which can compress multi-channel video images.
◆ Support compressed stream/preview stream to overlay year/month/day/hour/min/sec, text function
◆ Provide AVI dynamic image capture.
◆ Capture dynamic images as static JPG images and save them to disk.
◆ Provides a complete secondary development package, which can be applied to the development of systems such as security monitoring, medical care, transportation and banking.
