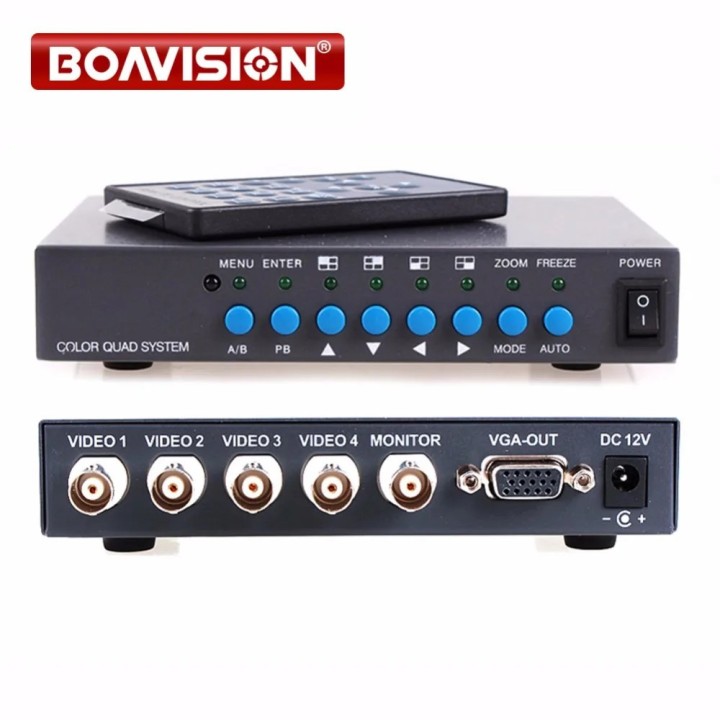

4CH Color Video Quad Processor Splitter For CCTV System

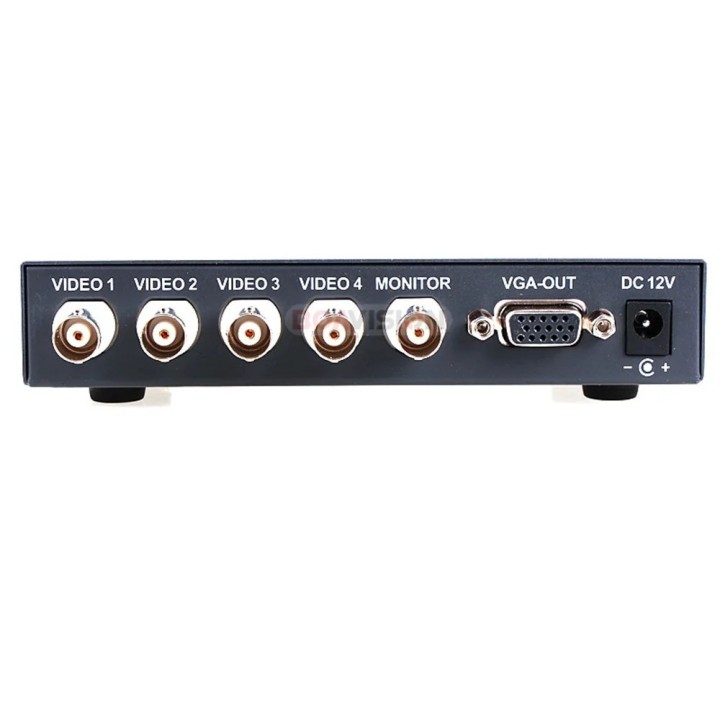

Connects up to 4/8 Channel Camera video signals
Adjustable for image brightness, saturation, contrast and color.
High Resolution Display Quality
NTSC: 720*480,60Hz. PAL: 720*576,50Hz
Multiple display mode
Eight picture, Four picture, Single picture, Picture in Picture and auto switch display mode
High performance freeze function
Flicker free image capture
High performance picture amplifying function
Selectable Zoom Area
A variety of characters information revealable
Camera title, real time and video loss information
Provides a wide range of input methods
Video loss detection can record the 60pieces of loss event reports. With a built-in buzzer

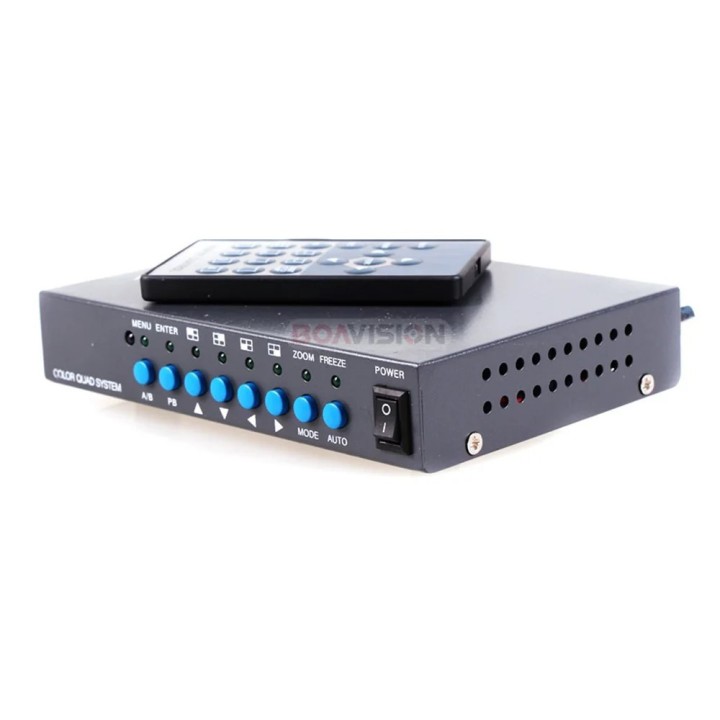

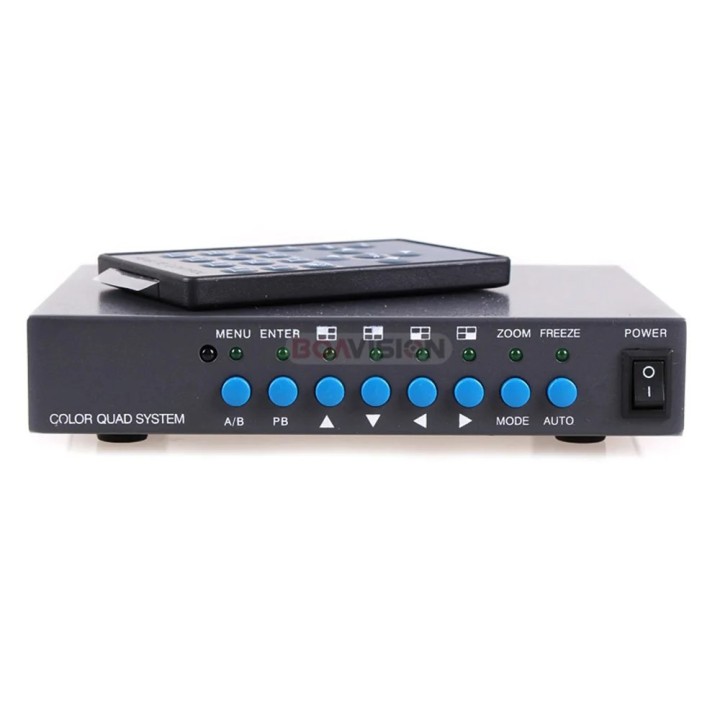

Button definition: short press not more than one seconds, long press more than 1 seconds.
1) [MENU]: Long press to enter main memu. Short press to enter four picture or eight picture.
2) [AUTO]: Long press to enter the full screen auto switch mode. Short press to enter the screen freeze function.
3) [ZOOM]: Long press to enter the zoom in fuction. Short press at first time to enter quad screen from full screen. Second short press to enter Picture in Picture.
4) [VCR]: Long press to enter playback function. Short press to to confirm the menu selection.
5) [1]: Displays the CH1 camera in the full screen format. It has “UP” function under operating menu.
6) [2]: Displays the CH2 camera in the full screen format. It has “DOWM” function under operating menu.
7) [3]: Displays the CH3 camera in the full screen format. It has “LEFT” or “DECREASE” function under operating menu.
8) [4]: Displays the CH4 camera in the full screen format. It has “RIGHT” or“INCREASE” function under
