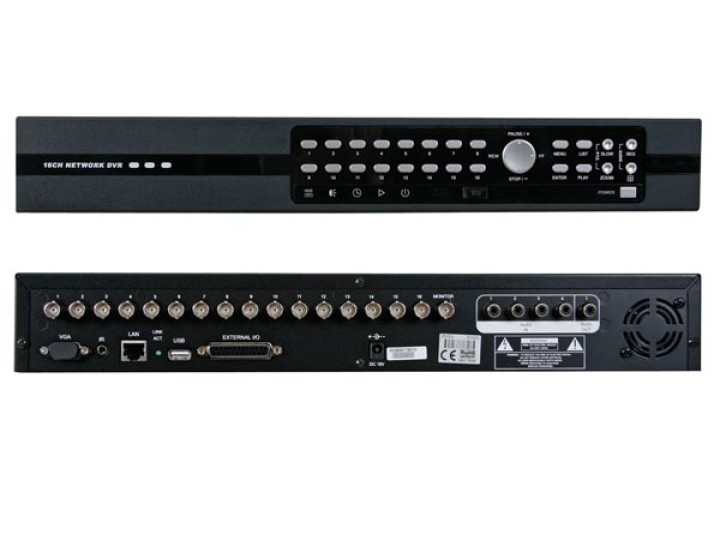

Digital 16 channel multiplexer quad mpeg 4 recorder ethernet usb

16-channel MPEG-4 real-time digital video recorder. USB and network backup, recording via motion detection, timer and alarm inputs. PTZ camera remote control via RS-485. SATA HD supported and high resolution VGA output.
Features

* MPEG-4 real-time compression format
* high resolution recording:
o frame: 720 x 480 pixels with 120 IPS / 720 x 576 pixels with 100 IPS
o CIF: 352 x 240 pixels @ 480 IPS / 352 x 288 pixels @ 400 IPS

* multiplex: allows live display, recording, playback and backup
* backup function: supports USB 2.0 flash drive and network backup
* intelligent motion trigger recording:
o advanced motion detection
o scheduled motion detection recording (with 3 adjustable parameters)

* system auto recovery after power reconnected
* supports daylight-saving function
* supports manual / timer / motion /alarm recording functions
* multi-language OSD: English, French, Dutch, German, Portuguese, Spanish, Czech, Hungarian, Greek, Chinese and Vietnamese
* user manual: English
* hard disks in option: 500GB HD500GB/S or 750GB HD750GB/S (not included)

Specifications

* video system: PAL
* video compression: MPEG4
* video input: 16 channels, composite video signal 1Vpp / 75 ohms BNC
* video output:
o main monitor: composite video signal 1Vpp / 75 ohms BNC
o call monitor: composite video signal 1Vpp / 75 ohms BNC

* maximum recording rate (PAL): 352 × 288 pixels @ 400 IPS
* image quality setting: best - high - normal - basic
* hard disk storage: built-in SATA type, support 2x HDD, support HDD capacity over 1TB (HDD not incl.)
* recording mode: manual / timer / motion / alarm / remote event
* refresh rate: 400 IPS for PAL
* audio I/O: 4 inputs / 1 output
* motion detection area: 16 × 12 grids per camera for all channels
* motion detection sensitivity: 1 parameter with 3 sensitivity levels (high, normal, low)
* pre-alarm recording: 8MB
* PTZ control: yes (via RS-485)
* alarm I/O: 16 inputs / 1 output
* digital zoom: 2 x (live & playback)
* key lock: yes
* video loss detection: yes
* camera title: up to 6 characters
* video adjustments: hue / colour / contrast / brightness
* date display format: YY/MM/DD, DD/MM/YY, MM/DD/YY, and off
* power source: 19VDC
* power consumption: < 64W
* operating temperature: 10°C ~ 40°C
* system recovery: system auto recovery after power reconnected
* dimensions: 430 x 65 x 338mm
