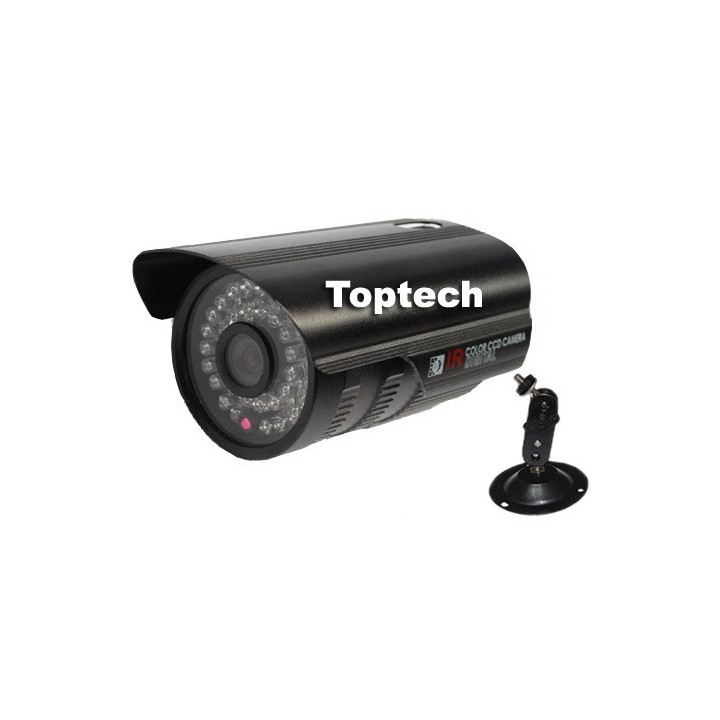

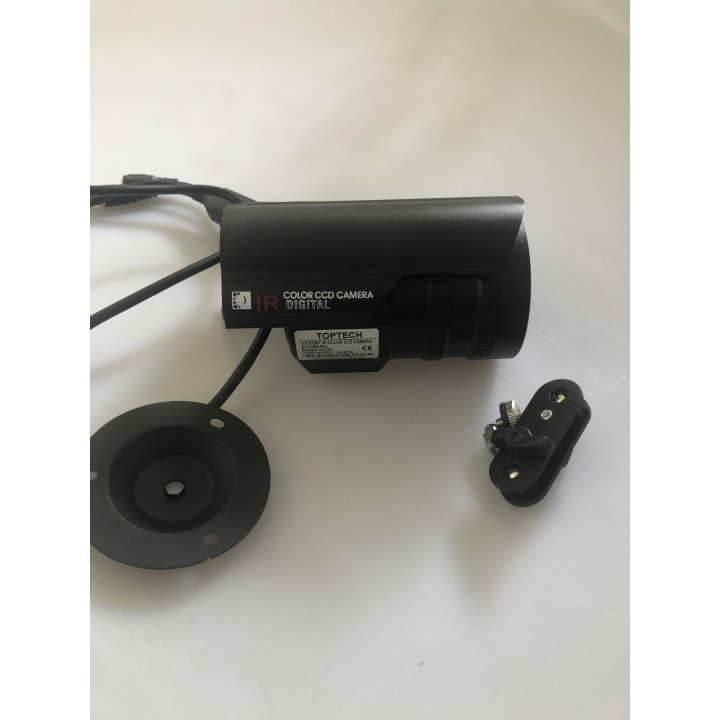

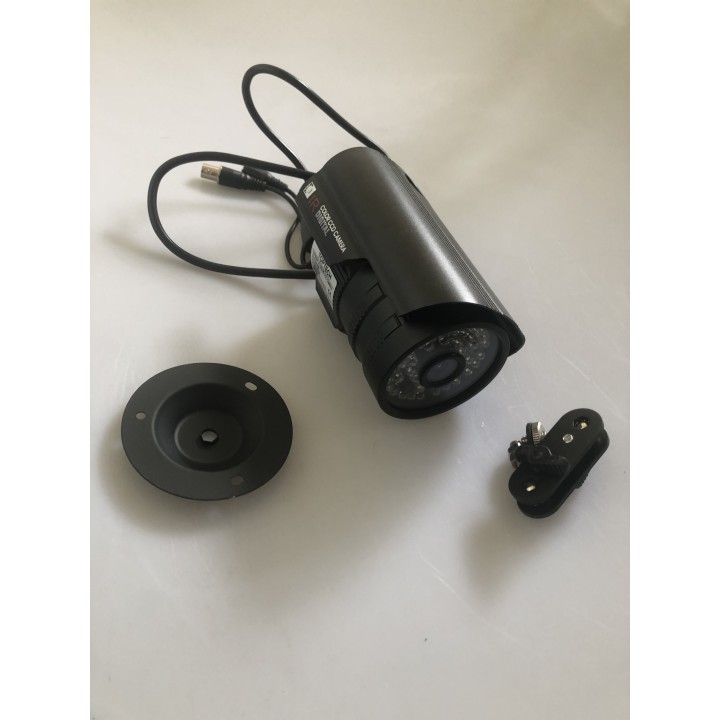

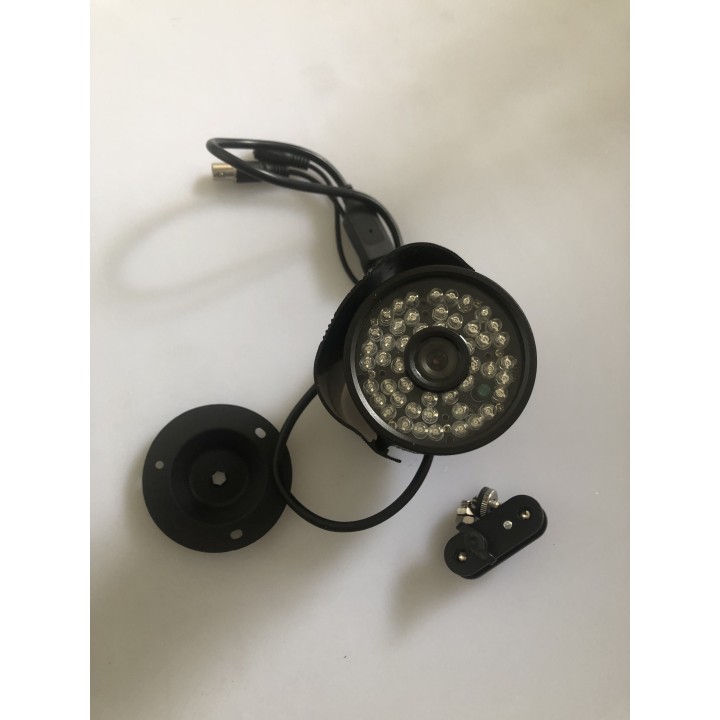

1/3"Sony Effio-A 900TVL 48 Led IR 35 Meters with OSD menu Indoor/Outdoor security night vision CCTV Camera with bracket

1/3"Sony Effio-A 900TVL 48 Led IR 35 Meters with OSD menu Indoor/Outdoor security night vision CCTV Camera with bracket
CCD vs CMOS

1,Under the same pixel size,CCD sensor's sensitivity is higher than the CMOS sensor.
2,The same size CCD sensor resolution is better than the CMOS sensor.
3,Compared with CMOS sensor,CCD sensor noise lower,makes image more clear.

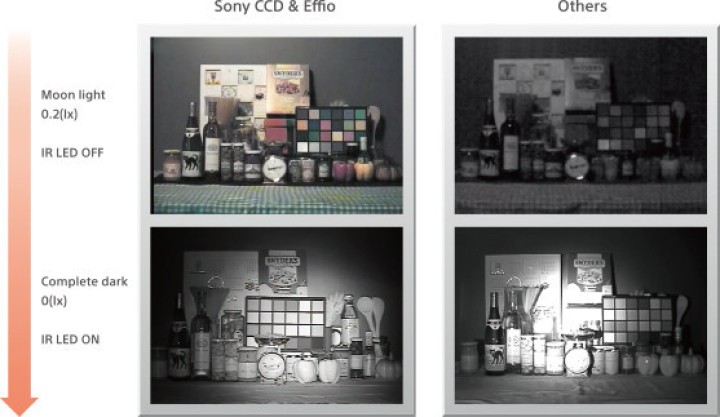

4,CCD sensor has better iamge then CMOS at night vision in low light.
4,CCD sensor has a natural image color,do not need IR-CUT filter.But the CMOS sensor need to work with IR-CUT filter,the image of CMOS will be color cast without a IR-CUT filter (the using life of IR-CUT is short).

That's why we strongly recommand CCD sensor but not CMOS.

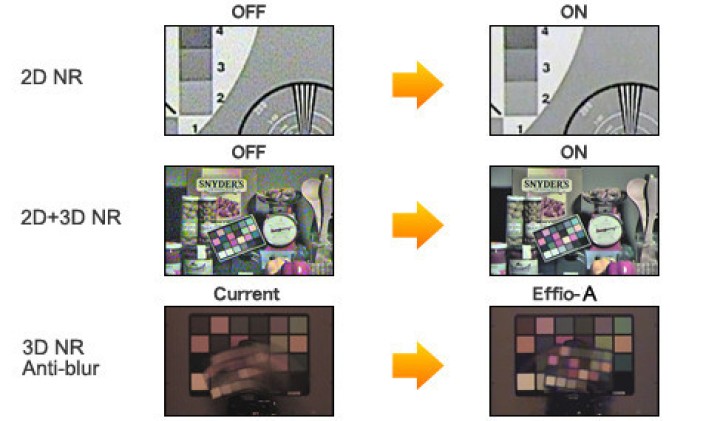

The Effio-A can realize the highest horizontal resolution over 900 TV lines in the Effio series. Also the ICs improved overall functions such as noise reduction (3D-NR), exposure optimization of infrared LED, wide dynamic range (WDR), or defog. And visibilities in different conditions with low light, infrared light, or high (low) contrast were greatly improved.

Main Features:
*Sony Effio-A 4151 CCD board
*Horizontal Resolution:Genuine 900TVL
*Effective Pixels:PAL:976(H)x760(V) & NTSC: 976(H)x760(V)

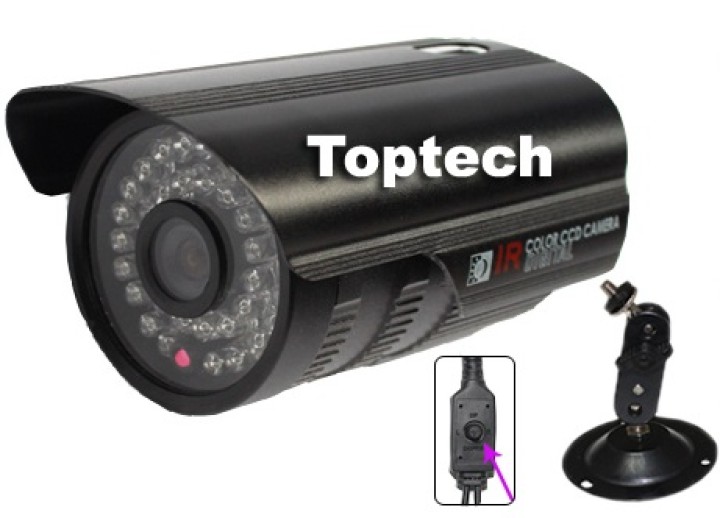

*With OSD (on-screen display) menu
*WDR(Wide Dynamic Range) Function
*Defog Function

Specifications:
Image Sensor:1/3" Sony Super HAD CCD II
Processor: Sony Enhanced Effio-A 4151 DSP
Horizontal Resolution: 900 TV Lines
Effective Pixels: PAL:976(H)x760(V) & NTSC: 976(H)x760(V)
Lens: 6mm standard (2.8/3.6/8/12/16mm Optional)
Signal system: NTSC / PAL
IR Illuminators: 48 Led
Minimum Illumination: 0.001 Lux,F1.2 (0 Lux IR ON)
WDR Yes
Defog Yes
Noise Reduction 3D-NR
Auto Iris Video / DC
Back Light Compensation Auto
S/N Ratio: 48db (AGC-OFF)

Motion Detection Yes
Digital Image Stabilizer Yes
BLC/HLC Yes
Automatic Scene Recognition Yes
ATR-EX2 Yes

OSD Flexible 8 languages
Shutter Speed: 1/60-1/100000 (second)
Video Output: 1.0Vp-p, 75 OHM

Power Supply: DC 12V (Sold separately)
Operation Temperature -10C ~ 50C / 0F ~ 110 F
Weatherproof YES

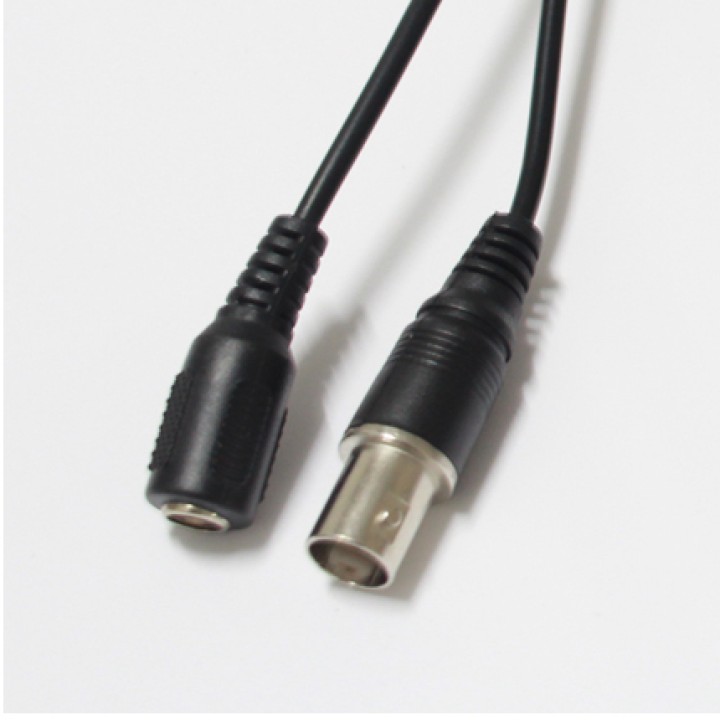

Connector Video:BNC
Power: DC Plug , 5.5mm
Dimensions / Weight 13cm x 7.5cm x 7.5cm / 0.65kg

Note: 6mm lens, PAL SYSTEM default of this camera. If the buyer want other size of lens, please notify us when bidding.

Effio-A
"Effio" means "Enhanced Features and Fine Image Processor", and it is a Sony signal processor which realizes high resolution, high S/N ratio and high color reproduction for security camera.

"Effio-A" Promises You No.1 Image Quality & Performance, Over 900TVL and it High-resolution processing. 900TVL camera which using Sony Effio-A solution provide you with high quality image recording. Below is the advantages of Effio-A camera:

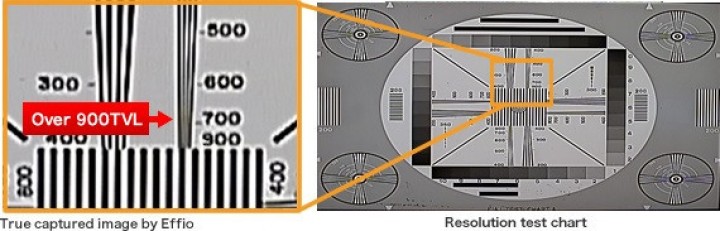

1.High Resolution
Higher horizontal resolution of over 900TVL by CCD image sensor
