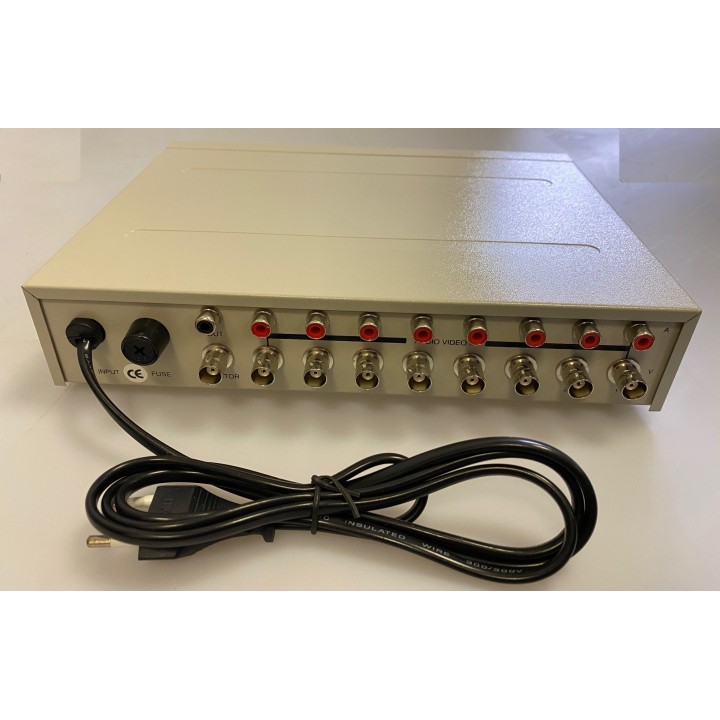

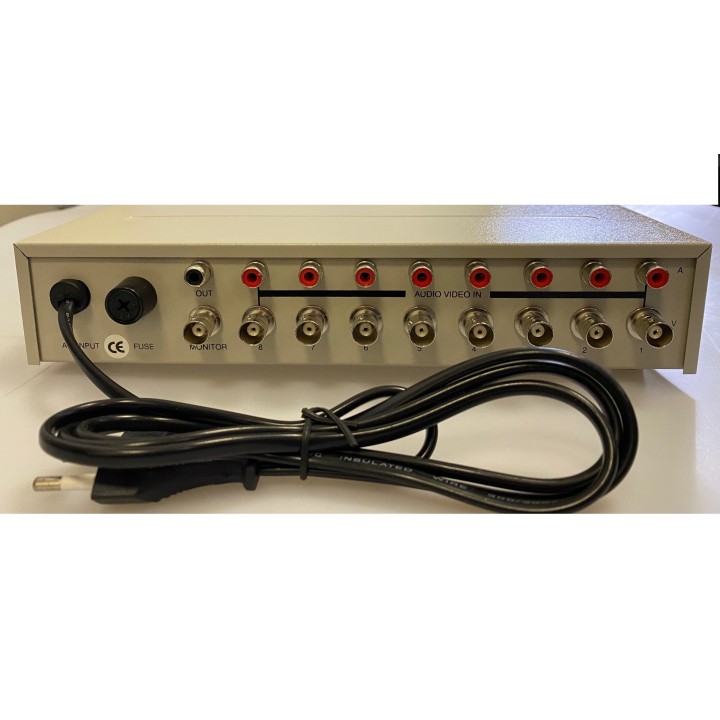

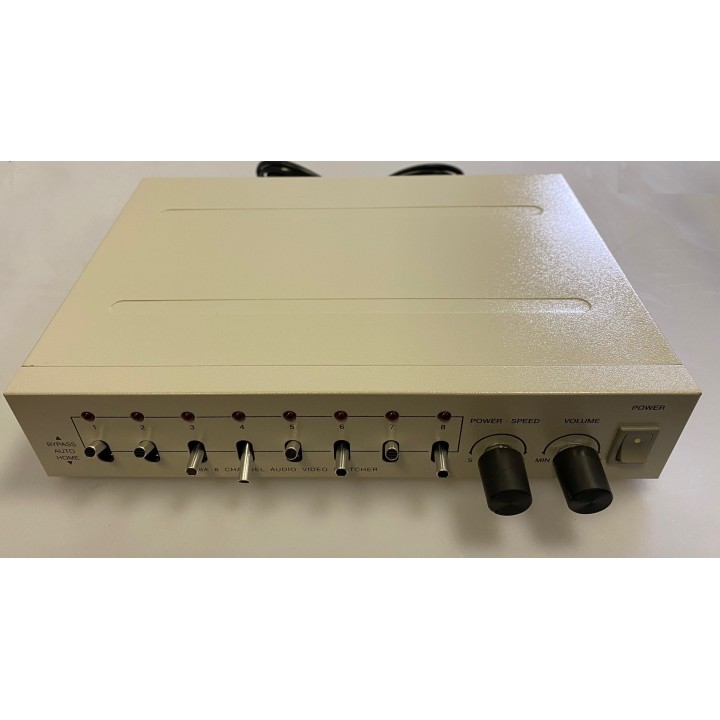

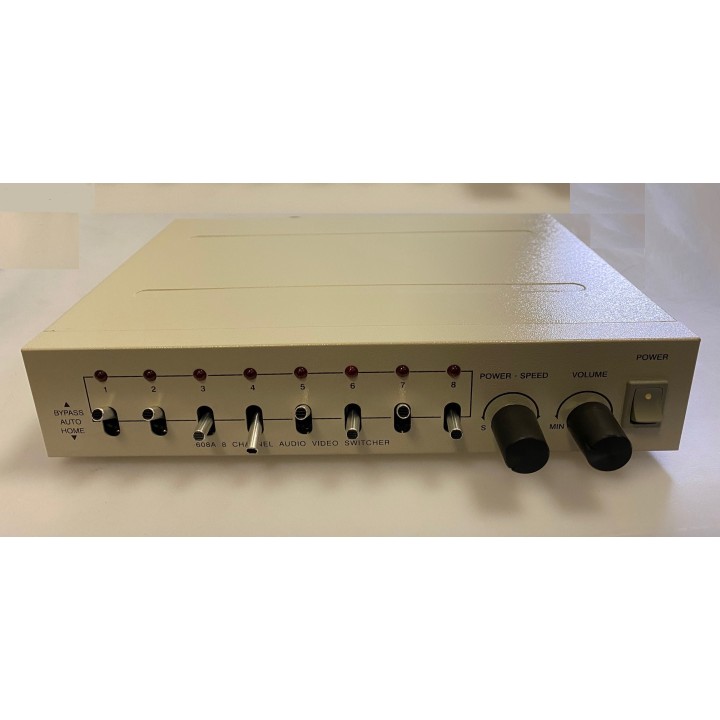

Selector video selectors 8 channel video selector + audio 8 channel audio video selector selector video selectors 8 channel vide

control : auto / bypass / home
video input : 1.0Vpp / 75ohm
video output : 2 outputs, 1.0Vpp / 75ohm
video bandwidth : 20MHz, within ± 3dB
crosstalk : >50dB
max. video input : 2.0Vpp
video gain : 0.8Vpp to 1.6Vpp
switching interval : adjustable, from ± 1 to 15 seconds
power consumption : 3.0W max.
video connector : BNC type, F type
channel lamp : red LED
input channels : 8 channels
operating temperature : -10°C to +60°C
construction : steel, off-white textured
Dimension : 212 x 218 x 45mm
weight : 1.4kg
Features

enables a single monitor to display the output for 1 to 8 cameras in automatic or manual sequence
the picture of each camera is displayed on the monitor for an operator-selected dwell period (1 to 15 seconds) / every camera output has a red LED which is lit if the picture of this camera is currently on-screen / unused camera positions may be bypassed without changing the sequence or the dwell time
designed to work with basic versions of modest closed-circuit video systems
housed in a heavy-gauge steel chassis / cover is protected by an off-white textured finish in baked enamel
