Specifications monitor: display size: 5.5' B/W resolution: > 420 TV lines geometry distortion: < 3% non-linear distortion: H < 12%, V < 8% input voltage: DC 12-24V power consumption: 12V in

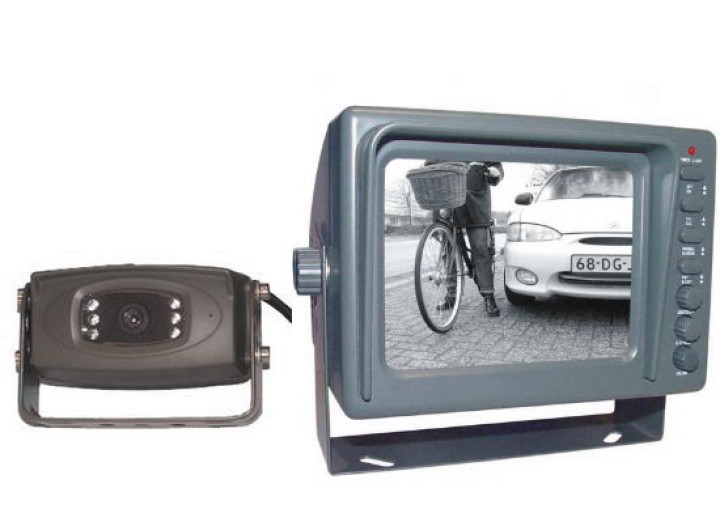

Video surveillance pack 12v special car truck bus coach (1 monitor + 1 water resistant camera)
REF : M12W12N
€207.50
Specifications monitor: display size: 5.5' B/W resolution: > 420 TV lines geometry distortion: < 3% non-linear distortion: H < 12%, V < 8% input voltage: DC 12-24V power consumption: 12V in
: 2 Items
Emplacement : J5 C1()R6E3
Security policy
Delivery policy
Terms of Sales
Dimension 180x240x180mm . Weight 2.56Kg
Specifications
monitor:
display size: 5.5' B/W
resolution: > 420 TV lines
geometry distortion: < 3%
non-linear distortion: H < 12%, V < 8%
input voltage: DC 12-24V
power consumption: 12V input : > 7.5W (24V input : >10W)
operating temperature: -15°C to +55°c
shockproof: 5G
dimensions: 177 x 122 x 191mm
weight: 1.83kg
camera:
pick-up element: 1/3' B/W CCD
scanning system: 625 TV lines (2:1 interlace)
number of pixels: 500 x 582 (320000 pixels)
lens: f3.6mm/F2.0
lens angle: 92°
synchronisation system: internal
scanning frequency: 15625kHz(H) / 50Hz(V)
horizontal resolution: > 420 TV lines
S/N ratio: > 48dB
video output: 1.0Vpp 75ohm
min. illumination: 0.05Lux (IR LEDs)
automatic iris: electrical & automatic
microphone: built-in
audio output: 0.36W (600 ohm)
power supply: DC 12V ± 0.5V (regulated)
operating temperature: -10°C to +50°C
material: ABS based
dimensions: 105 x 65 x 65mm
weight: 280g
cable length: 10m of 5-core cable + 0.8m A/V cable
Specifications
monitor:
display size: 5.5' B/W
resolution: > 420 TV lines
geometry distortion: < 3%
non-linear distortion: H < 12%, V < 8%
input voltage: DC 12-24V
power consumption: 12V input : > 7.5W (24V input : >10W)
operating temperature: -15°C to +55°c
shockproof: 5G
dimensions: 177 x 122 x 191mm
weight: 1.83kg
camera:
pick-up element: 1/3' B/W CCD
scanning system: 625 TV lines (2:1 interlace)
number of pixels: 500 x 582 (320000 pixels)
lens: f3.6mm/F2.0
lens angle: 92°
synchronisation system: internal
scanning frequency: 15625kHz(H) / 50Hz(V)
horizontal resolution: > 420 TV lines
S/N ratio: > 48dB
video output: 1.0Vpp 75ohm
min. illumination: 0.05Lux (IR LEDs)
automatic iris: electrical & automatic
microphone: built-in
audio output: 0.36W (600 ohm)
power supply: DC 12V ± 0.5V (regulated)
operating temperature: -10°C to +50°C
material: ABS based
dimensions: 105 x 65 x 65mm
weight: 280g
cable length: 10m of 5-core cable + 0.8m A/V cable
