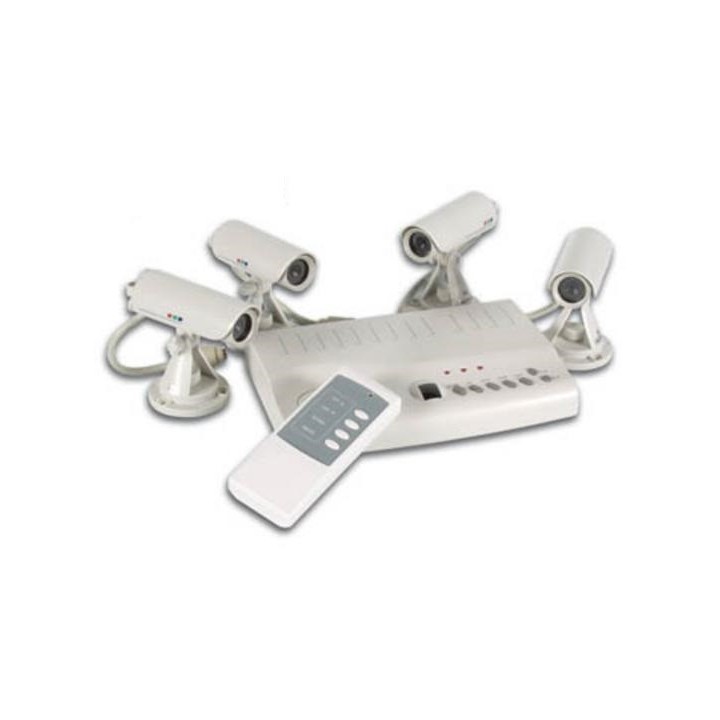

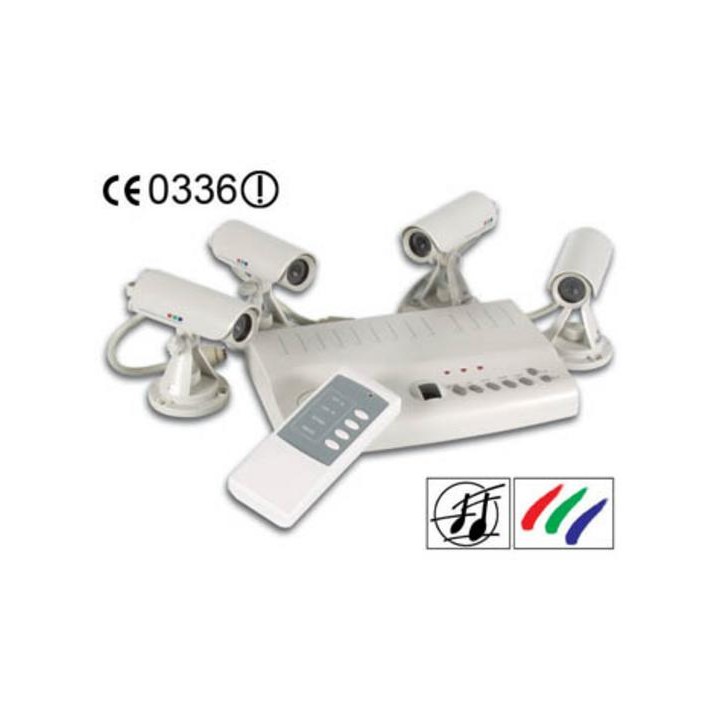

A v switching system with 4 cameras and remote control

Dimension 105x55x86mm . Weight 2.7Kg
Compact CMOS cameras with sequential A/V switcher and RF remote control.


Features

LED channel display
audio/video function
programmable switching sequence
RF remote control for easy channel selection
adjustable dwell time: 1 sec. ~ 30 sec.
comes with 4 x 10m RCA cable
weatherproof colour cameras for indoor/outdoor use
auto switch function with A/V output for recording or monitoring


Specifications

4-input sequential A/V switcher with remote control unit:
current consumption: 400mA max.
A/V input: 1Vpp, 75 ohm (4x)
A/V output: 1Vpp, 75 ohm (1x)
dwell time (adjustable): ± 1sec. ~ 30 sec.
power supply:
unit: DC 10V/600mA (adapter incl.)
remote control: 1 x 12V GP23GAC battery (incl.)
dimensions: 195 x 125 x 30mm
wired colour cameras (4x):
pick-up element: 1/3'' colour CMOS image sensor
number of pixels: 628(H) x 562(V)
scanning system: 2:1 interlace
resolution: 330 TV lines
S/N ratio: > 46dB
min. illumination: 0 lux at F2.0
lens: f6.0mm / F2.0
electronic shutter: 1/60 - 1/15000 sec.
gamma correction: 0.45
AGC: on
video output: 1Vpp, 75 ohm
operating temperature: -10°C ~ +50°C
power supply: via switcher
current consumption: 0.22W
dimensions: 105 x 55 x 86mm
