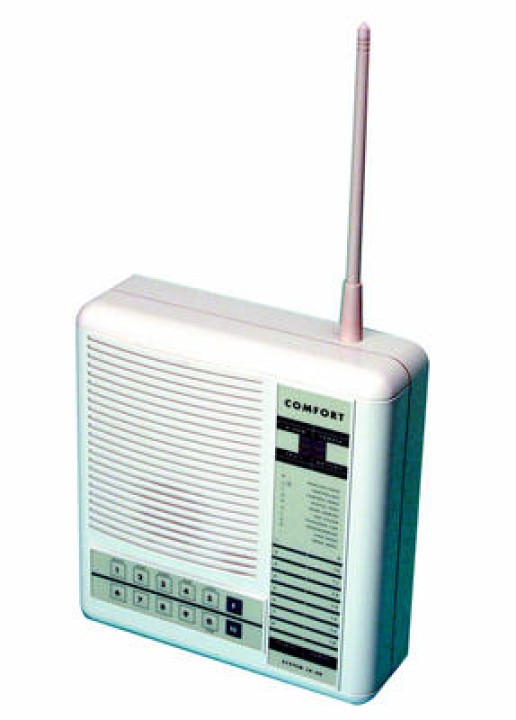

Control panel 16 zone wireless alarm control panel, 433.92mhz incorporated keypad wireless home security system electronic anti

control panel power 230VAC, 50Hz (110VAC, 60Hz optional)
back up battery 12V, 1,3Ah ref. 12V1K optional
back up power output 13.8V, max. 50mA (permanent load), max. 1A (10 minutes)
number of zones (detectors) 16
number of controllers (keypads) max. 8
events memory 127 latest events incl. date and time information
built in siren 118dB
working frequency 433.92 MHz (optional)
RF approved according I-ETS 300 220
complies with EN 50131-1, 50131-5
telephone dialer* voice message to 4 numbers
numeric message to a Pager
digital communication to a monitoring station
approved according* TBR21
working environment indoor use, -10 to +40°C
? only for control panels equipped with the telephone dialer module
First select suitable locations for all sensors and accessories. The location of these sensors should take into consideration the building’s safety and basic rules for good radio communication. The working range of the wireless accessories from the control panel is about 100 meters in optimal conditions. However, building materials can absorb or obstruct radio signals, and communication can also be effected by interference from other radio signals. For these reasons, you should anticipate a shorter working range for indoor installations. The control panel checks the radio signals during the installation and if the quality of communication with any accessory is not sufficient, this item will not be enrolled into the system. No part of the system, except the outdoor siren, JA-60A, is suitable for outdoor use.
You can connect your PC to the JA-60 control panel, using the PC60A connect-ing cable and the ComLink software. This option is convenient for easy program-ming, diagnostics and storing data about the installation.
