16 wireless and 4 wired zones digital voice dialer

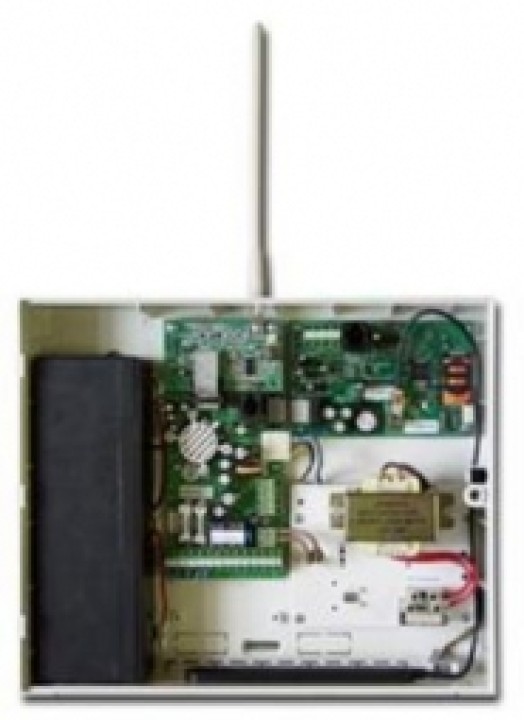

The JA-63 'Profi' is a fully programmable control panel with building block architecture. By programming, it can be split into two separately operated sections (with a shared section). It has a built in power supply and there is ample space for a back up battery (12V, 1.3Ah or 2.6Ah) in the control panel case.

Model JA-63KR (equipped with the “R” radio communicating module) has 16 wireless zones. Up to two JA-60 detectors can enrolled into each zone (totally 32 as a maximum). In total model 63KR has 20 zones (4 wired and 16 wireless). Up to 8 wireless controllers (remote controls or wireless keypads), a JA-60A wireless siren and unlimited number of UC family wireless output modules can be enrolled as well. If more zones are required, another JA-6x control panel can be enrolled as a subsystem (Master & Slave architecture). The master control panel receives information from the sub control panel and it can also arm and disarm the subsystem panel.

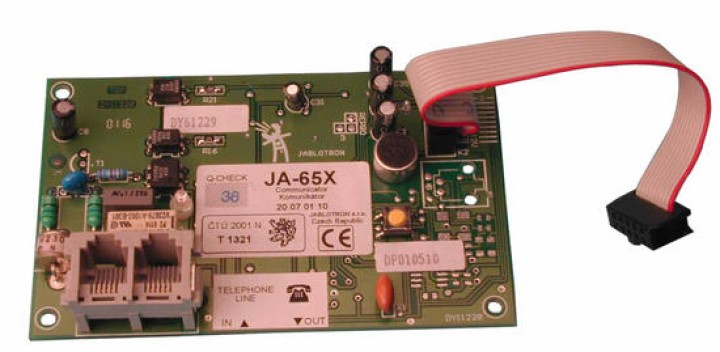

Telephone module “X” can communicate with a Monitoring Station, send two voice messages, send five SMS messages via SMS server (or dial a numeric Pager) or. It can also communicate with a remote PC (using ComLink SW and a JA-60U modem).
