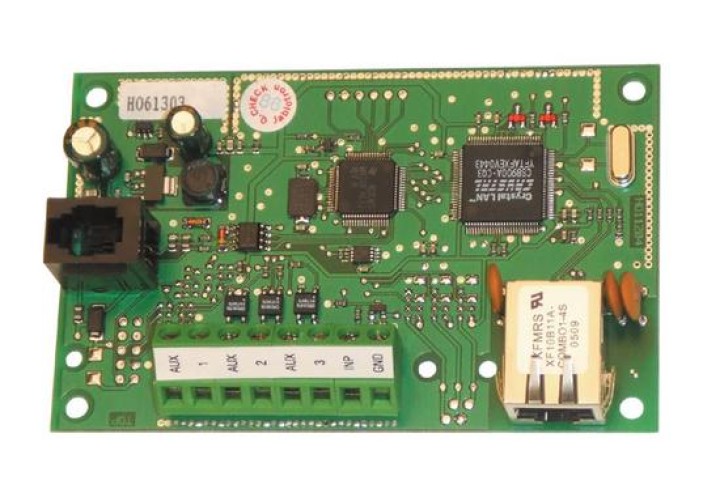

The JA-60WEB communicator is designed for JA-63 and JA-65 alarm control panels. The dialer is used for communication with a central monitoring station via an Ethernet network / the internet.
The
Web network internet module lan 4 canaux for ja63k ja65k domotic by internet
REF : JA60WEB
€132.50
The JA-60WEB communicator is designed for JA-63 and JA-65 alarm control panels. The dialer is used for communication with a central monitoring station via an Ethernet network / the internet.
The
:
8 Items
Emplacement : R8G5+VITRINE
The JA-60WEB communicator is designed for JA-63 and JA-65 alarm control panels. The dialer is used for communication with a central monitoring station via an Ethernet network / the internet.
The WEB module, when installed in the alarm control panel, enables:
Data transfer in CID-IP format to one or two Central Monitoring Stations (CMS),
Programming of the communicator via the web,
Remote control of appliances via a web page – 3 outputs and 1 input
Specifications
Power supply 12V DC provided by the alarm control panel
Current consumption 40 mA
AUX outputs dry contact, max. 100mA / 60V
INP input reacts to connection to GND, max. voltage 15V
Complies with EN 50131-1, Z1, EN 50136-1
Security grade 2 (low to medium risk)
Enviromental class II indoor-general ( –10 to 40°C)
Safety EN 60950
EMC EN 55022, EN 55024, EN 50130-4
