- Pack
For swing out and sectional garage doors Motor technical features :24 V DC self-locking motor for doors up to 7m²Maxi. traction force : 500 NAC mains voltage : 230V - 240 V AC, 0,2 KwSpe

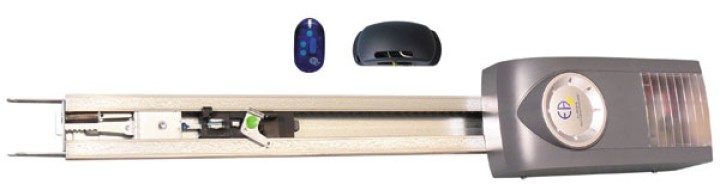

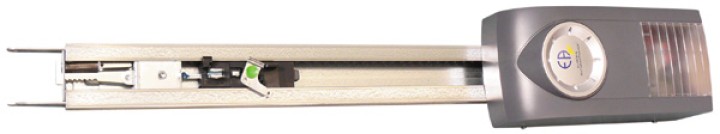

Basic kit 1 rail version 433 mhz for swing out and sectional garage doors
REF : MPGEAWR
€575.00
Instead of €640.75
For swing out and sectional garage doors Motor technical features :24 V DC self-locking motor for doors up to 7m²Maxi. traction force : 500 NAC mains voltage : 230V - 240 V AC, 0,2 KwSpe
: 1 Item
Emplacement : -()-
Security policy
Delivery policy
Terms of Sales
Dimensions Motor: 340x160x130mm, Rail: 3045x81x30mm. Weight: 12.46Kg
For swing out and sectional garage doors
Motor technical features :
24 V DC self-locking motor for doors up to 7m²
Maxi. traction force : 500 N
AC mains voltage : 230V - 240 V AC, 0,2 Kw
Speed : 14cm/sec
3 parts rail technical features :
rail length : 3 045 mm
3 cm deep
For swing out door up to 2.50 m of height
For sectional door up to 2.25 m of height
Functions :
- Progressive start and stop operation in order to save mechanical parts
- Automatic closing time delay mode available
- Equiped with digital encoder sensor and opening/closing mechanical limit switches
- Timing belt release function in order to decrease system tension
- External trigger available
- Built-in door opening security input
- 433.92 Mhz transmitter-receiver system
For swing out and sectional garage doors
Motor technical features :
24 V DC self-locking motor for doors up to 7m²
Maxi. traction force : 500 N
AC mains voltage : 230V - 240 V AC, 0,2 Kw
Speed : 14cm/sec
3 parts rail technical features :
rail length : 3 045 mm
3 cm deep
For swing out door up to 2.50 m of height
For sectional door up to 2.25 m of height
Functions :
- Progressive start and stop operation in order to save mechanical parts
- Automatic closing time delay mode available
- Equiped with digital encoder sensor and opening/closing mechanical limit switches
- Timing belt release function in order to decrease system tension
- External trigger available
- Built-in door opening security input
- 433.92 Mhz transmitter-receiver system
