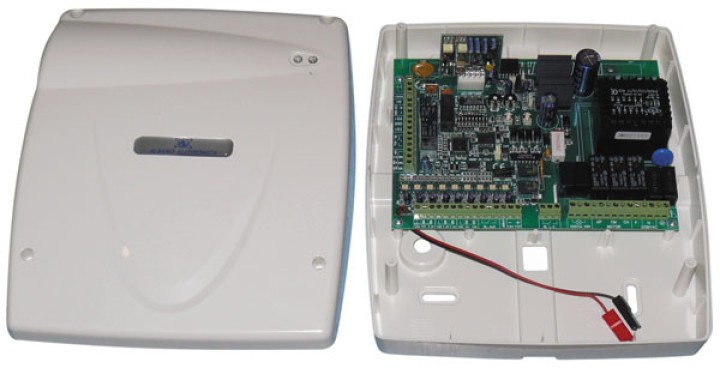

Control panel for rolling gates with built in burglar alarm system.
REF : SBA07
€195.00
:
7 Items
Emplacement : -()R902 R10N3
Dimensions: 236x272x83mm. Weight: 1.56Kg
The AE / SBA07 microprocessor control unit is designed to provide an alarm system with the automation of garage doors, shop curtains, etc., operated by a dedicated remote control (see application drawings) . The central unit can also be used singularly: either as an alarm installation or as an automation installation. TECHNICAL CHARACTERISTICS Supply voltage: 230Vac +/- 10% 50Hz. Power protection 220Vac with fuse (F3) of 500mA. Power protection 220Vac motor with fuse (F2) of 6.3A. Control of presence of the 220Vac supply current, with signaling available on terminal box 30 minutes after a continuous absence. Voltage DC output adjustable "V" from 12Vdc to 14Vdc Working voltage 13.8Vdc DC nominal current 1.2A to 12Vdc Maximum current to power external devices: 1A. 12Vdc power protection with 2A fuse (F1). AC Output Voltage 24Vac +/- 10% 5VA Operating Temperature: -20 ° C + 55 ° C ABS Container. Guaranteed thermal resistance of the container against deformation up to 98 ° C. Dimensions: 240x275x82mm Weight 1.5Kg Capacity max. Battery :: 12V2,5Ah
AUTOMATION SECTION Four operating programs: automatic, automatic with interdiction, semi-automatic with blocking, semi-automatic with blocking and automatic return. Programmable operation, with management including a "man present". Analog time adjustment of: pause, open / close. 3 sec. Flashing signal with respect to the motor start (can be excluded) External flashing operation with fixed or modulated voltage control. Programmable operation of photocells, active only when closing or opening and closing. Input for the connection of active safety devices during opening, with locking and delayed reversal, as provided for in EN 12453 and EN 12445. Differentiated inputs for connection of limit switches on opening and closing the closure. Input for operation via remote keys. Switching relay output for connection of "service light" Capacitance relay contacts for motor actuation: 10A Power supply output safety devices at 12Vdc
ANTI-FLIGHT SECTION An immediate alarm zone when the input is normally closed. A sabotage zone 24H when the input is normally closed. A normally open input for switching on the control unit by remote control. Differential output for activation of alarm actuators (internal sirens, self-powered, telephone handsets, etc.). Output for remote signaling of the switch-on status of the control panel. 3-minute fixed alarm output Switching relay output associated with a key on the AE / JOLLY 4 remote control, for the control of auxiliary services and / or activation of the burglary or emergency channel of a telephone handset.
RADIOFREQUENCY SECTION
RECEIVER
Super Regenerative Receptor with Front End SAW
Filtered
Input Sensitivity -108dBm typical -103dBm
minimum.
Bandwidth RF to -3Db: 600KHz.
System for decoding the interlocking code
Controlled by a special microprocessor with
Self-learning programming and code
Rolling code.
N. of memorizable codes:> 4,000,000.
TRANSMITTER AE / JOLLY 4
Transmission frequency 433.92MHz.Power
Apparently irradiated <10mW +/- 3Db.
Type of coding rolling code encrypted to self-learning
Combinations> 18 billion billions
Power supply alkaline battery 12V mod.27A
Operating temperature -10 ° C + 55 ° C
N. 4 channels transmitted
Radius of reception in free air max 10mt.
Dimensions: 45x30x12mm.
AUTOMATION SECTION Four operating programs: automatic, automatic with interdiction, semi-automatic with blocking, semi-automatic with blocking and automatic return. Programmable operation, with management including a "man present". Analog time adjustment of: pause, open / close. 3 sec. Flashing signal with respect to the motor start (can be excluded) External flashing operation with fixed or modulated voltage control. Programmable operation of photocells, active only when closing or opening and closing. Input for the connection of active safety devices during opening, with locking and delayed reversal, as provided for in EN 12453 and EN 12445. Differentiated inputs for connection of limit switches on opening and closing the closure. Input for operation via remote keys. Switching relay output for connection of "service light" Capacitance relay contacts for motor actuation: 10A Power supply output safety devices at 12Vdc
ANTI-FLIGHT SECTION An immediate alarm zone when the input is normally closed. A sabotage zone 24H when the input is normally closed. A normally open input for switching on the control unit by remote control. Differential output for activation of alarm actuators (internal sirens, self-powered, telephone handsets, etc.). Output for remote signaling of the switch-on status of the control panel. 3-minute fixed alarm output Switching relay output associated with a key on the AE / JOLLY 4 remote control, for the control of auxiliary services and / or activation of the burglary or emergency channel of a telephone handset.
RADIOFREQUENCY SECTION
RECEIVER
Super Regenerative Receptor with Front End SAW
Filtered
Input Sensitivity -108dBm typical -103dBm
minimum.
Bandwidth RF to -3Db: 600KHz.
System for decoding the interlocking code
Controlled by a special microprocessor with
Self-learning programming and code
Rolling code.
N. of memorizable codes:> 4,000,000.
TRANSMITTER AE / JOLLY 4
Transmission frequency 433.92MHz.Power
Apparently irradiated <10mW +/- 3Db.
Type of coding rolling code encrypted to self-learning
Combinations> 18 billion billions
Power supply alkaline battery 12V mod.27A
Operating temperature -10 ° C + 55 ° C
N. 4 channels transmitted
Radius of reception in free air max 10mt.
Dimensions: 45x30x12mm.
