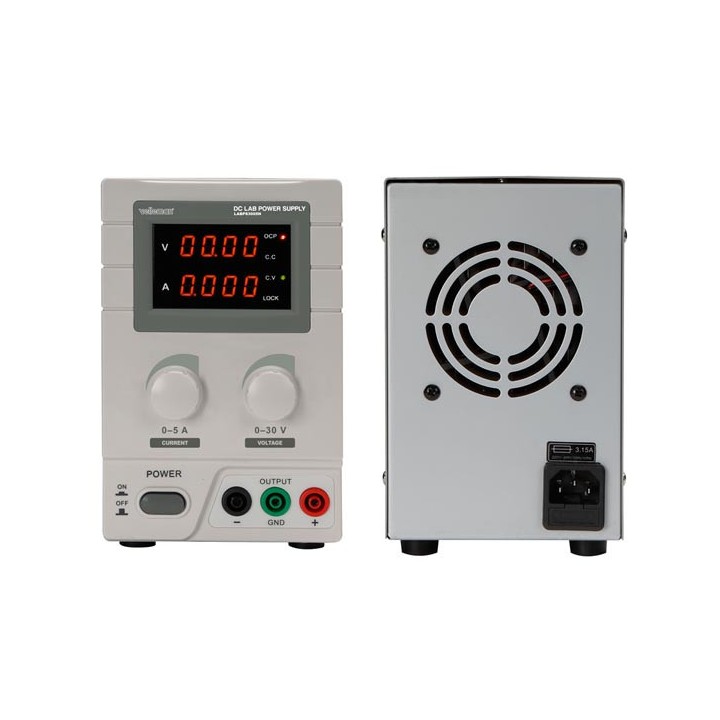

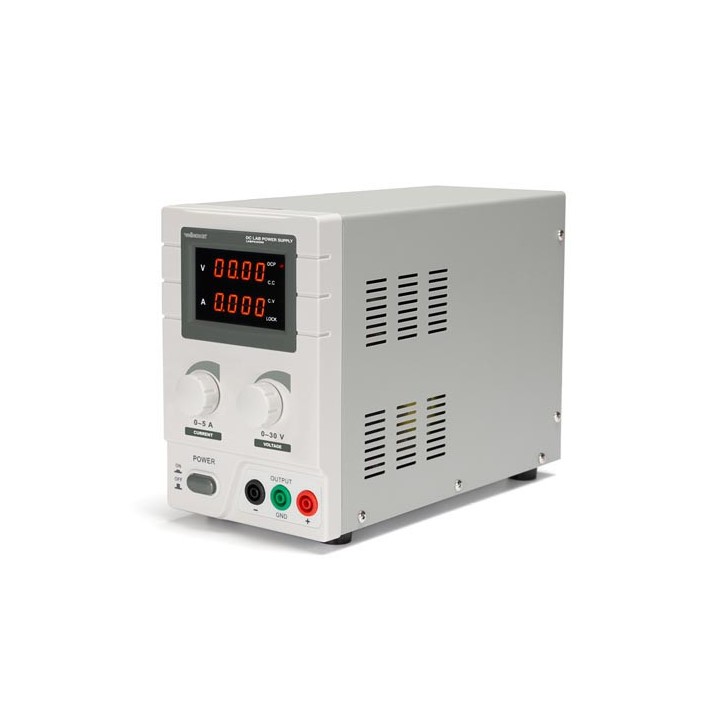

Labware 0 to 30v dc 1a 2a 3a 4a 5a max double display LED labps3005
Labware 0 to 30v dc 1a 2a 3a 4a 5a max double display LED labps3005
REF : AL30V5LED
€258.45
Labware 0 to 30v dc 1a 2a 3a 4a 5a max double display LED labps3005
:
1 Item
Emplacement : SUR COMMANDE
Security policy
Delivery policy
Terms of Sales
Laboratory power supply led display 0 to 30v dc 1a 2a 3a 4a 5a max double labps3005n
Item description
Characteristics
dual LED voltage and current display
large and fine adjustment of voltage and current
voltage or current limitation
output connectors: isolated safety terminals
silent, temperature-controlled fan
4-digit display
lock function
direct voltage / direct current
resolution: 10 mV / 1 mA
protection modes:
3.15 A / 250 V fuse
overcurrent protection
thermal protection (95 ° C)
fuse protection
Specifications
input voltage: 220 VAC (± 10%) 50/60 Hz
exit:
voltage: 0-30 VDC
current: 0-5 A
power: max. 150 W
power factor (cos Phi): 0.82
ripple voltage: = / <1.0 mV (rms)
ripple current: 3 mA (rms)
operating temperature: 0 to +40 ° C, <90% relative humidity
autonomy at full load: 8 h
dimensions: 117 x 190 x 270 mm
weight: 4.8 kg
grey color
Item description
Characteristics
dual LED voltage and current display
large and fine adjustment of voltage and current
voltage or current limitation
output connectors: isolated safety terminals
silent, temperature-controlled fan
4-digit display
lock function
direct voltage / direct current
resolution: 10 mV / 1 mA
protection modes:
3.15 A / 250 V fuse
overcurrent protection
thermal protection (95 ° C)
fuse protection
Specifications
input voltage: 220 VAC (± 10%) 50/60 Hz
exit:
voltage: 0-30 VDC
current: 0-5 A
power: max. 150 W
power factor (cos Phi): 0.82
ripple voltage: = / <1.0 mV (rms)
ripple current: 3 mA (rms)
operating temperature: 0 to +40 ° C, <90% relative humidity
autonomy at full load: 8 h
dimensions: 117 x 190 x 270 mm
weight: 4.8 kg
grey color
