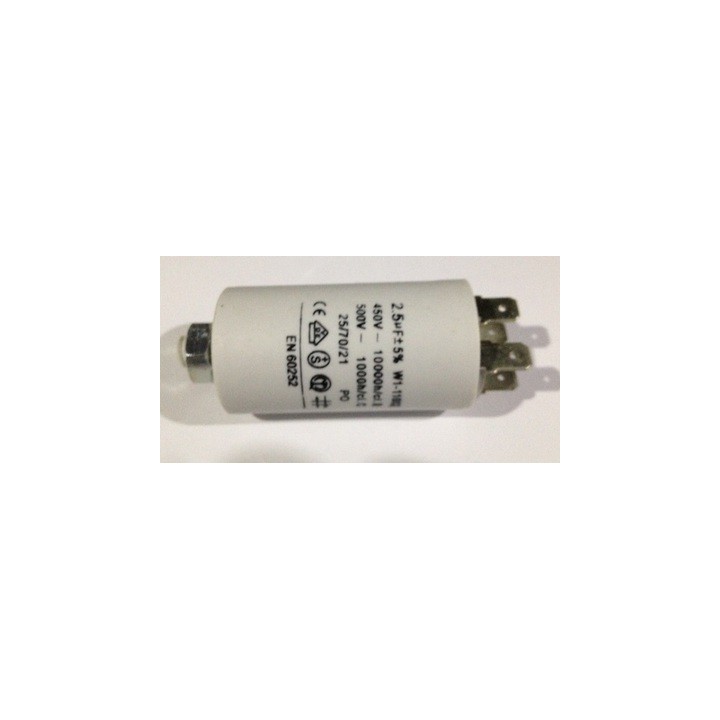

Capacitor 2 mf micro farad 450v 50 60 hz universal motor start capacitor with am terminal w1 11002

Capacitors round in a fireproof box. Isolated and highly watertight .
Easy to install thanks to the dual faston 6.mm and M8 screws. Suitable for lamps and motors 50/60Hz .

2 mf 450v capacitor for tumble dryer THOMSON TSLC608

Capacity: 2 uF
Voltage: 450 V
Dimensions: O 28x55mm

specifications
Tolerance on capacitance : + - 5%
Working frequency range : 50 to 60 Hz
Individual test voltage : Between terminals : 2.15 Vn for 2 seconds.
: Between terminals and case : 3 KV for 2 seconds.
Protection: Case and cover in self-extinguishing plastic material

2 uF 450 V W1- 11002 R 28 x 55 mm

EAN : 5412810050192

Ducati
Engine Type
Yes Earth
AMP female connector

Can replace any permanent uF capacitor 2 which plated voltage between 400V and 500V , including (among others)
ITALFARAD series RP2.2 and RP3.2
4-16-10 and 4-16-17 DUCATI series
ARCOTRONICS series 4ACMKP 1.27 - 1.27 - 1.27 - 6CCMKP 7LAMKP
COMAR Condensatori kind MKA2 -450 - 2?F - 450V - Output terminals

Permanent or starting capacitors are not suppressor function is to assist in starting or rotating electric motors that are equipped . The value in MF ( MFD uF ) is very important and therefore guide your choice. The specified voltage ( eg 450V ) is the maximum voltage the capacitor can withstand and not voltage.
Symptoms of failure: The penalty engine start or not start at all. It starts softly when it is turned on and manually launch
technology:
Engines of washing machine , there is this type of capacitors on motors squirrel cage rotor with a permanent magnet . Like the brush motors ( the magnetic field of the rotor is produced by the electricity that powers the motor ) . Advantage: They need no maintenance .
The capacitor creates a phase shift of 90 ° between the two main windings , is a bit like adding another additional power source on the second winding.
The phase improves the starting torque and allows the motor rotational stability
