Capacitor 1.5 mf micro farad 400v 450v 500v 50 60 hz universal motor starter condo with terminal am w1 11010

REF : 1MFC5

€7.49

Volume discounts

5
€7.12
10
€6.74
20
€5.99
50
€5.62
100
€5.24
200
€4.87
500
€4.49
1000
€4.12
: 76 Items

Emplacement : R2N6()R2N5

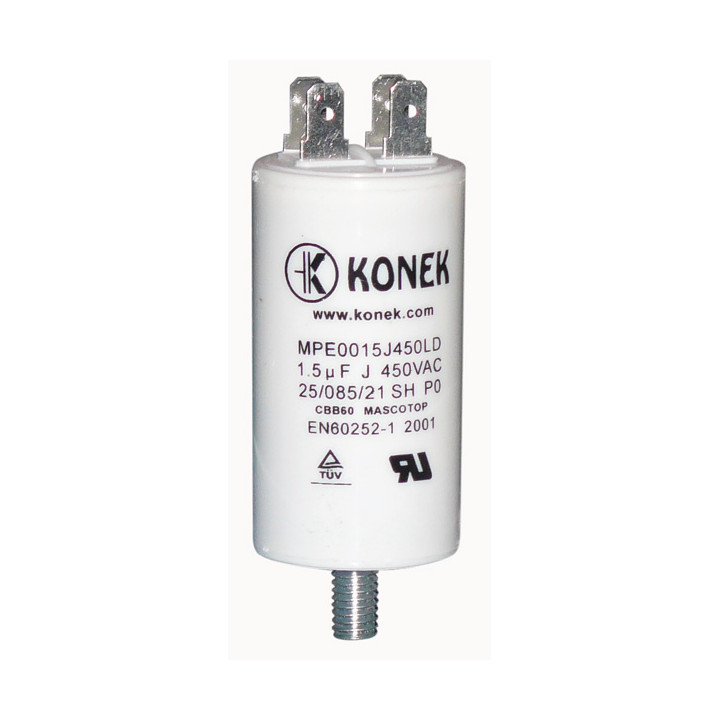

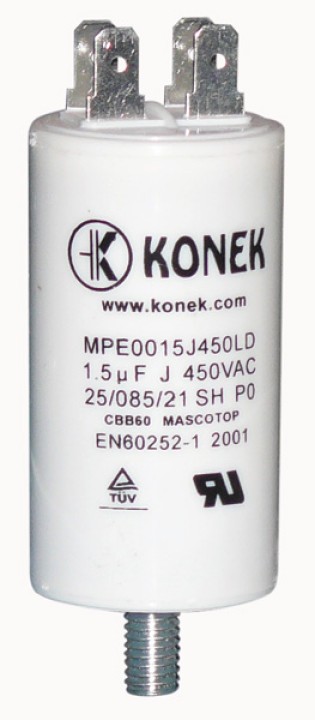

Capacitor 1.5 mf micro farad 400v 450v 500v 50 60 hz universal motor starter condo with terminal am w1 11010

Round capacitors in a flame retardant housing. Insulated and highly waterproof.
Easy to assemble thanks to the double faston 6.mm lugs and the M8 screw. Suitable for lamps and 50 / 60Hz motors.

Permanent capacitors 1.5µf 450V for electric motors.

Dimensions: 25 x 58

6.3mm faston terminal outputs
Operating voltage: 220V
Max voltage: 450V
Nominal frequency: 50 / 60Hz
Capacity tolerance: +/- 5%
Working temperature: -25 ° C to + 85 ° C
Reference standard: EN 60252
Class B: 10,000 hours

Can replace any permanent capacitor of 1.5 µF whose plated voltage is between 400V and 500V, including (among others)
ITALFARAD RP2.1.5 and RP3.1.5 series
DUCATI series 4-16-10 and 4-16-17
ARCOTRONICS series 1.27-4ACMKP 1.27-6CCMKP 1.27-7LAMKP
COMAR Condensatori type MKA1.5-450 - 1,5µF - 450V - Lugs output


Permanent or starting capacitors: Their functions

The permanent or starting capacitors are not suppressors and their function is to help the starting or the rotation of the electric motors which are equipped with them. The value in MF (microfarad µF) is very important and will therefore guide your choice. The voltage indicated (example 450V) is the maximum voltage that the capacitor can withstand and not an operating voltage.
Symptoms of failure: The engine has difficulty starting or does not start at all. It starts sluggishly when powered on and manually started
Technology:
On washing machine motors, this type of capacitor is found on squirrel cage motors with a permanent magnet rotor. Like brushed motors (the magnetic field of the rotor is produced by the electricity that powers the motor). Advantage: They do not need any maintenance.
The capacitor creates a phase shift of 90 ° between the two main windings, it's a bit like adding another additional electrical source on the second winding.
The phase shift improves the starting torque and allows rotational stability to the motor.
