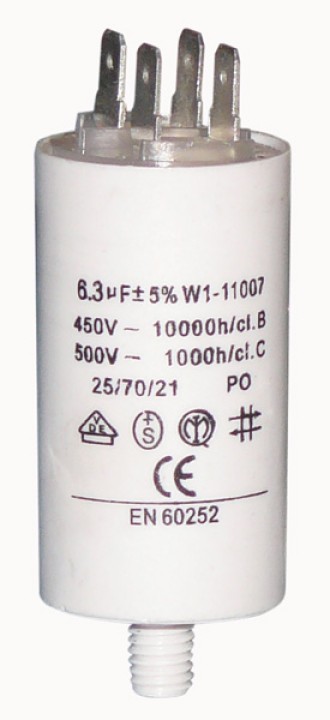

Capacitor 6 mf 6.3 micro farad 450v 50 60 hz universal motor start capacitor with terminal w1 11006 View larger

Capacitor 6 mf 6.3 micro farad 450v 50 60 hz universal motor start capacitor with terminal w1 11006

Capacitors round in a fireproof box.

8,83 €

32 Items

Quantity
Price
5
8,38 €
10
7,94 €
20
7,06 €
50
6,62 €
100
6,18 €
200
5,74 €
500
5,30 €
1000
4,85 €

6MFC3

Description


Capacitors round in a fireproof box. Isolated and highly watertight.
Easy to install thanks to the dual faston 6.mm and the M8 screws. Suitable for lamps and motors 50/60 Hz.

specifications
Tolerance on capacitance: + - 5%
Working frequency range: 50 - 60 Hz
Individual test voltage: between terminals: 2.15 Vn for 2 seconds.
: Between terminals and case: 3 KV for 2 seconds.
Protection: Case and cover in self-extinguishing plastic

6.3 uF 450 V W1-11006 R 32 x 55 mm

EAN: 5412810050109
starting capacitor
6.3 uF - 450V

HQ
Capacity 6.3 uF
Voltage 450 V
type of engine
Yes Earth
AMP female connector

Capacitors or permanent starter are not suppressor function is to help start or rotate the electric motors that have them. The value in MF (microfarads uF) is very important and therefore guide your choice. The specified voltage (eg 450V) is the maximum voltage that the capacitor can handle, not a voltage.
     Symptoms of failure: The penalty engine to start or not start at all. It starts softly when it is on and manually launch
     technology:
     In motor washing machine, we find this type of capacitors to motors with a squirrel cage rotor permanent magnet. Like the brush motors (the magnetic field of the rotor is produced by the electricity that powers the motor). Advantage: They need no maintenance.
     The capacitor creates a 90 ° phase shift between the two main windings, it's a bit like adding another additional power source on the second winding.
     The phase shift improves the starting torque and provides rotational stability to the engine.
