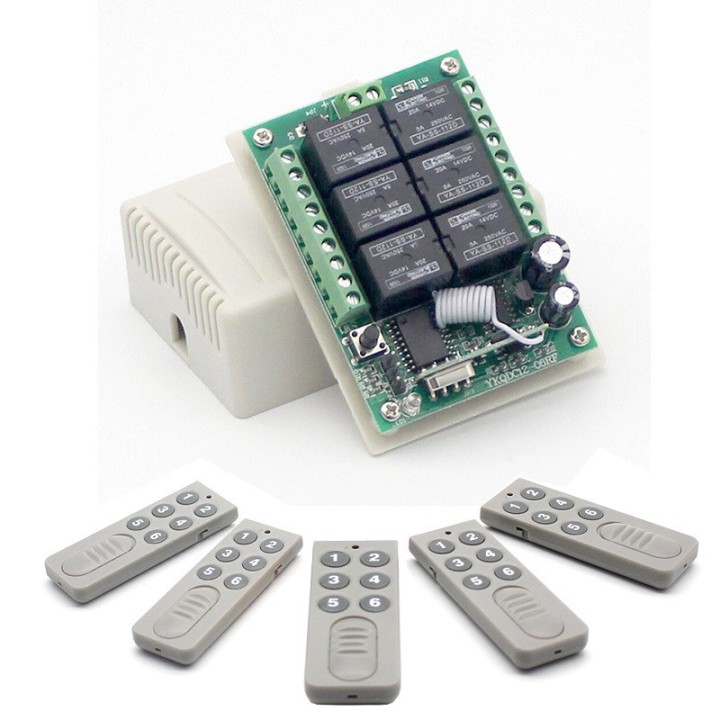

12v 6CH 6 Channel Radio Receiver + 5 Wireless Remote Control Light Switch Relay 433Mhz

Universal Wireless Remote Control for Light, 433MHz Control Receiver with 6-contact RF Transmitter, DC 12V 6CH
Receiver description:
1, the operating voltage: DC12V
2, quiescent current: 8mA
3, operating frequency: 433MHz
4, load power: (each relay corresponding to 10A load)
5, receiving sensitivity: -105dbm
6, frequency deviation: ± 0.2MHz
7, coding method: learning type
8, working mode: jog, self-locking, interlock
9, modulation method: ASK
10, remote control distance: 100M (wild)
11, PCBA size: 68mm * 48mm * 18mm
12, shell size: 76mm * 46mm * 30mm

Transmitter description:
1, the voltage working current: 12V27A battery, including battery
2, quiescent current: basic power consumption
3, working current: ≤ 10mA
4, operating frequency: 433MHz (other frequencies can be customized)
5, transmitting power: ≥ 10mW
6, remote control distance: 100M (measured empty)
7, modulation method:
8, chip type: RT2260
10. Working environment: -15/+75 degrees Celsius

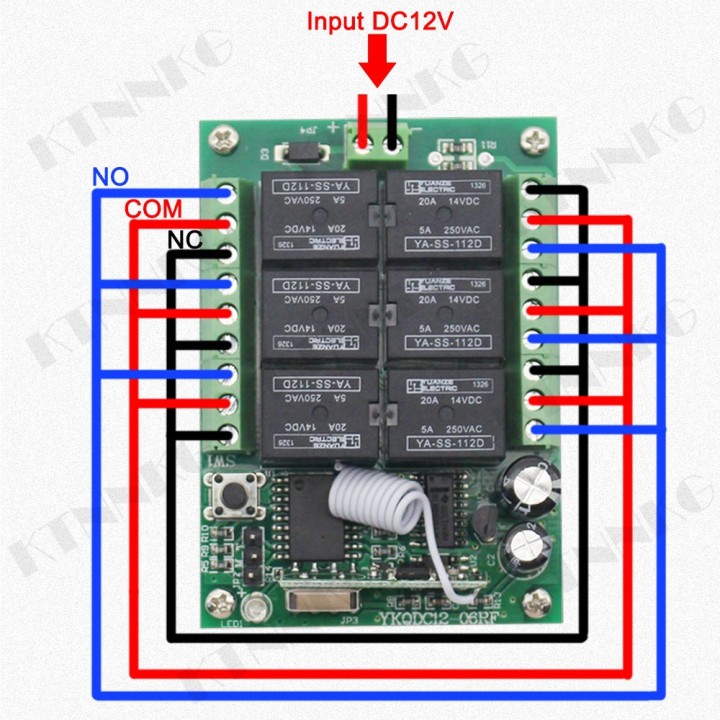

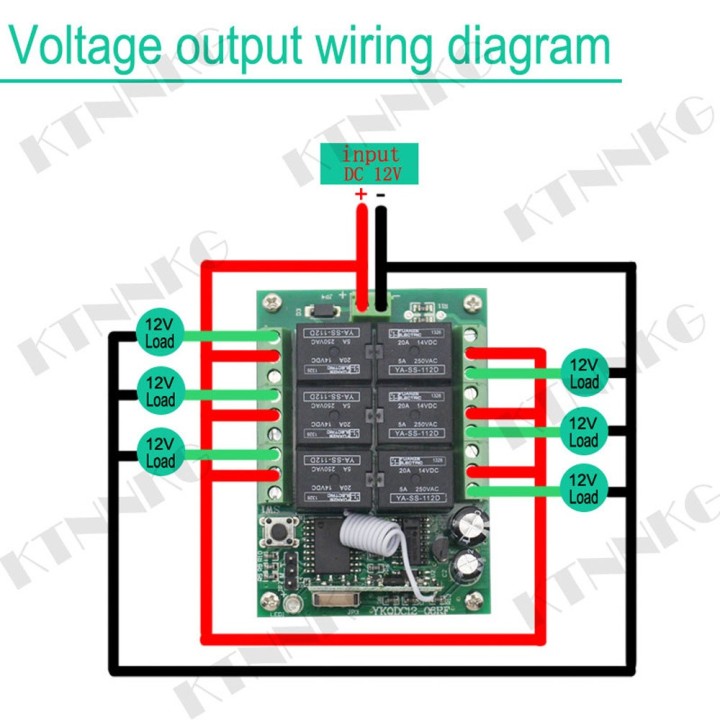

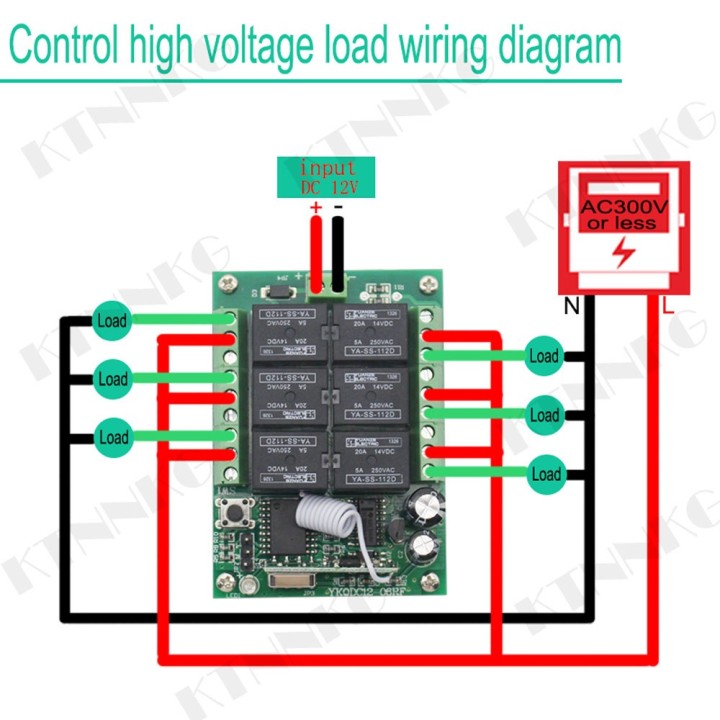

wiring instructions:
1, + V: connect to 12V power supply positive;
2. GND: connect to the negative pole of 12V power supply;
3, NO: output; normally open end of the relay;
4, COM: output; public end of relay;
5, NC: output; normally closed relay;

Learning code:
1, Press the pairing button on the control panel once, the LED indicator flashes. Press the button on the remote control that needs to be paired. The LED indicator on the control panel flashes 3 times in a row, which means that the code learning is successful.

Working mode description:

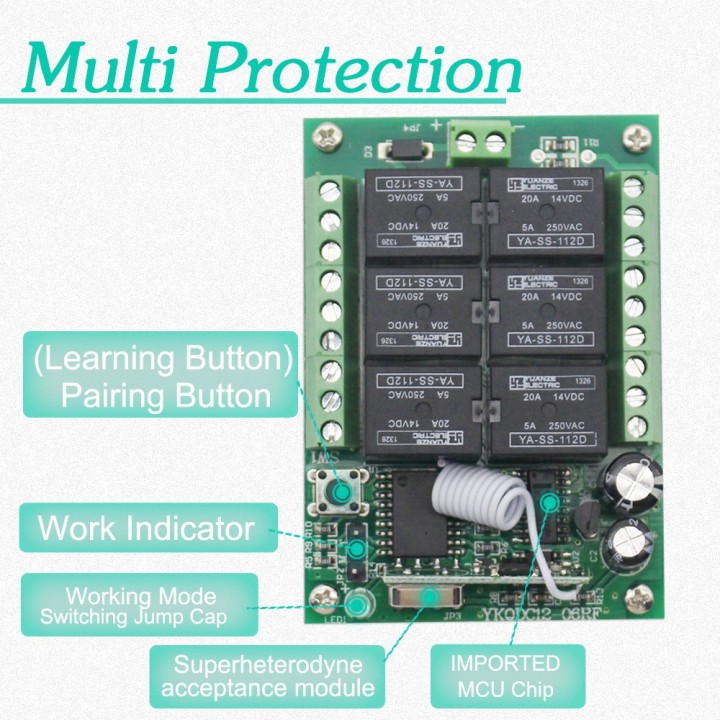

1. Set the jogging output: remove the jumper cap on the board.
2. Set as self-locking output: short-circuit the "1-2" pin with the jumper on the board.
3, set to the interlock output: use a jumper on the board to short-circuit the "3-4" pin.

The output mode explained:
1. Self-locking/toggle: press the remote control button in the same place, press once, the relay opens, then press again, the relay turns off.
2. Latching/Lock: Press the remote control "A", the relay opens, press the remote control "B", the relay is off.
3, Jog/Momentary: Press the remote control "A", the relay opens, release the remote control "A", the relay is off. If you continue to press the remote control "A", the relay will stay on. When you release the remote control, the relay will be off.
