Specifications * type: ON-OFF DPST * cap: red * remark: with red neon light * contact rating: 10A/250Vac, 16A/125Vac * electrical life: 20000 cycles * mechanical life:
Power rocker switch 10a 250v dpst on off red i o cap
REF : R906
€8.25
Specifications * type: ON-OFF DPST * cap: red * remark: with red neon light * contact rating: 10A/250Vac, 16A/125Vac * electrical life: 20000 cycles * mechanical life:
: 25 Items
Emplacement : R3P2
Security policy
Delivery policy
Terms of Sales

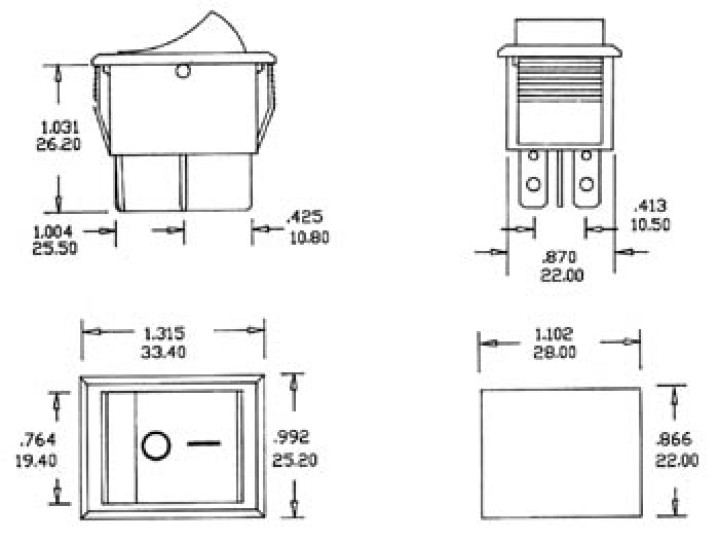

Dimensions: 32x25x19mm. Weight: 13gr
Specifications
* type: ON-OFF DPST
* cap: red
* remark: with red neon light
* contact rating: 10A/250Vac, 16A/125Vac
* electrical life: 20000 cycles
* mechanical life: 50000 cycles
* contact resistance: 50mohm
* insulation resistance: min. 100Mohm at 500Vdc
* dielectric strength: 1500Vac / 1 minute
* materials:
o housing: 66 nylon (UL94V-2)
o actuator: 66 nylon (UL94V-2)
o movable contacts: copper, silver-plated
o stationary contacts: copper, silver-plated
o terminals: copper, silver-plated
o contact: spring-loaded
Specifications
* type: ON-OFF DPST
* cap: red
* remark: with red neon light
* contact rating: 10A/250Vac, 16A/125Vac
* electrical life: 20000 cycles
* mechanical life: 50000 cycles
* contact resistance: 50mohm
* insulation resistance: min. 100Mohm at 500Vdc
* dielectric strength: 1500Vac / 1 minute
* materials:
o housing: 66 nylon (UL94V-2)
o actuator: 66 nylon (UL94V-2)
o movable contacts: copper, silver-plated
o stationary contacts: copper, silver-plated
o terminals: copper, silver-plated
o contact: spring-loaded
