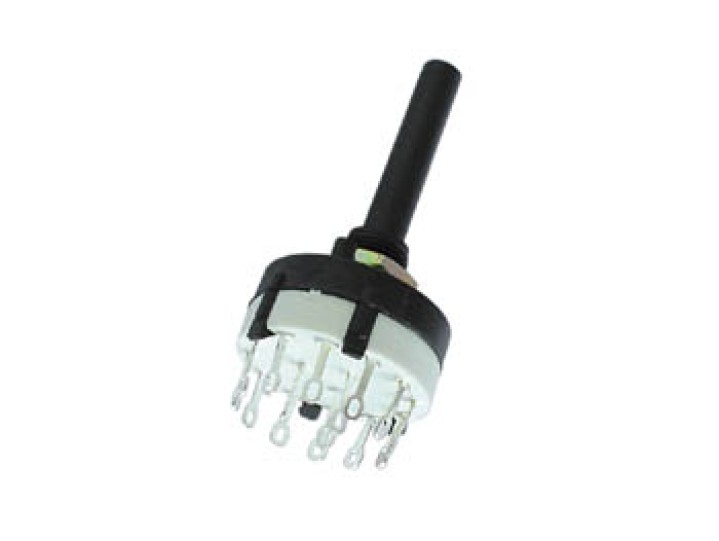

Rotary switch 3 circuit 4 position thimble to weld

Features

* type: 'C' = for PCB

Specifications

* contact ratings:
---- 350mA at 110V (AC or DC)
---- 150mA at 250V (AC or DC)
* current capacity: 5A continuous
* electrical life: 15000 cycles at full load, up to 30000 detent operations
* contact resistance: initially max. 20mohm
* dielectric strength: 1000Vrms at sea level
* operating temperature: -20°C to +85°C
* stops: the stop can be placed in 12 different positions (= 30° indexing)
* non-shorting contacts: break before make
* materials:
---- shaft: glass-filled nylon
---- cover: glass-filled nylon
---- base: glass-filled nylon
---- contacts: brass, silver-plate
---- terminals: brass, silver-plated
---- hardware nut: zinc, nickel-plated
---- lock washer: steel, zinc-plated
---- stop ring: brass, nickel-plated

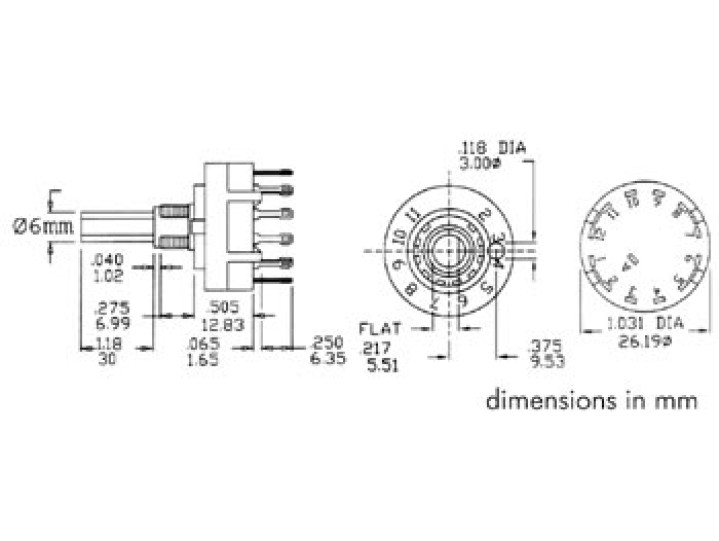

* O: 6mm
