Gsm gateway 2 lines relay transformer for fixed phone sagem ll-b2021 rohde schwarz - 1

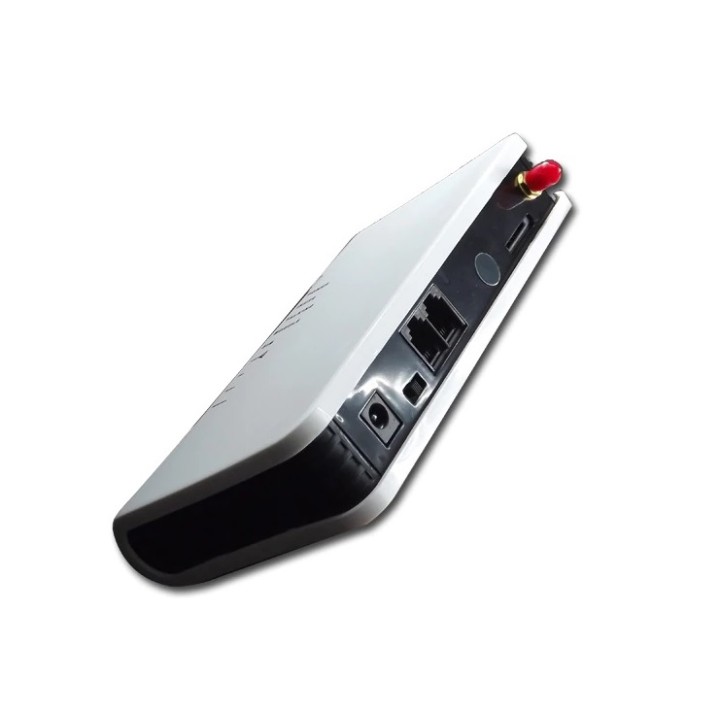

Gsm gateway 2 lines relay transformer for fixed phone sagem ll-b2021

REF : RL3003

€141.58

GATEWAY GSM phone - 2 LINES Fixed-mobile substitution GSM voice service and SMS services GSM supplementary (among others caller ID) Many options (USB port with GPRS, external an

Volume discounts

5
€134.50
10
€127.42
20
€113.27
50
€106.19
100
€99.11
200
€92.03
500
€84.95
1000
€77.87
: 26 Items

Emplacement : VIT()R12F2 R12F4

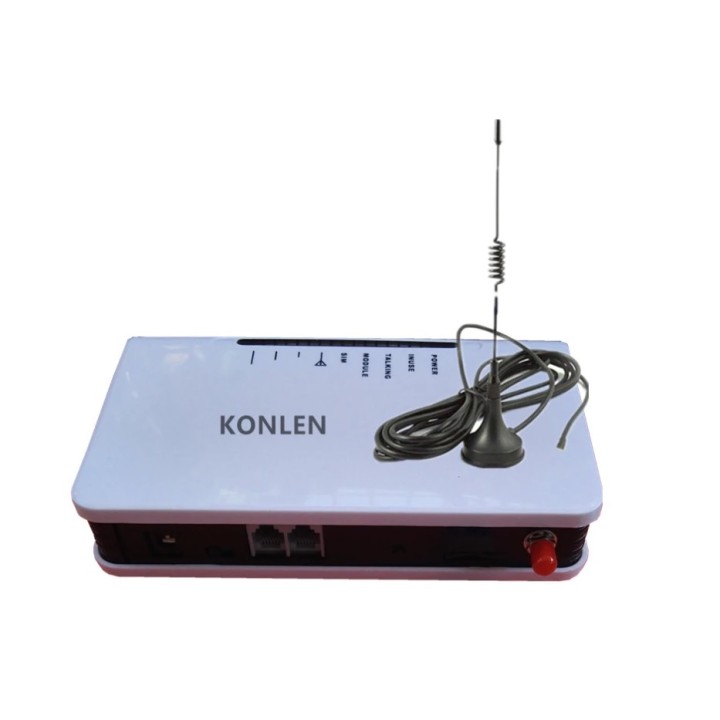

GATEWAY GSM phone - 2 LINES

Fixed-mobile substitution
GSM voice service and SMS services GSM supplementary
(among others caller ID)
Many options (USB port with GPRS, external antenna, backup battery)

The RL3002 is a quick and economical solution



the diffrérence the RL300, this version allows you to connect two phone
Wired strong>. The same SIM card can be used by each position.



RL3002 is a GSM gateway 2 lines used to call for a job
Wired using the GSM network. This is a quick and economical solution for
rapidly deploy new subscriber lines.

In addition, in all countries, it is an interesting solution for mobile operators to increase the use of its GSM network by offering fixed services additionally to mobile services.

The RL3002 also supports voice communication quality, a SMS service.
It provides access to additional services and GSM voice mail server.

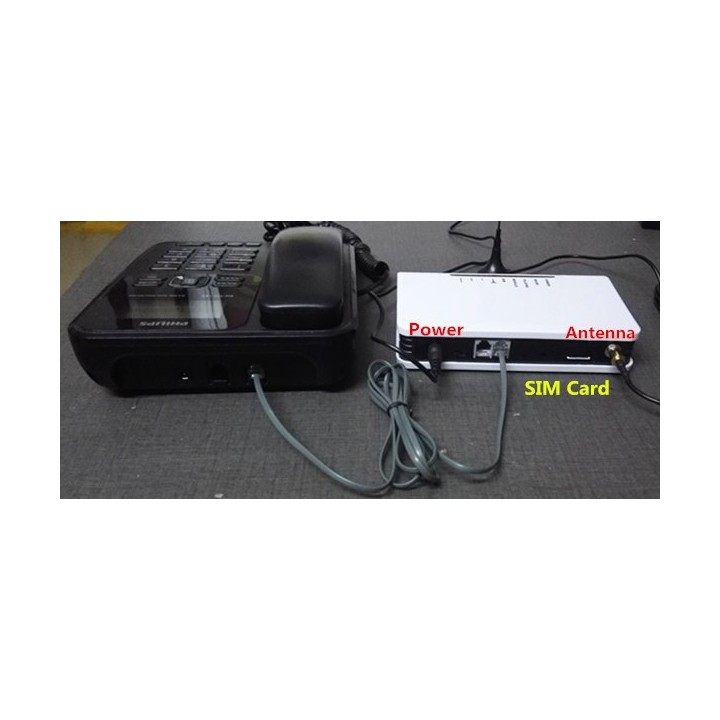

The basic installation RL302 is very simple and can be performed by the customer himself. They simply plug the power cord into an electrical outlet and turn the phone | In addition, it can be customized according to requirements of different operators.

RL302 Fixed GSM Gateway is a convenient GSM gateway used to connect
phone to access GSM network plugging your phone on the device
you will:

-Send and receive voice calls,

-Send and receive SMS * strong>

- Ask your voicemail



SMS RL302 supports SMS sending and receiving. * Please check your phone's manual to see if it supported and usage instructions
Service Center Configuration:
Number: 0172 227 0333
To activate the service SMS, you must first send a SMS to your own number, if failures occur, SMS service will be deactivated. Sending a SMS will reactivate successfully.


Call Make or receive a call is similar to your landline
When your phone rings, simply lift the handset the telephone and talk
Dial your number, after a timeout (end of dialing timeout default value: 4sec.), the call will be launched. To speed up, you can press # at the end of the number.
Face a second call, press R2, to accept, swap between calls.
To join the 2 calls and make a multi-party call, press R3
If voicemail flashes, call 5500 to listen to your messages.
During the call, the LED will be off.

SPECIFICATIONS

GSM frequency bands:
Two versions of the double band:
- 850 / PCS 1900 TDMA
- EGSM 900 / DCS 1800
Transmitting power: Class
4 (2W) for TDMA850 / EGSM 900 | Class 1 (1W) for DCS1800 / PCS1900

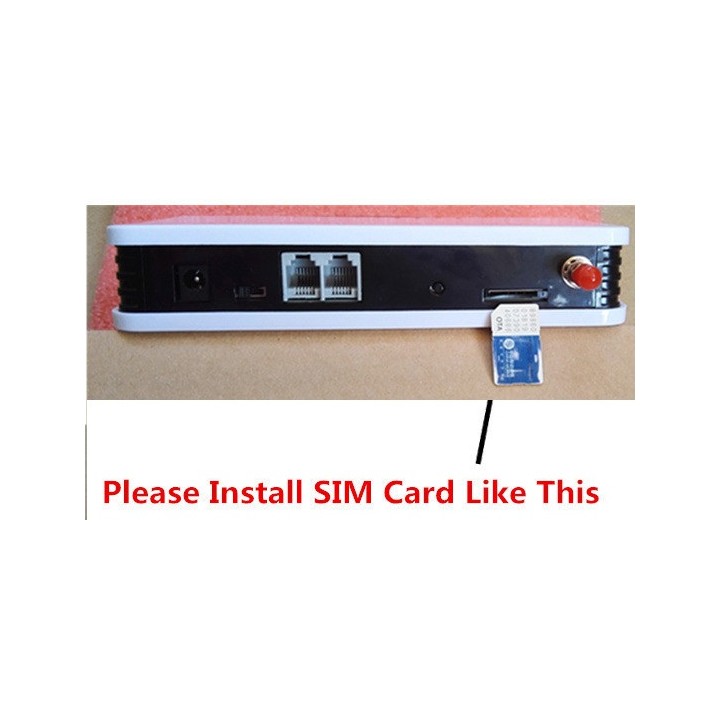

SIM Card: Support
3 V mini SIM cards
security features
Sim lock
SERVICES
Voice: DTMF
| All codecs
- AMR, EFR, FR and HR
Additional services, including CLIP
emergency calls

Multiparty Call Waiting
SMS: Sending and receiving

Fixed line SMS protocol
Status Indications
RF received at
State Power
Voicemail received, etc. .. Configuration
phone | Factory settings DTMF programming

INTERFACES
Food
RJ11
SIM
RJ11 adapter (optional)
EXTERNAL POWER
AC Input: 100-240 VAC, 50-60 Hz power socket
: EU or U.S.
DIMENSIONS AND WEIGHT (APPROX)
195 mm x 151 mm x 38 mm 200 grams without charger


ENVIRONMENTAL Operating Temperature: 0 to 55
Humidity: 10% to 70% ( without condensation)
CERTIFICATION
Fully CE certified
R & TTE, GCF, WEEE

RL3003
26 Items
