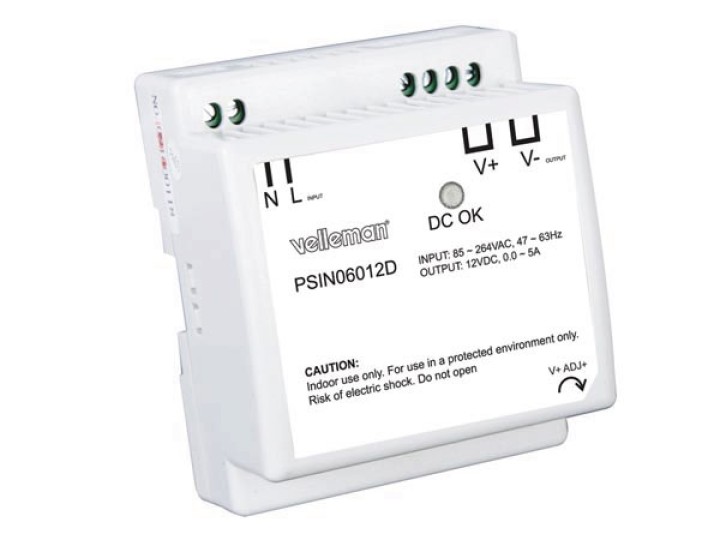

Switching power supply 60w 12vdc din velleman - 1

Switching power supply 60w 12vdc din

REF : PSIN06012D

€49.92
Features with screw connections protections: short circuit overload auto recovery 100% full load burn-in test high reliability according to EMC standa

This pack contains

Volume discounts

5
€47.42
10
€44.93
20
€39.94
50
€37.44
100
€34.94
200
€32.45
500
€29.95
1000
€27.46
: 2 Items

Emplacement : -()-


Features

with screw connections
protections:
short circuit
overload
auto recovery
100% full load burn-in test
high reliability
according to EMC standard : FCC part 15
according to safety standard : UL1012

Specifications

output voltage: 12VDC ± 1%
output current: 0.0 ~ 5A
power output: max. 60W
input voltage: 85 ~ 264VAC, 47 ~ 63Hz (L , N and Ground connections)
input rush current (230VAC): 30A (cold start)
setup, rise and hold-up time: 200ms, 100ms, 300ms at full load and 230VAC
working temperature:
-10°C ~ 0°C: 80% load
0°C ~ 50°C: 100% load
50°C ~ 60°C: 60% load
operating humidity conditions: 20% ~ 90%RH
overload protection: 105% ~ 150% fold back current limiting with auto-recovery
withstand voltage (max. 1min):
I/P - O/P: 1.5kVAC
I/P - FG: 0.5kVAC
DC adjustment range: ± 10% rated output voltage (V adj)
efficency: 74%
connection: 5, 7 or 9 pole terminal block, pitch 9.5mm
velleman
PSIN06012D
2 Items
