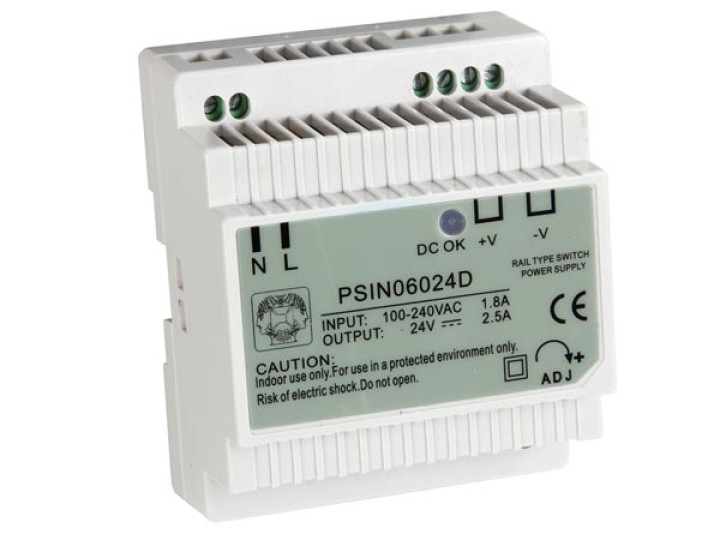

Switching power supply 60w 24vdc din psin06024d

Features

with screw connections
protections:
short circuit
overload
auto recovery
100% full load burn-in test
high reliability
according to EMC standard : FCC part 15
according to safety standard : UL1012

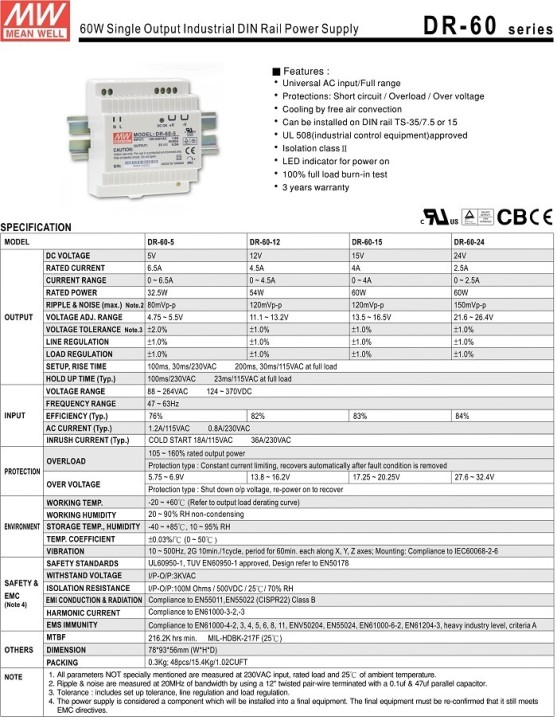

Specifications

output voltage: 24VDC ± 1%
output current: 0.0 ~ 2.5A
power output: max. 60W
input voltage: 100-240Vac 50/60Hz
input rush current (230VAC): 30A (cold start)
setup, rise and hold-up time: 200ms, 100ms, 300ms at full load and 230VAC
working temperature:
-10°C ~ 0°C: 80% load
0°C ~ 50°C: 100% load
50°C ~ 60°C: 60% load
operating humidity conditions: 20% ~ 90%RH
overload protection: 105% ~ 150% fold back current limiting with auto-recovery
withstand voltage (max. 1min):
I/P - O/P: 1.5kVAC
I/P - FG: 0.5kVAC
DC adjustment range: ± 10% rated output voltage (V adj)
efficency: 74%
connection: 5, 7 or 9 pole terminal block, pitch 9.5mm
