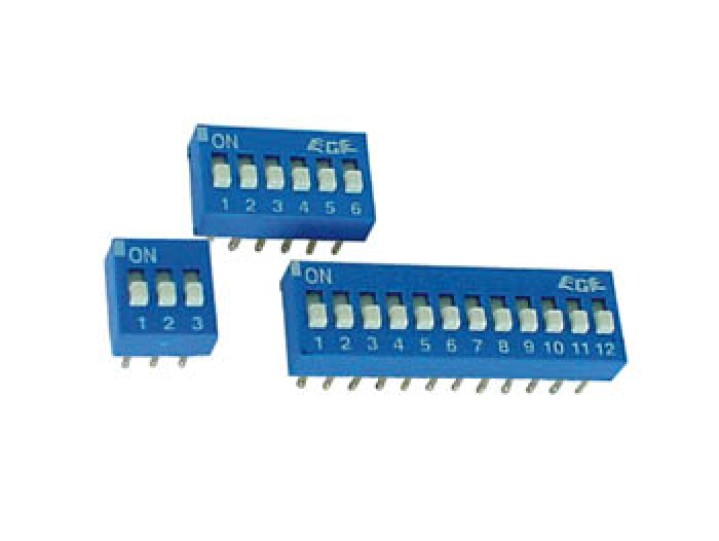

Dip switch posiziona 6 sostituzione sus61 ds 6 velleman
REF : SUS61DIP
1,18 €
* number of switches: 6

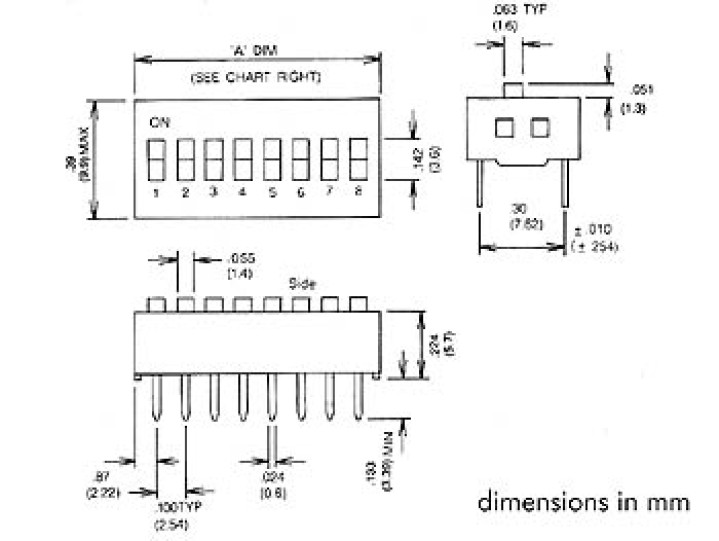

* length: 16.24mm
* mechanical life: min. 10000 operations per switch
* electrical life: min. 5000 operations per switch, 50mA/24Vdc
* ratings:
:
98 Articoli
Emplacement : -()CH

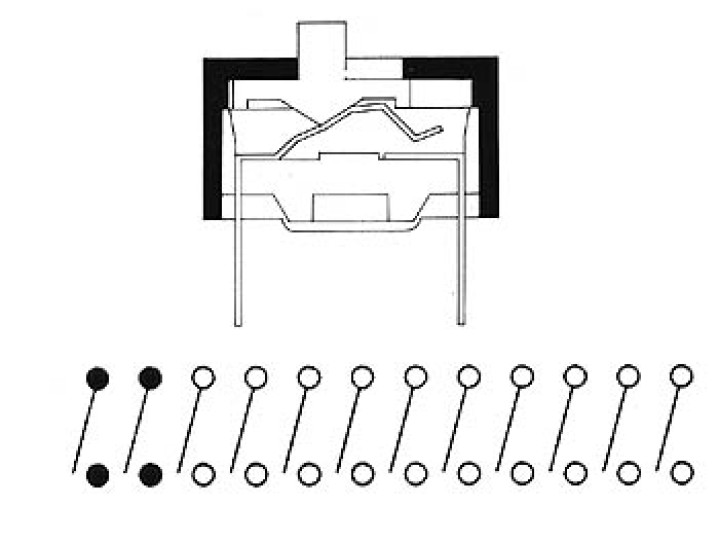

* number of switches: 6 * length: 16.24mm * mechanical life: min. 10000 operations per switch * electrical life: min. 5000 operations per switch, 50mA/24Vdc * ratings: o non-switching: 100mA, 50Vdc o switching: 50mA, 24Vdc * circuit: single-pole single-throw * materials and finish: o case: UL94-VO, PBT. PBT is glass-fibre reinforced o cover: UL94-VO, PBT. PBT is glass-fibre reinforced o actuators: UL94-VO, PBT. PBT is glass-fibre reinforced o terminals: phosphor bronze with 3 micro inches of gold plating over nickel o top seal: polyester film * electrical and mechanical specifications: o contact rating (carry): + (a): 50Vdc 100mA in constant situation + (b): 24Vdc 50mA with make-and-break o contact resistance (at current 100mA): + (a): initially max. 30mohm + (b): 100mohm max. after life test o insulation resistance (at voltage 500Vdc): min. 1000Mohm between adjacent terminals o capacitance: 5pF between adjacent terminals o dielectric breakdown voltage: 500Vdc / 1minute o operating temperature range: -40°C to +70°C, no failures o shock: DIP switches withstand a saw-tooth waveform of 20gr 11ms, with no contact opening > 10 microseconds o vibration: MIL-STD-202F-method 201A, frequency : 10-55-10Hz/1 min., direction : X, Y, Z three directions that are perpendicular to each other. No mechanical damage or intermittent change of switch setting during or after testing o markings: special side or top markings are optional * packing: o all DIP switches are shipped in standard IC tubes with all poles in the 'off' position
