REF : 01464
Si tratta di un contatto mecanico normalmente chiuso per proteggere porte, finestre, cassaforti. Con la sua sfera di grossa sezione, puಠadattarsi...
This contact can protect the opening of a small box. Very efficient when using for anti tamper of a security system. NO/NC 3A contact 220Vac for CA3
6A for the CA6.
Contatto autoprotezione 6a 220v braccio lungo ms12 l contatto contatti
REF : CA6
4,08 €
This contact can protect the opening of a small box. Very efficient when using for anti tamper of a security system. NO/NC 3A contact 220Vac for CA3
6A for the CA6.
:
424 Articoli
Emplacement : -()R6I4
Specifications
contact resistance : initially max. 15mohm
insulation resistance : min. 100Mohm (at 500Vdc)
dielectric strength : 1000Vac for 1 minute
mechanical life : min. 1000000 operations
electrical life : min. 100000 operations (full load)

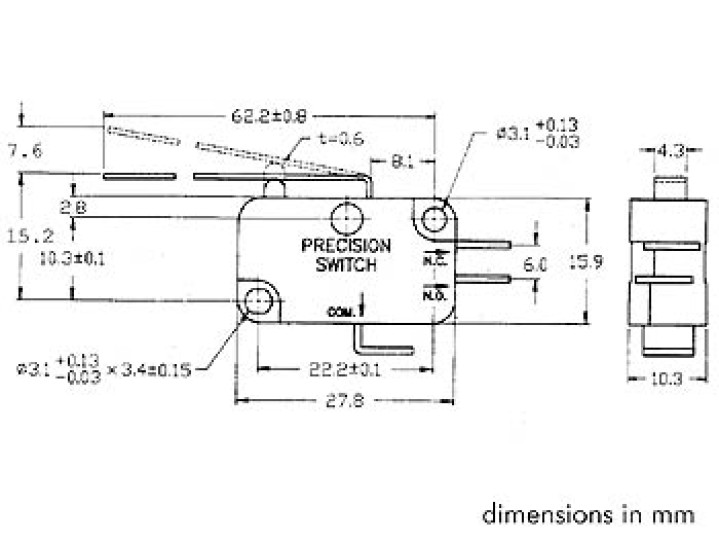

Dimension : 15.9 x 27.8 x 10.3mm
ratings : 12A / 125Vac, 6A / 250Vac
This contact can protect the opening of a small box. Very efficient when using for anti tamper of a security system. NO/NC 3A contact 220Vac for CA3 6A for the CA6.
This contact can protect the opening of a small box. Very efficient when using for anti tamper of a security system. NO/NC 3A contact 220Vac for CA3 6A for the CA6.
