Transformateur moulé 230vac 12vac 25va 220v 12v alim transfo 240v 1120250m
REF : TM12V25VA
18,67 €
specifications
voltage : 1 x 12V
voltage : 1 x 12V
:
2 Produits
Emplacement : -()R10F1
specifications
voltage : 1 x 12V
Current: 1 x 2.083A
Insulation resistance : > 5Mohm / 500VDC
dielectric strength : > 5kV min.
designed for an ambient temperature of max . 40 ° C
materials thermal class E , max. 120 °
Protection against short-circuit to 3VA
possibility of thermal fuse protection
max. for class E: 95 ° C
Primary voltage : 230V ± 10% , 50/60Hz
secondary voltage tolerance : +7 % - 3 % at 230V and maximum load
sealing means perfect for wave bath
CE
creepage distances according to IEC742

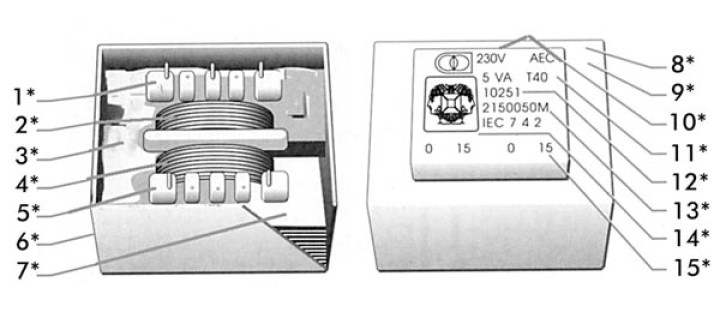

figure:
1 *: bobbin with two chambers
* 2 : primary winding
3 * : encapsulation in epoxy resin
* 4 : secondary winding
5 *: connection lugs
6 *: polyamide housing
7 *: magnetic core
8 *: safety transformer
* 9 : protected against short - circuits
10 *: primary voltage
11 *: power / temperature ratings
12 *: manufacturer's reference
13 *: order reference
* 14 : Registration :
15 *: nominal secondary voltages
